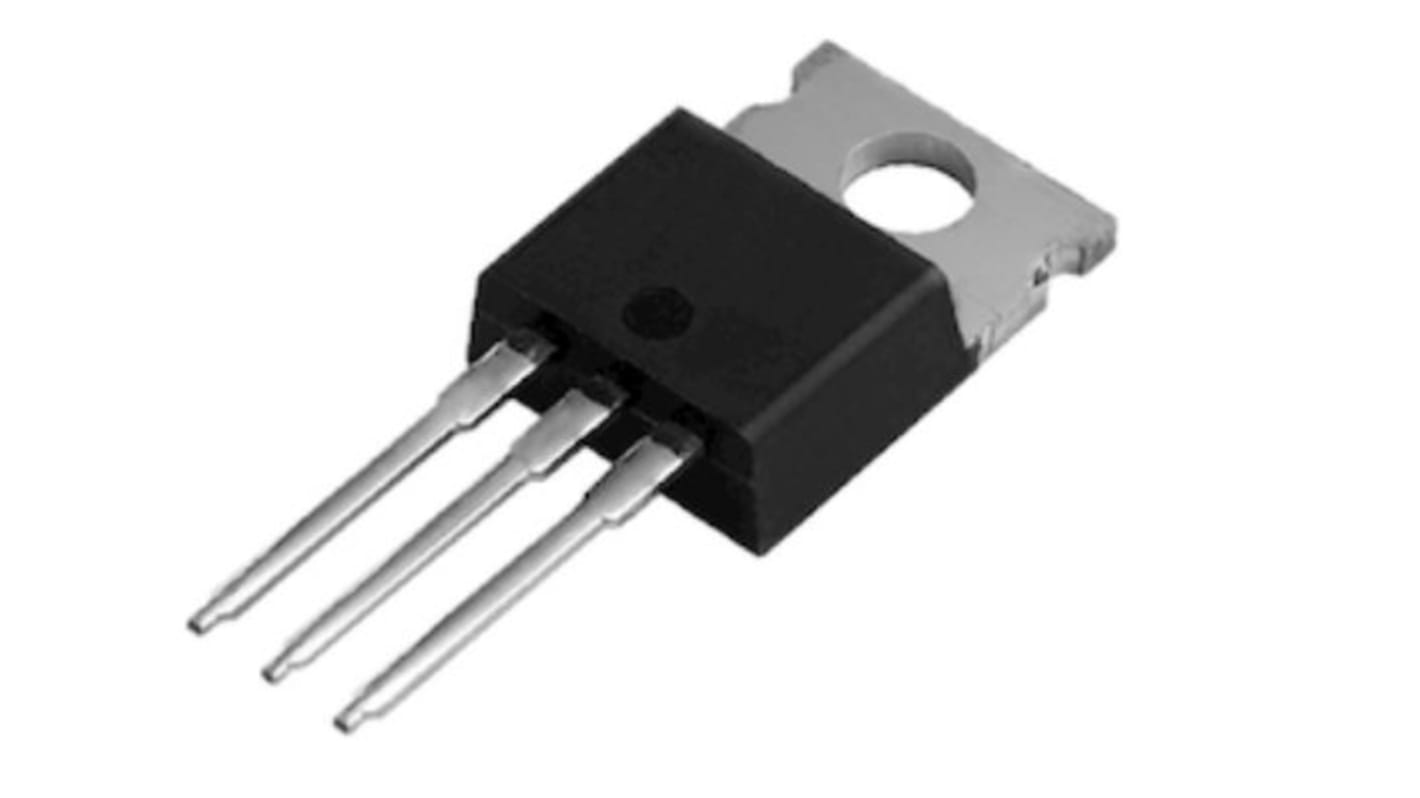

Vishay 100V 40A, Dual Schottky Rectifier & Schottky Diode, 3-Pin TO-220AB VX40M100CHM3/P
- RS Stock No.:
- 231-5446
- Mfr. Part No.:
- VX40M100CHM3/P
- Brand:
- Vishay
Available for back order.
Price (ex. GST) Each (In a Tube of 1000)
$2.124
(exc. GST)
$2.336
(inc. GST)
Units | Per unit | Per Tube* |
|---|---|---|
| 1000 - 4000 | $2.124 | $2,124.00 |
| 5000 + | $1.912 | $1,912.00 |
*price indicative
- RS Stock No.:
- 231-5446
- Mfr. Part No.:
- VX40M100CHM3/P
- Brand:
- Vishay
Technical data sheets
Legislation and Compliance
Product Details
The Vishay dual high voltage TMBS (Trench MOS Barrier Schottky) rectifier used in high frequency DC/DC converters, switching power supplies, freewheeling diodes, OR-ing diode, and reverse battery protection in commercial, industrial, and automotive applic
Trench MOS Schottky technology
Low forward voltage drop, low power losses
High efficiency operation
Low forward voltage drop, low power losses
High efficiency operation
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Mounting Type | Through Hole |
| Package Type | TO-220AB |
| Maximum Continuous Forward Current | 40A |
| Peak Reverse Repetitive Voltage | 100V |
| Diode Configuration | 2x Common Cathode Pair |
| Rectifier Type | Schottky Rectifier |
| Diode Type | Schottky |
| Pin Count | 3 |
| Number of Elements per Chip | 2 |
| Diode Technology | Schottky Barrier |
