Vishay 100 V 40 A Rectifier & Schottky Diode Schottky 3-Pin TO-220 VX40M100C-M3/P
- RS Stock No.:
- 231-5450
- Mfr. Part No.:
- VX40M100C-M3/P
- Brand:
- Vishay

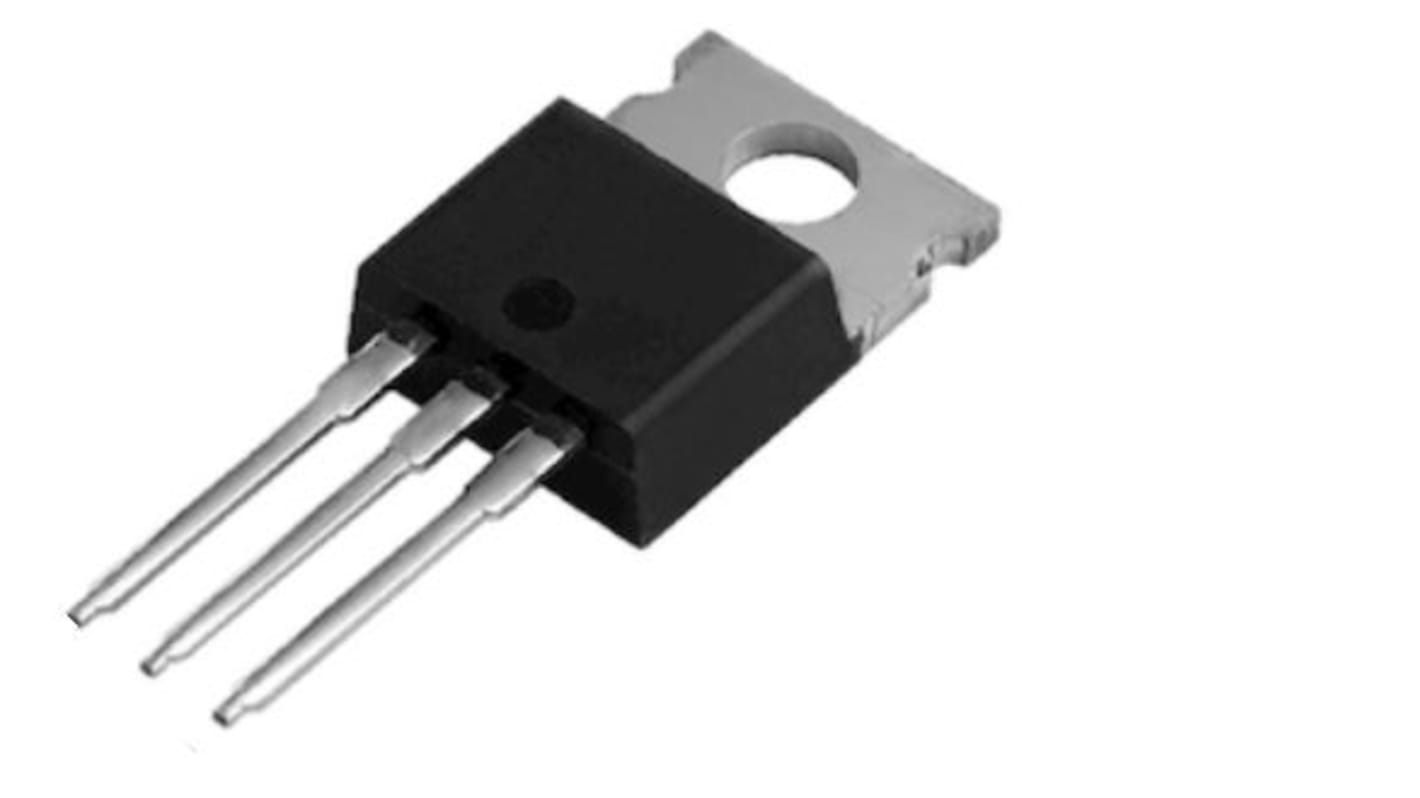

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 5 units)*
$18.82
(exc. GST)
$20.70
(inc. GST)
FREE delivery for orders over $60.00 ex GST
Last RS stock
- Final 1,915 unit(s), ready to ship from another location
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | $3.764 | $18.82 |
| 50 - 95 | $3.652 | $18.26 |
| 100 - 245 | $3.544 | $17.72 |
| 250 - 495 | $3.438 | $17.19 |
| 500 + | $3.332 | $16.66 |
*price indicative
- RS Stock No.:
- 231-5450
- Mfr. Part No.:
- VX40M100C-M3/P
- Brand:
- Vishay
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Mount Type | Through Hole | |
| Product Type | Rectifier & Schottky Diode | |
| Package Type | TO-220 | |
| Maximum Continuous Forward Current If | 40A | |
| Peak Reverse Repetitive Voltage Vrrm | 100V | |
| Diode Configuration | 2x Common Cathode Pair | |
| Rectifier Type | Schottky | |
| Pin Count | 3 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Forward Voltage Vf | 0.76V | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 250A | |
| Peak Reverse Current Ir | 0.22mA | |
| Maximum Operating Temperature | 175°C | |
| Length | 10.51mm | |
| Standards/Approvals | RoHS | |
| Height | 4.65mm | |
| Automotive Standard | AEC-Q102 | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Mount Type Through Hole | ||
Product Type Rectifier & Schottky Diode | ||
Package Type TO-220 | ||
Maximum Continuous Forward Current If 40A | ||
Peak Reverse Repetitive Voltage Vrrm 100V | ||
Diode Configuration 2x Common Cathode Pair | ||
Rectifier Type Schottky | ||
Pin Count 3 | ||
Minimum Operating Temperature -40°C | ||
Maximum Forward Voltage Vf 0.76V | ||
Peak Non-Repetitive Forward Surge Current Ifsm 250A | ||
Peak Reverse Current Ir 0.22mA | ||
Maximum Operating Temperature 175°C | ||
Length 10.51mm | ||
Standards/Approvals RoHS | ||
Height 4.65mm | ||
Automotive Standard AEC-Q102 | ||
The Vishay dual high voltage TMBS (Trench MOS Barrier Schottky) rectifier used in high frequency DC/DC converters, switching power supplies, freewheeling diodes, OR-ing diode, and reverse battery protection in commercial, industrial, and automotive applic
Trench MOS Schottky technology
Low forward voltage drop, low power losses
High efficiency operation
