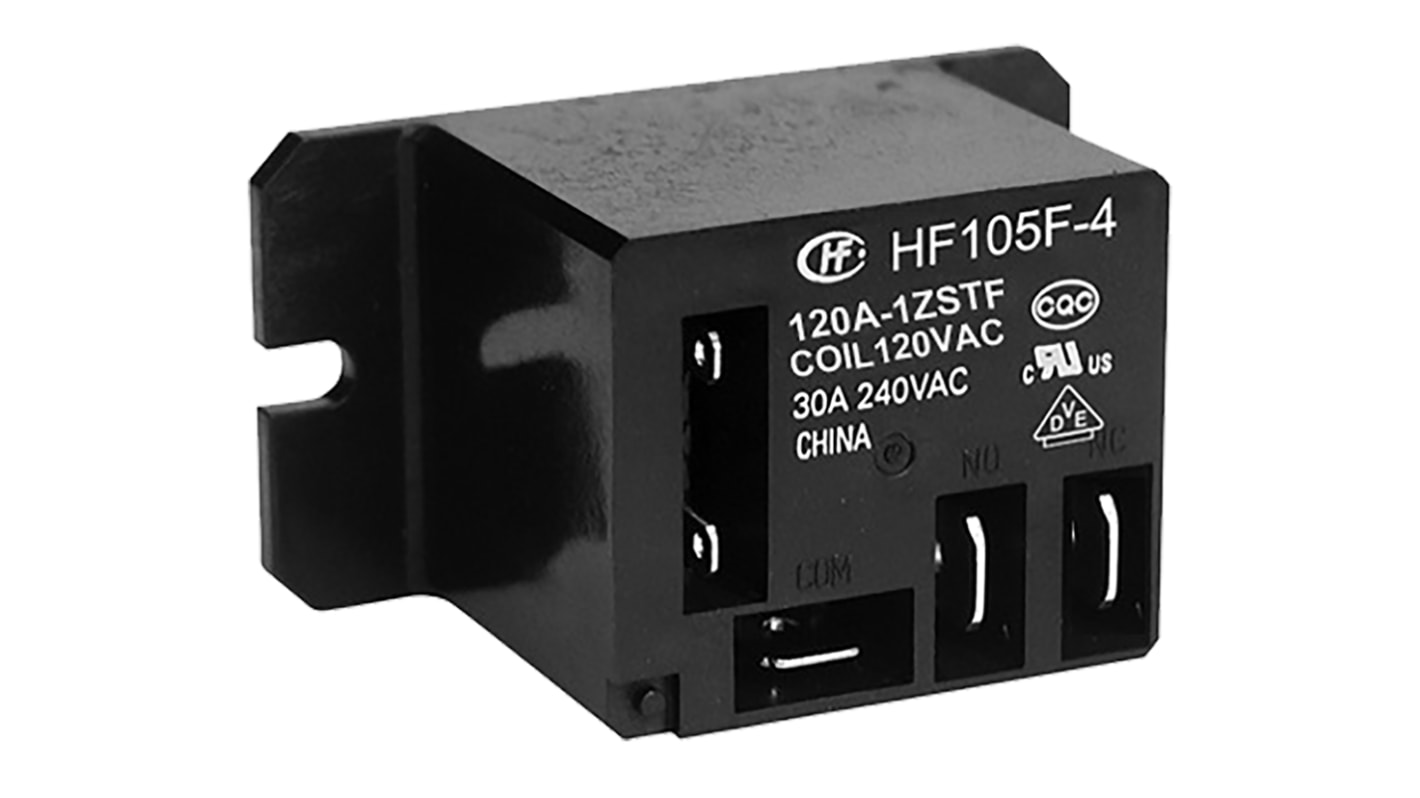

    Hongfa Europe GMBH Flange Mount Power Relay, 120V ac Coil, 20A Switching Current, SPDT

    Hongfa Europe GMBH
    RS Stock No.:
    121-8076
    Mfr. Part No.:
    HF105F-4/120A1ZSTF
    Brand:
    Hongfa Europe GMBH
    View all Power Relays
    29 In Global stock for delivery within 10 working day(s)
    Add to Basket
    units

    Added

    Price (ex. GST) Each

    $12.58

    (exc. GST)

    $13.84

    (inc. GST)

    unitsPer unit
    1 +$12.58
    RS Stock No.:
    121-8076
    Mfr. Part No.:
    HF105F-4/120A1ZSTF
    Brand:
    Hongfa Europe GMBH

    Technical data sheets


    Legislation and Compliance

    COO (Country of Origin):
    CN

    Product Details

    HF105F-4 Miniature High Power Relays


    HongFa HF105F-4 series miniature high-power relays. The HF105F-4 range feature 2.8 mm width coil terminals in a plastic sealed flange mount housing.

    Features and Benefits


    30 A switching capability
    AC and DC coil options available
    2.5 kV dielectric strength
    Heavy load up to 7200 VA
    Silver tin oxide terminals
    RoHS compliant


    Specifications

    AttributeValue
    Coil Voltage120V ac
    Contact ConfigurationSPDT
    Mounting TypeFlange Mount
    Switching Current20A
    Number of Poles1
    LatchingNo
    Terminal TypeQuick Connect
    Maximum Switching Voltage AC277V
    Maximum Switching Voltage DC28V dc
    Length50mm
    Coil Resistance2500Ω
    Coil Power2W
    Standards MetcULus
    Minimum Operating Temperature-55°C
    Height27.2mm
    Maximum Operating Temperature+60°C
    Isolation Coil To Contact2.5kV ac
    Life10000000 (Mechanical) operations
    Depth27.8mm
    Contact MaterialSilver Alloy
    Maximum Switching Power DC560 W
    Maximum Switching Power AC4.8 kVA
