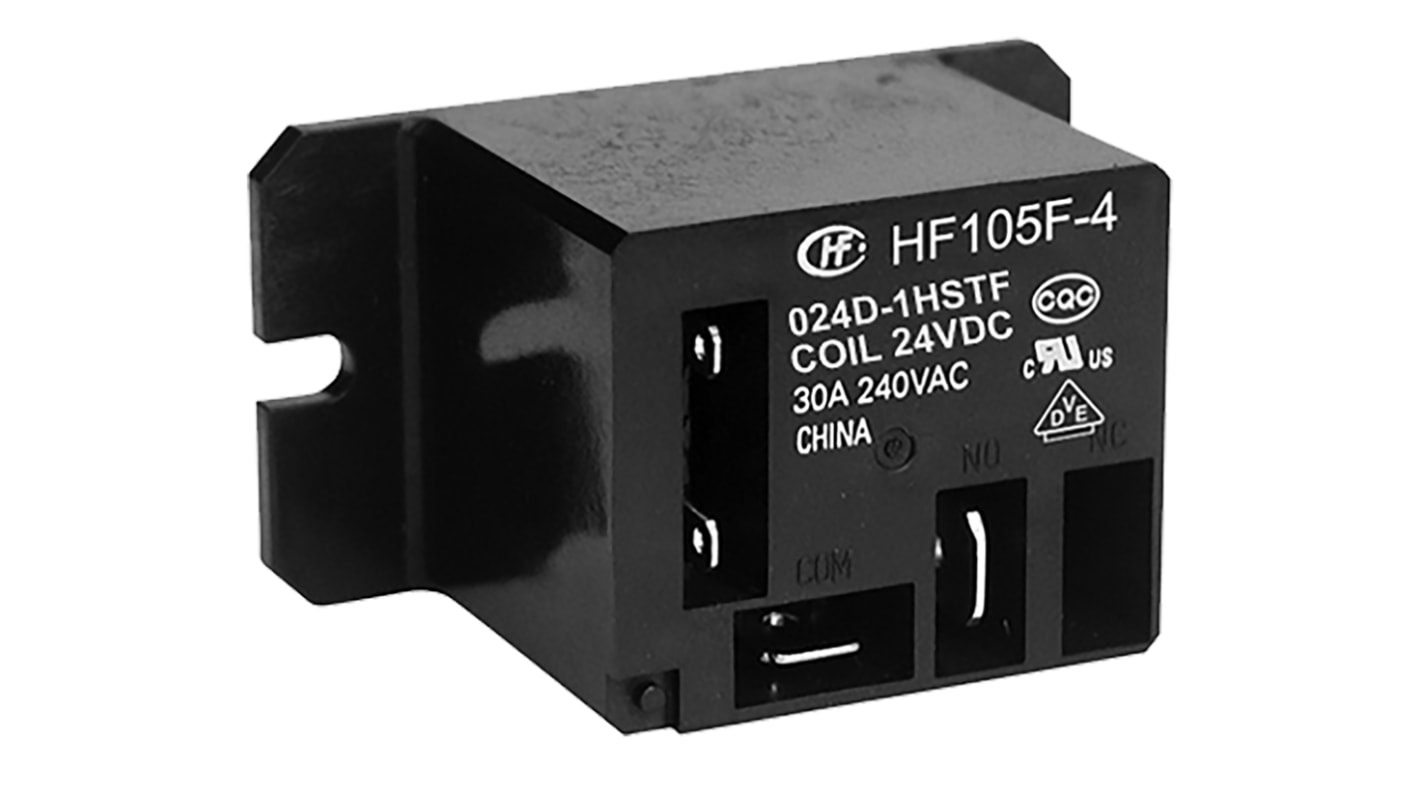

Hongfa Europe GMBH Flange Mount Power Relay, 24V dc Coil, 40A Switching Current, SPNO
- RS Stock No.:
- 121-8071
- Mfr. Part No.:
- HF105F-4/024D1HSTF
- Manufacturer:
- Hongfa Europe GMBH
View all Power Relays
48 In AU stock for next working day delivery
78 In Global stock for delivery within 10 working day(s)
Price (ex. GST) Each
$6.51
(exc. GST)
$7.16
(inc. GST)
| units | Per unit |
| 1 + | $6.51 |
- RS Stock No.:
- 121-8071
- Mfr. Part No.:
- HF105F-4/024D1HSTF
- Manufacturer:
- Hongfa Europe GMBH
- COO (Country of Origin):
- CN
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
HF105F-4 Miniature High Power Relays
HongFa HF105F-4 series miniature high-power relays. The HF105F-4 range feature 2.8 mm width coil terminals in a plastic sealed flange mount housing.
Features and Benefits
30 A switching capability
AC and DC coil options available
2.5 kV dielectric strength
Heavy load up to 7200 VA
Silver tin oxide terminals
RoHS compliant
Specifications
| Attribute | Value |
| Coil Voltage | 24V dc |
| Contact Configuration | SPNO |
| Mounting Type | Flange Mount |
| Switching Current | 40A |
| Latching | No |
| Number of Poles | 1 |
| Terminal Type | Quick Connect |
| Coil Resistance | 660Ω |
| Coil Power | 900mW |
| Maximum Switching Voltage AC | 277V |
| Maximum Switching Voltage DC | 28V |
| Length | 50mm |
| Standards Met | CQC, cULus, VDE |
| Depth | 27.8mm |
| Isolation Coil To Contact | 2.5kV ac |
| Height | 27.2mm |
| Maximum Switching Power AC | 7.2 kVA |
| Maximum Switching Power DC | 560 W |
