- RS Stock No.:
- 172-6490
- Mfr. Part No.:
- GRM188R6YA106MA73D
- Brand:
- Murata
8000 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (On a Reel of 4000)
$0.102
(exc. GST)
$0.112
(inc. GST)
Units | Per unit | Per Reel* |
4000 - 4000 | $0.102 | $408.00 |
8000 - 36000 | $0.099 | $396.00 |
40000 + | $0.089 | $356.00 |
*price indicative |
- RS Stock No.:
- 172-6490
- Mfr. Part No.:
- GRM188R6YA106MA73D
- Brand:
- Murata
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details

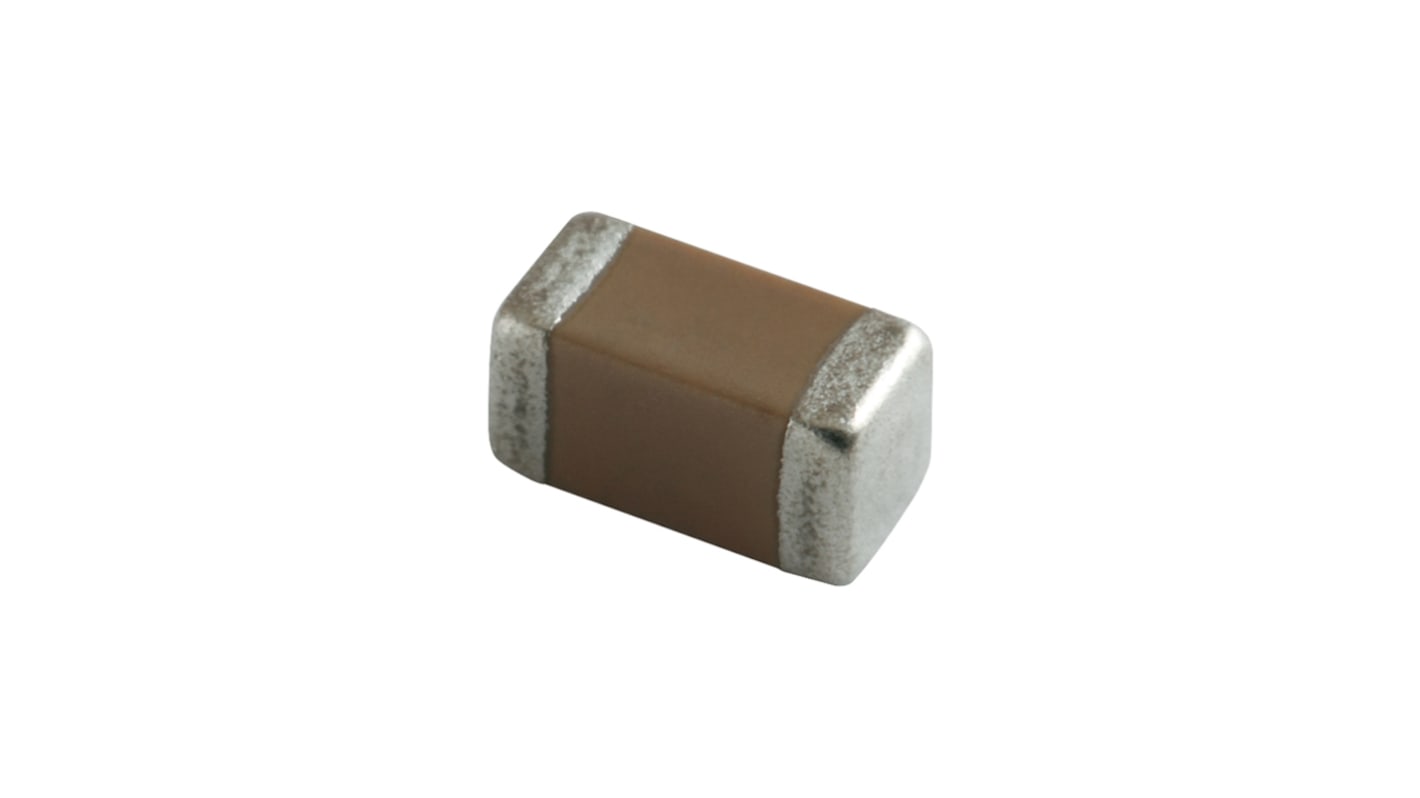

Murata 0603 (1608M) MLCC
The Murata 0603 (1608M) surface mount MLCC has a capacitance of 10μF. It has a solder type terminal. It is a high dielectric constant type capacitor, in a smaller size with a higher capacitance value. The GRM ceramic capacitor is available in C0G temperature coefficients and offers no polarity. This capacitor has a higher resistance of solder-leaching due to the Ni-barrier termination (applicable for reflow-soldering and flow-soldering). It offers high capacitance and high operating voltage levels. The GRM ceramic capacitor is ideal for use on diode-snubber circuits for switching power supplies and as a primary-secondary coupling for DC-DC converters.
Features and Benefits
Operating temperature ranges between -55°C and 85°C
Tolerance ±20%
Voltage rating is 35VDC
Tolerance ±20%
Voltage rating is 35VDC
Applications
Bypass capacitors
Filters
Op-amp circuits
Filters
Op-amp circuits
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Capacitance | 10µF |
Voltage | 35V dc |
Package/Case | 0603 (1608M) |
Mounting Type | Surface Mount |
Dielectric | X5R |
Tolerance | ±20% |
Dimensions | 1.6 x 0.8 x 0.8mm |
Length | 1.6mm |
Depth | 0.8mm |
Height | 0.8mm |
Series | GRM |
Terminal Type | Solder |
Minimum Operating Temperature | -55°C |
Maximum Operating Temperature | +85°C |
Suppression Class | X5R |
