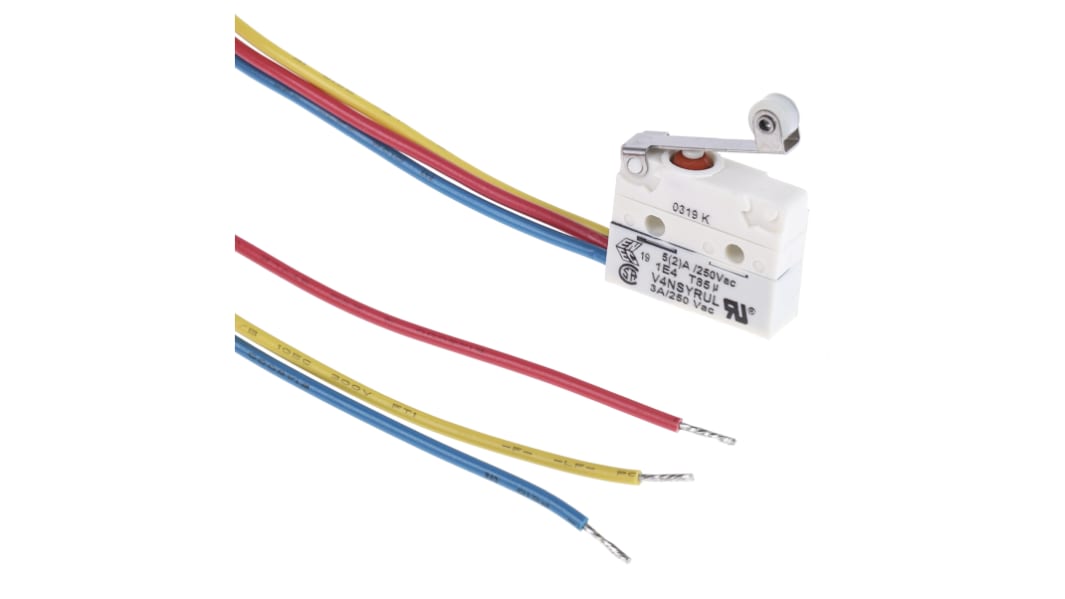

Saia-Burgess Roller Lever Micro Switch, Pre-wired Terminal, 3 A @ 250 V ac, SPDT, IP67
- RS Stock No.:
- 472-8291
- Distrelec Article No.:
- 135-82-418
- Mfr. Part No.:
- V4NSYRUL
- Brand:
- Saia-Burgess
Bulk discount available
Subtotal (1 unit)*
$13.26
(exc. GST)
$14.59
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- Plus 952 unit(s) shipping from 10 November 2025
- Plus 241 unit(s) shipping from 17 November 2025
- Plus 3,000 unit(s) shipping from 17 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 12 | $13.26 |
| 13 - 24 | $13.13 |
| 25 + | $12.90 |
*price indicative
- RS Stock No.:
- 472-8291
- Distrelec Article No.:
- 135-82-418
- Mfr. Part No.:
- V4NSYRUL
- Brand:
- Saia-Burgess
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Saia-Burgess | |
| Actuator Type | Roller Lever | |
| Terminal Type | Pre-wired | |
| Contact Current Rating | 3 A @ 250 V ac | |
| Contact Configuration | SPDT-NO/NC | |
| IP Rating | IP67 | |
| Operating Force | 0.9 N | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +85°C | |
| Contact Material | Fine Silver | |
| Case Material | Glass Fibre Reinforced Nylon | |
| Mechanical Life | 5000000Operations | |
| Release Force | 0.07N | |
| Operating Temperature Range | -40 → +85°C | |
| Select all | ||
|---|---|---|
Brand Saia-Burgess | ||
Actuator Type Roller Lever | ||
Terminal Type Pre-wired | ||
Contact Current Rating 3 A @ 250 V ac | ||
Contact Configuration SPDT-NO/NC | ||
IP Rating IP67 | ||
Operating Force 0.9 N | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
Contact Material Fine Silver | ||
Case Material Glass Fibre Reinforced Nylon | ||
Mechanical Life 5000000Operations | ||
Release Force 0.07N | ||
Operating Temperature Range -40 → +85°C | ||
- COO (Country of Origin):
- PL
V4NS Sealed Sub-miniature Micro-switches
Sealed to IP67
SPCO contact configuation
UL94-V0 flame retardant housing
Dimensions: H10 x W6.5 x D20 (solder), H17 x W 6.5 x D20 (pre-wired)
Operating Temperature range: -40 to +85°C
SPCO contact configuation
UL94-V0 flame retardant housing
Dimensions: H10 x W6.5 x D20 (solder), H17 x W 6.5 x D20 (pre-wired)
Operating Temperature range: -40 to +85°C
Note
The Long Lever length is 60mm
Approvals
UL, CSA, ENEC
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
