Saia-Burgess Lever Micro Switch, Pre-Wired Terminal, 10 A, 250 V ac, SPDT, IP67
- RS Stock No.:
- 173-9359
- Mfr. Part No.:
- 43780
- Brand:
- Saia-Burgess

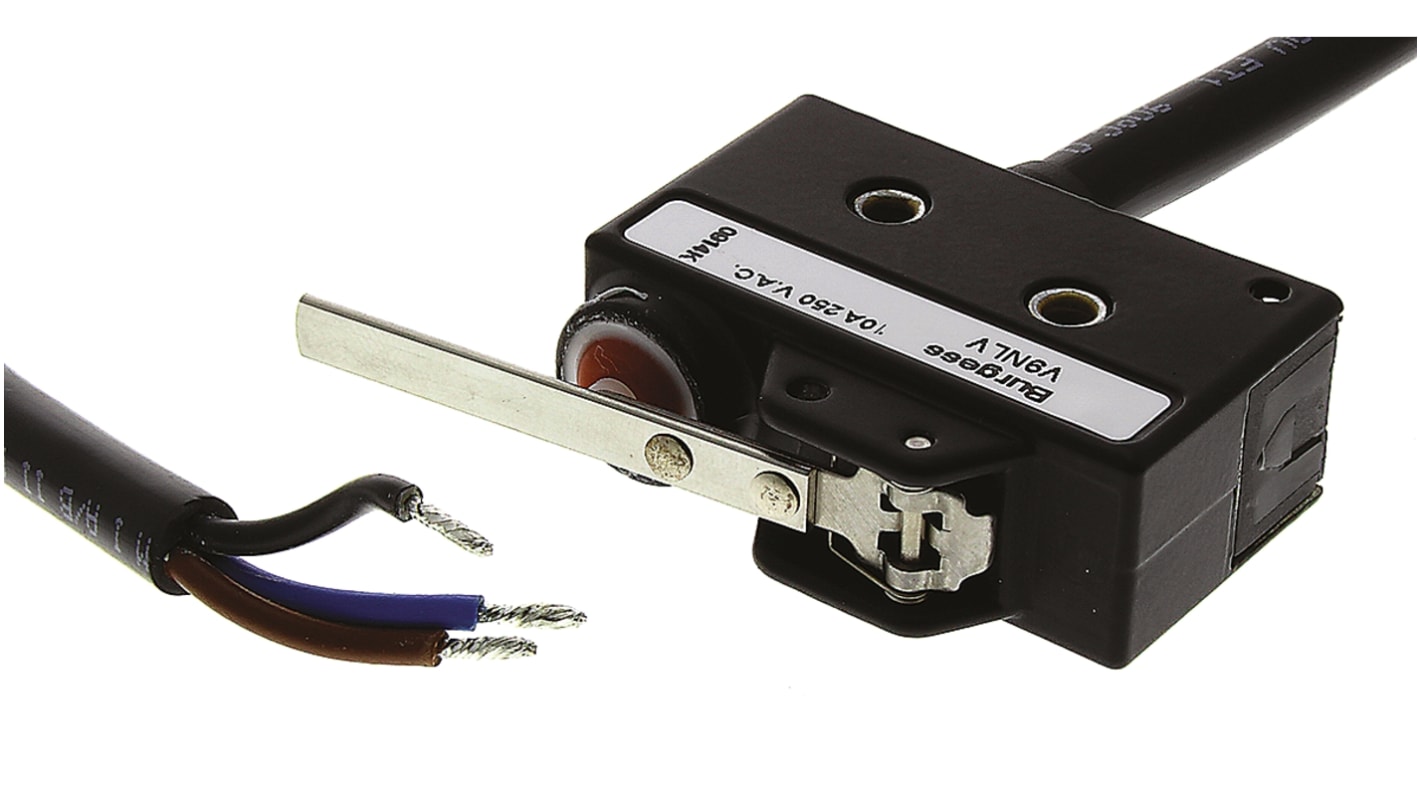

This image is representative of the product range
Bulk discount available
Subtotal (1 bag of 20 units)*
$2,098.42
(exc. GST)
$2,308.26
(inc. GST)
FREE delivery for orders over $60.00 ex GST
Temporarily out of stock
- 220 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 20 - 80 | $104.921 | $2,098.42 |
| 100 + | $94.429 | $1,888.58 |
*price indicative
- RS Stock No.:
- 173-9359
- Mfr. Part No.:
- 43780
- Brand:
- Saia-Burgess
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Saia-Burgess | |
| Product Type | Micro Switch | |
| Actuator Type | Lever | |
| Terminal Type | Pre-Wired | |
| Switch Contact Current | 10 A | |
| Contact Configuration | SPDT | |
| Housing Material | Zinc | |
| IP Rating | IP67 | |
| Operating Force | 3N | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 85°C | |
| Contact AC Voltage | 250V ac | |
| Microswitch Type | Snap Action | |
| Width | 29 mm | |
| Mechanical Life | 10Operations | |
| Standards/Approvals | CSA, UL | |
| Depth | 53mm | |
| Select all | ||
|---|---|---|
Brand Saia-Burgess | ||
Product Type Micro Switch | ||
Actuator Type Lever | ||
Terminal Type Pre-Wired | ||
Switch Contact Current 10 A | ||
Contact Configuration SPDT | ||
Housing Material Zinc | ||
IP Rating IP67 | ||
Operating Force 3N | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 85°C | ||
Contact AC Voltage 250V ac | ||
Microswitch Type Snap Action | ||
Width 29 mm | ||
Mechanical Life 10Operations | ||
Standards/Approvals CSA, UL | ||
Depth 53mm | ||
- COO (Country of Origin):
- PL
SPDT & SPST-NC V9 Series
Metal body, IP67 sealed
Silver contacts
Mechanical Life: 106 operations
Operating temperature range: -40 to +125°C
Through-hole mounting
Earth kit provided
Dimensions: H21mm x W29mm x D53mm
Approvals
UL,CSA.
