Panasonic Simulated Roller Lever Micro Switch, PCB Terminal Terminal, 2 A, 125 V ac, 30 V dc, SPCO, IP50

RS Stock No.:: 173-8227
Mfr. Part No.:: ABJ151460
Brand:: Panasonic

Panasonic Simulated Roller Lever Micro Switch, PCB Terminal Terminal, 2 A, 125 V ac, 30 V dc, SPCO, IP50

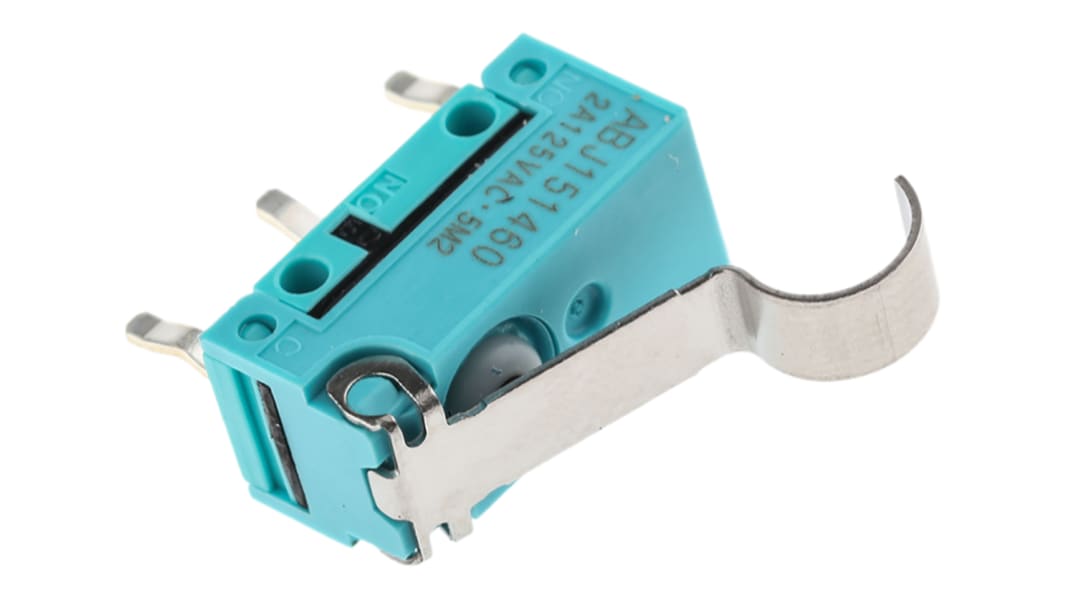

This image is representative of the product range

Bulk discount available

Subtotal (1 box of 100 units)*

$337.30

(exc. GST)

$371.00

(inc. GST)

FREE delivery for orders over $60.00 ex GST

Temporarily out of stock

Shipping from 16 July 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Box*
100 - 100	$3.373	$337.30
200 - 300	$3.298	$329.80
400 +	$3.228	$322.80

*price indicative

RS Stock No.:: 173-8227
Mfr. Part No.:: ABJ151460
Brand:: Panasonic

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Panasonic
	Product Type	Micro Switch
	Actuator Type	Simulated Roller Lever
	Terminal Type	PCB Terminal
	Switch Contact Current	2 A
	Contact Configuration	SPCO
	IP Rating	IP50
	Operating Force	0.64N
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Microswitch Type	Ultra Miniature
	Contact DC Voltage	30V dc
	Contact AC Voltage	125V ac
	Hazardous Area Certification	No
	Length	12.8mm
	Depth	6mm
	Mechanical Life	10Operations
	Standards/Approvals	CSA, RoHS, UR
	Series	ABJ

	Select all
	Brand Panasonic
	Product Type Micro Switch
	Actuator Type Simulated Roller Lever
	Terminal Type PCB Terminal
	Switch Contact Current 2 A
	Contact Configuration SPCO
	IP Rating IP50
	Operating Force 0.64N
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Microswitch Type Ultra Miniature
	Contact DC Voltage 30V dc
	Contact AC Voltage 125V ac
	Hazardous Area Certification No
	Length 12.8mm
	Depth 6mm
	Mechanical Life 10Operations
	Standards/Approvals CSA, RoHS, UR
	Series ABJ

Turquiise Switches ABJ Type Data Sheet

COO (Country of Origin):: JP

Panasonic Micro Switch

The Panasonic ABJ series ultra-miniature sealed is a single pole double throw (SPDT) microswitch. It operates by using a spring-loaded lever to open and close a set of internal contacts inside the unit. It has a simulated roller lever actuator. It requires a 65gf operating force to energize the spring. The operating current rating is 2A.

Features and Benefits

• Compact design and pc pin terminal

• High-performance

• Low cost

• Operating temperature ranges between -55°C and 85°C

• Silver and nickel alloy are used as contact material

• Through hole type mounting

• Up to 1,000,000 machine life cycles

• Voltage rating is 125VAC

Applications

• Automotive

• Used as a video jack

Certifications

• IP50 rating

• IP67 rating

ABJ Type Ultra-miniature Turquoise Microswitch

The ABJ series ultra-miniature sealed switches offer an IP67 degree of protection for the pre-wired type and are available in many variations to suit your application's needs.
