Panasonic Simulated Roller Lever Micro Switch, Solder Terminal, 100 mA @ 30 V dc, SP-CO, IP40

RS Stock No.:: 699-0518
Mfr. Part No.:: AVT324261
Brand:: Panasonic

Panasonic Simulated Roller Lever Micro Switch, Solder Terminal, 100 mA @ 30 V dc, SP-CO, IP40

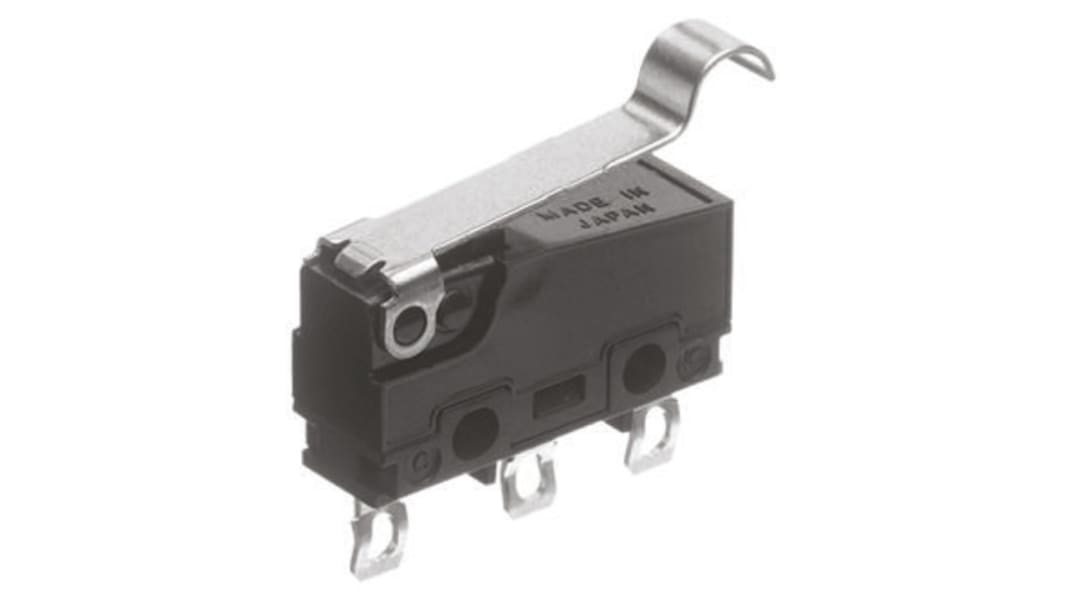

This image is representative of the product range

2 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$2.31

(exc. GST)

$2.54

(inc. GST)

Units	Per unit
1 - 24	$2.31
25 - 49	$2.27
50 +	$2.25

RS Stock No.:: 699-0518
Mfr. Part No.:: AVT324261
Brand:: Panasonic

Technical data sheets

AV(FS.FS-T)Switches Data Sheet

Legislation and Compliance

COO (Country of Origin):: TH

Product Details

AVT Sub-miniature High Precision Switches (FS-T version)

These subminiature high precision microswitches have are of a flux resistant construction and are available with a variety of actuator and terminal styles. Typical applications include communication equipment, vending machines, security systems, data systems and medical equipment.

Cross line terminals
Flux-resistant construction
Integrally moulded terminals
Common pitch, right angle, left angle terminals for PC board

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Specifications

Attribute	Value
Actuator Type	Simulated Roller Lever
Terminal Type	Solder
Contact Current Rating	100 mA @ 30 V dc
Contact Configuration	SPDT
IP Rating	IP40
Operating Force	0.16 N
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+85°C
Contact Material	Triple Clad Gold
Mechanical Life	5 x 10^5Operations
Release Force	0.015N
Operating Temperature Range	-25 → +85°C
