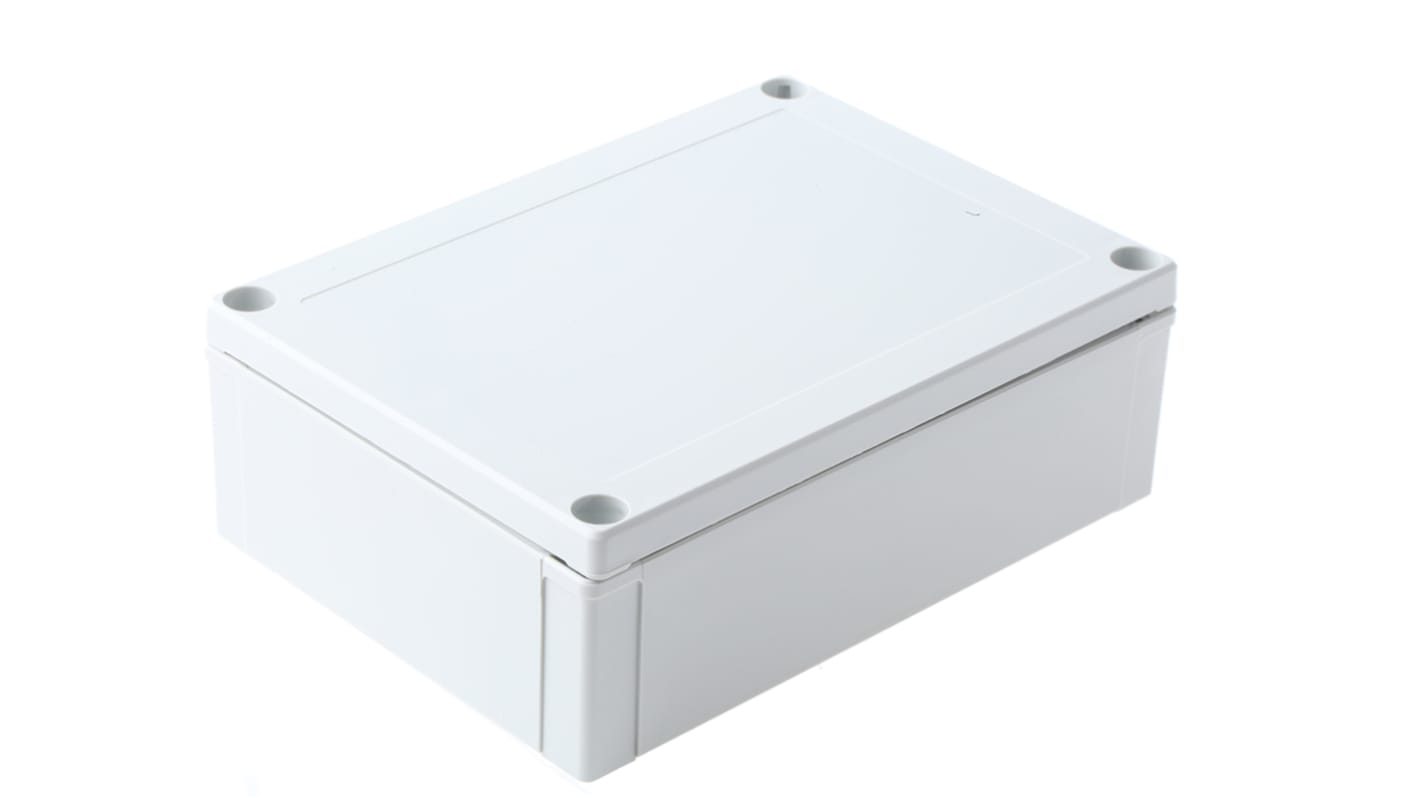

    Fibox MNX Series Grey Polycarbonate Enclosure, IP66, IP67, Grey Lid, 180 x 130 x 60mm

    RS Stock No.:
    289-6308
    Mfr. Part No.:
    PC 150/60 HG enclosure
    Manufacturer:
    Fibox
    Fibox
    View all General Purpose Enclosures
    29 In AU stock for next working day delivery
    217 In Global stock for delivery within 10 working day(s)
    Add to Basket
    units

    Added

    Price (ex. GST) Each

    $55.22

    (exc. GST)

    $60.74

    (inc. GST)

    unitsPer unit
    1 +$55.22
    RS Stock No.:
    289-6308
    Mfr. Part No.:
    PC 150/60 HG enclosure
    Manufacturer:
    Fibox
    COO (Country of Origin):
    FI

    Technical data sheets


    Legislation and Compliance

    COO (Country of Origin):
    FI

    Product Details

    Fibox MNX Enclosures


    The MNX range of enclosures are a perfect choice to housing electronic systems and components. These polycarbonate light grey (RAL 7035) enclosures have an IP66 & IP67 certified protection allowing you to work safely and making the enclosures reliable under difficult working environmental conditions. These MNX series enclosures are available in vary of different sizes to accommodate your everyday applications.


    Features & Benefits


    • Light Grey finish
    • Electrical Insulated
    • IP66/67 and IK08 protection
    • Temperature -40°C to +80°C
    • Single door
    • Installation position - Upright on a wall, pole or frame
    • Flammability Rating - UL 746C 5"
    • UV resistance - UL508


    (IP) Ingress Protection


    IP rating classifies the degrees of protection provided against the intrusion of solid objects (including body parts like hands and fingers), dust, accidental contact, and water in electrical enclosures.

    IP66 - Dust and water protection
    IP67 - immersed in water under defined conditions of pressure and time (up to 1m of submersion)


    (IK) Impact Protection


    The IK rating reflects degrees of protection provided by enclosures for electrical equipment against external mechanical impacts. For more information please click on The Selection Process of an Enclosure.

    IK08 - Protected against 5 joules impact. Equivalent to impact of 1.7 kg mass dropped from 300 mm above impacted surface.


    Approvals

    NEMA 1,4, 4X, 6

    Approvals

    NEMA 4, 4X, 12; UL 94-V2 (USA); IP 67; UL 94-V2 (Euro); IEC 529 (Others)


    Specifications

    AttributeValue
    Body MaterialPolycarbonate
    External Length180 mm
    External Height60 mm
    External Width130 mm
    External Dimensions180 x 130 x 60mm
    IP RatingIP66, IP67
    ColourGrey
    Lid ColourGrey
    ShieldedNo
    SeriesMNX
