Schurter 16A Panel Mount Fuse Holder for 5 x 20mm Fuse, 1P, 250V ac

RS Stock No.:: 337-1989
Mfr. Part No.:: 3101.0125
Brand:: Schurter

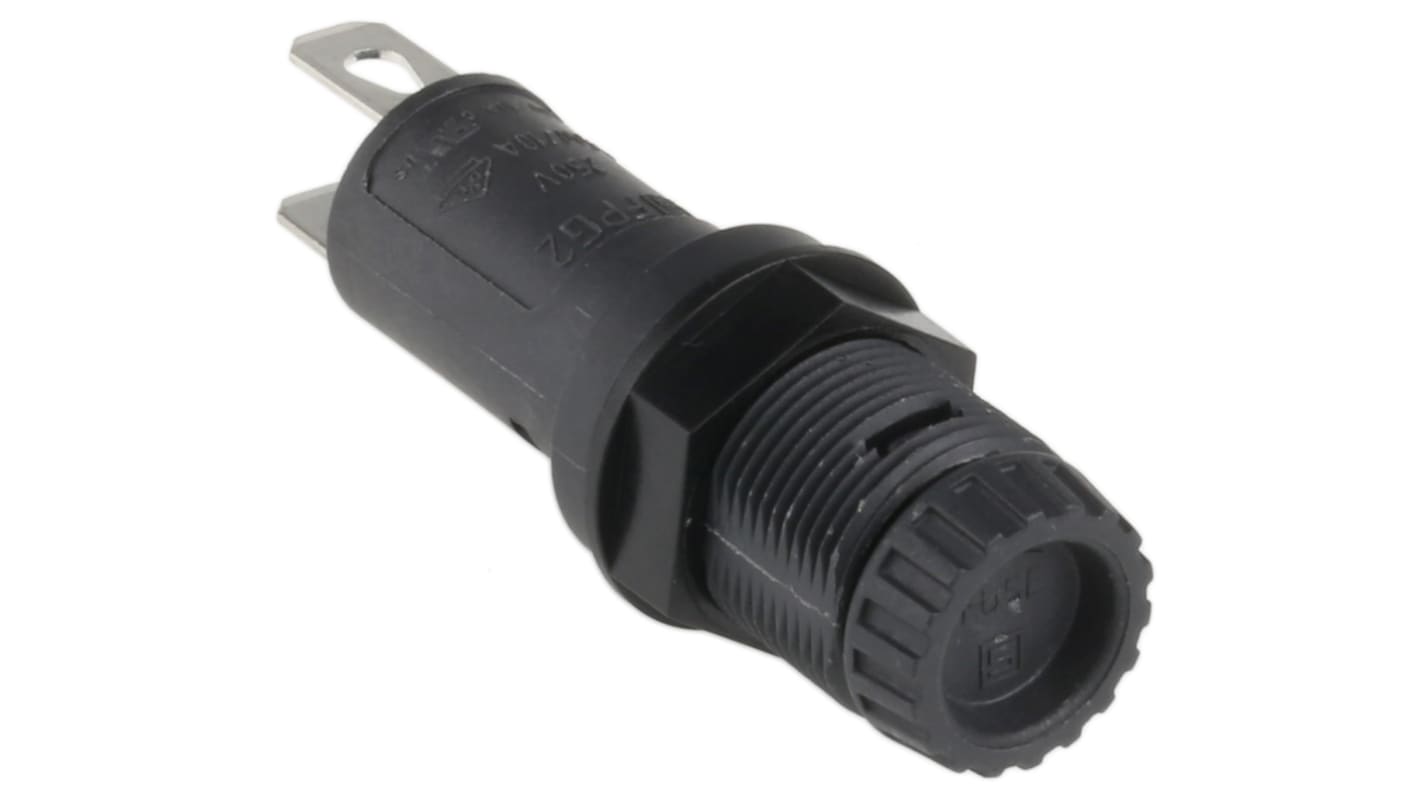

Schurter 16A Panel Mount Fuse Holder for 5 x 20mm Fuse, 1P, 250V ac

This image is representative of the product range

Bulk discount available

Subtotal (1 pack of 5 units)**

$60.12

(exc. GST)

$66.13

(inc. GST)

90 In AU stock for next working day delivery*

260 In Global stock for delivery within 10 working day(s)

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $60.00 ex GST

Real time qty checker

Units	Per unit	Per Pack**
5 - 20	$12.024	$60.12
25 - 45	$11.878	$59.39
50 +	$11.666	$58.33

**price indicative

RS Stock No.:: 337-1989
Mfr. Part No.:: 3101.0125
Brand:: Schurter

Schurter 5x20mm Fuseholders – FPG Series

Schurter FPG series fuseholders are a robust and dependable solution to a range of fuse requirements. Available with either a slotted or fingergrip plug, the Schurter FPG fuseholder series offers increased versatility of choice. Applications include industrial electronics, household appliances and medical equipment.

Terminals: 4.8x0.5mm
Protection: PC2
Sealed from the rear
Thermoplastic body
Tin-plated brass contacts

Approvals

UL & CSA (16A/250V), VDE & SEMKO (10/250V)

Schurter FPG2 Series Manual Cap Panel Mount Fuse Holder

The Schurter FPG2 series 16A panel mount fuse holder offers current and voltage rating of 16A and 250VAC respectively. The body of this holder is made of thermoplastic material and tin plated copper alloy is used for contact. It has screw type fuse carriers.

Features and Benefits

• Compact design
• Compatible fuse dimension is 5mmx20mm
• Low insertion resistance due to contact material
• Sealed from the rear
• Solder terminal type

Applications

• Household appliances
• Industrial electronics
• Medical equipment

Certifications

• CSA certified
• IEC60127-6 certified
• IP40 rated
• IP67 rated
• UL 4248-1 approved
• VDE approved

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

Panel Mounting

CATEGORIES OF PROTECTION AGAINST ELECTRIC SHOCK,PC1: No integral protection against electric shock. If required, designers must provide additional protection against electric shock on equipment.,PC2: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 standard test finger, when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.,PC3: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 1mm diameter rigid test wire when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Schurter
	Fuse Holder Type	Panel Mount
	Fuse Size	5 x 20mm
	Current Rating	16A
	Voltage Rating	250V ac
	Number of Poles	1P
	Includes Indicator	No
	Gauge Piece Colour	Black
	International Protection Rating	IP67
	Protection Category	PC2
	Compatible Fuse Diameter	5mm
	Contact Material	Tin Plated Copper Alloy
	Terminal Type	Solder
	Compatible Fuse Length	20mm
	Cap Style	Manual
	Series	FPG2

	Select all
	Brand Schurter
	Fuse Holder Type Panel Mount
	Fuse Size 5 x 20mm
	Current Rating 16A
	Voltage Rating 250V ac
	Number of Poles 1P
	Includes Indicator No
	Gauge Piece Colour Black
	International Protection Rating IP67
	Protection Category PC2
	Compatible Fuse Diameter 5mm
	Contact Material Tin Plated Copper Alloy
	Terminal Type Solder
	Compatible Fuse Length 20mm
	Cap Style Manual
	Series FPG2
