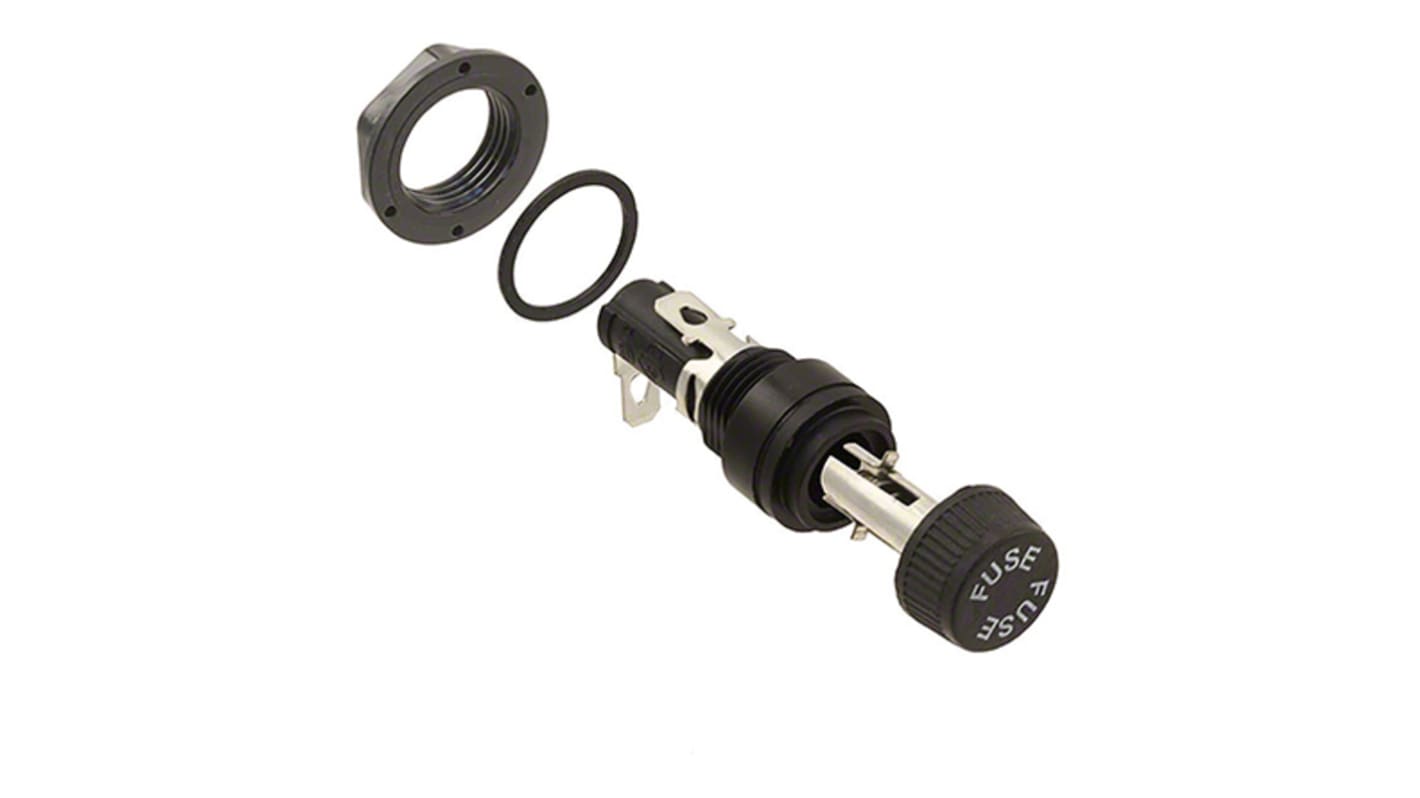

Eaton 16A Panel Mount Fuse Holder for 5 x 20mm Fuse, 1P, 250V ac

RS Stock No.:: 852-6945
Mfr. Part No.:: HTB-44M-R
Brand:: Eaton

Eaton 16A Panel Mount Fuse Holder for 5 x 20mm Fuse, 1P, 250V ac

Bulk discount available

Subtotal (1 unit)**

$22.41

(exc. GST)

$24.65

(inc. GST)

17 In AU stock for next working day delivery*

10 In Global stock for delivery within 5 working day(s)

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $60.00 ex GST

Real time qty checker

Units	Per unit
1 - 9	$22.41
10 - 24	$21.29
25 - 49	$20.21
50 - 249	$19.19
250 +	$18.24

**price indicative

RS Stock No.:: 852-6945
Mfr. Part No.:: HTB-44M-R
Brand:: Eaton

Eaton HTB Series Panel Mount Fuse Holder, 16A Current Rating, 250V AC Voltage Rating - HTB-44M-R

This panel mount fuse holder is designed to accommodate 5 x 20 mm fuses, offering reliable protection in electrical circuits. With a current rating of 16A and a voltage rating of 250V AC, it is well-suited for various applications in the automation and electrical industries. The holder is constructed from high-quality materials, ensuring durability during operation.

Features & Benefits

• Manual cap style provides easy access for fuse replacement
• Quick connect terminals facilitate straightforward installation
• Manufactured with tin-plated brass for optimal conductivity
• High-temperature thermoplastic ensures reliability in diverse environments

Applications

• Used in electrical panels for circuit protection
• Suitable for devices requiring a 16A fuse holder
• Ideal for demanding quick connect functionality
• Applied across various automation, electronic, and mechanical systems

What are the temperature limits for operating this component?

The component operates effectively within a temperature range of -55°C to +85°C, making it suitable for both extreme cold and heat environments.

Can this holder accommodate different fuse sizes?

Yes, it is designed to accept both 5 x 20 mm and 6.35mm x 31.75mm fuse sizes, providing flexibility for various usage scenarios.

Is this product resistant to environmental factors?

The holder is rated IP53, offering protection against dust and water splashes, making it suitable for less harsh environments.

How secure is the mounting of this fuse holder?

It can withstand up to 15 Lb-In torque when mounted, ensuring a stable and secure installation.

Note

Eaton formerly known as Bussmann

Panel Mounting

CATEGORIES OF PROTECTION AGAINST ELECTRIC SHOCK,PC1: No integral protection against electric shock. If required, designers must provide additional protection against electric shock on equipment.,PC2: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 standard test finger, when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.,PC3: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 1mm diameter rigid test wire when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Fuse Holder Type	Panel Mount
	Fuse Size	5 x 20mm
	Current Rating	16A
	Voltage Rating	250V ac
	Number of Poles	1P
	Includes Indicator	No
	Compatible Fuse Diameter	5mm
	Cap Style	Manual
	Series	HTB
	Compatible Fuse Length	20mm
	Standards Met	CE, CSA Certified, RoHS Compliant, SEMKO Certification, UL Recognized, VDE Certified
	Terminal Type	Quick Connect, Solder
	Contact Material	Tin Plated Brass

	Select all
	Brand Eaton
	Fuse Holder Type Panel Mount
	Fuse Size 5 x 20mm
	Current Rating 16A
	Voltage Rating 250V ac
	Number of Poles 1P
	Includes Indicator No
	Compatible Fuse Diameter 5mm
	Cap Style Manual
	Series HTB
	Compatible Fuse Length 20mm
	Standards Met CE, CSA Certified, RoHS Compliant, SEMKO Certification, UL Recognized, VDE Certified
	Terminal Type Quick Connect, Solder
	Contact Material Tin Plated Brass
