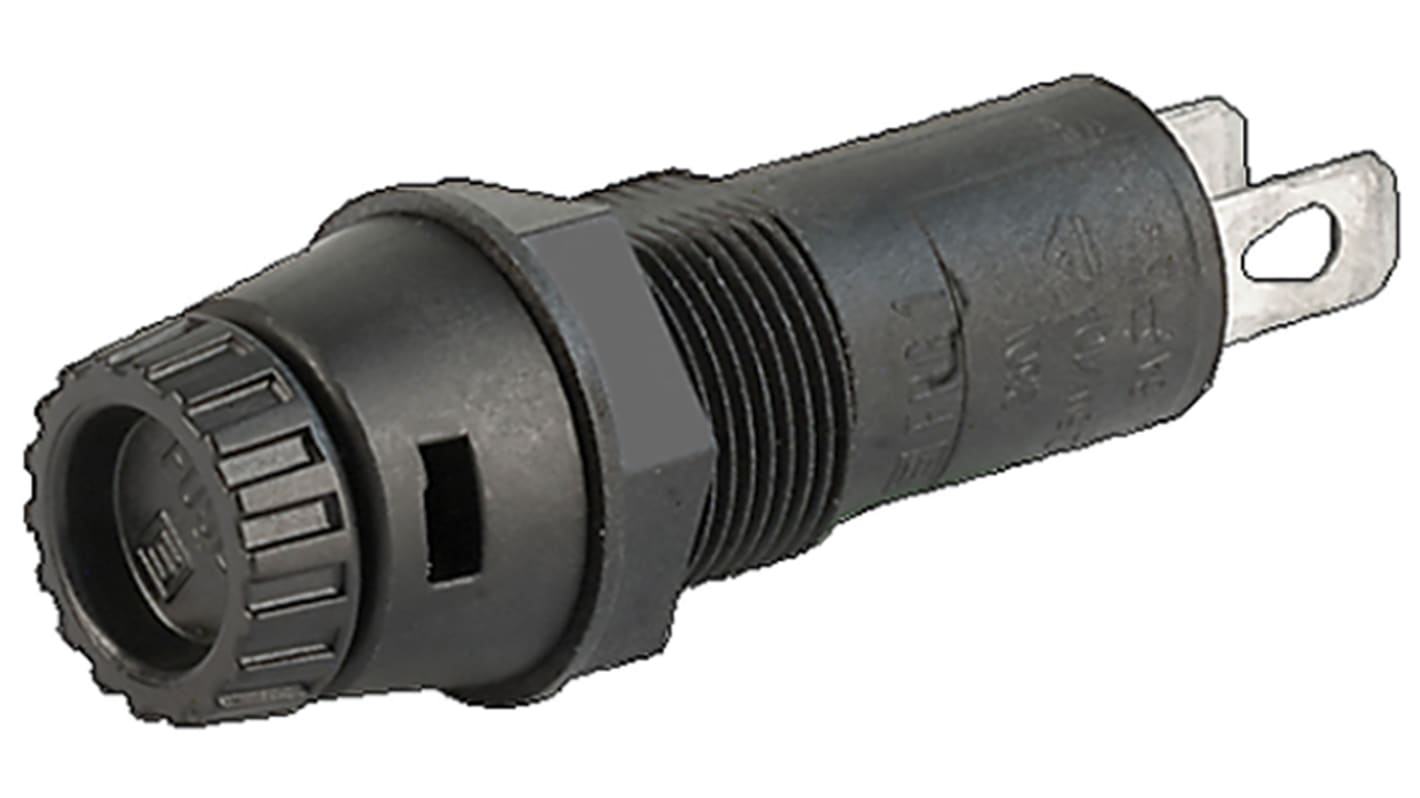

Schurter 10A Panel Mount Fuse Holder for 5 x 20mm Fuse, 1P, 400V ac
- RS Stock No.:
- 867-4365
- Mfr. Part No.:
- 3101.0215
- Brand:
- Schurter
770 In Global stock for delivery within 10 working day(s)
Price (ex. GST) Each (In a Pack of 10)
$6.693
(exc. GST)
$7.362
(inc. GST)
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | $6.693 | $66.93 |
*price indicative
- RS Stock No.:
- 867-4365
- Mfr. Part No.:
- 3101.0215
- Brand:
- Schurter
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CH
Product Details
Schurter 5x20mm Fuseholders – FPG Series
Schurter FPG series fuseholders are a robust and dependable solution to a range of fuse requirements. Available with either a slotted or fingergrip plug, the Schurter FPG fuseholder series offers increased versatility of choice. Applications include industrial electronics, household appliances and medical equipment.
Terminals: 4.8x0.5mm
Protection: PC2
Sealed from the rear
Thermoplastic body
Tin-plated brass contacts
Protection: PC2
Sealed from the rear
Thermoplastic body
Tin-plated brass contacts
Approvals
UL & CSA (16A/250V), VDE & SEMKO (10/250V)
Panel Mounting
CATEGORIES OF PROTECTION AGAINST ELECTRIC SHOCK,PC1: No integral protection against electric shock. If required, designers must provide additional protection against electric shock on equipment.,PC2: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 standard test finger, when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.,PC3: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 1mm diameter rigid test wire when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.
Specifications
Attribute | Value |
|---|---|
| Fuse Holder Type | Panel Mount |
| Fuse Size | 5 x 20mm |
| Current Rating | 10 A, 16A |
| Voltage Rating | 400V ac |
| Number of Poles | 1P |
| Includes Indicator | No |
| Protection Category | PC2 |
| Contact Material | Tin Plated Copper Alloy |
| Compatible Fuse Length | 20mm |
| Compatible Fuse Sizes | Mini |
| International Protection Rating | IP40 |
| Compatible Fuse Diameter | 5mm |
| Series | FPG1 |
| Standards Met | cULus Recognised, IEC, RoHS Compliant, VDE |
| Terminal Type | Quick Connect |
| Cap Style | Finger Grip |
