TRACO POWER THM 6 DC/DC Converter, 5V dc/ 1.2 A, 18V dc Input, 9V Input 6 W, PCB, 90 °C Max Temp -40 °C Min Temp DIP

RS Stock No.:: 135-0561
Mfr. Part No.:: THM 6-1211
Brand:: TRACO POWER

TRACO POWER THM 6 DC/DC Converter, 5V dc/ 1.2 A, 18V dc Input, 9V Input 6 W, PCB, 90 °C Max Temp -40 °C Min Temp DIP

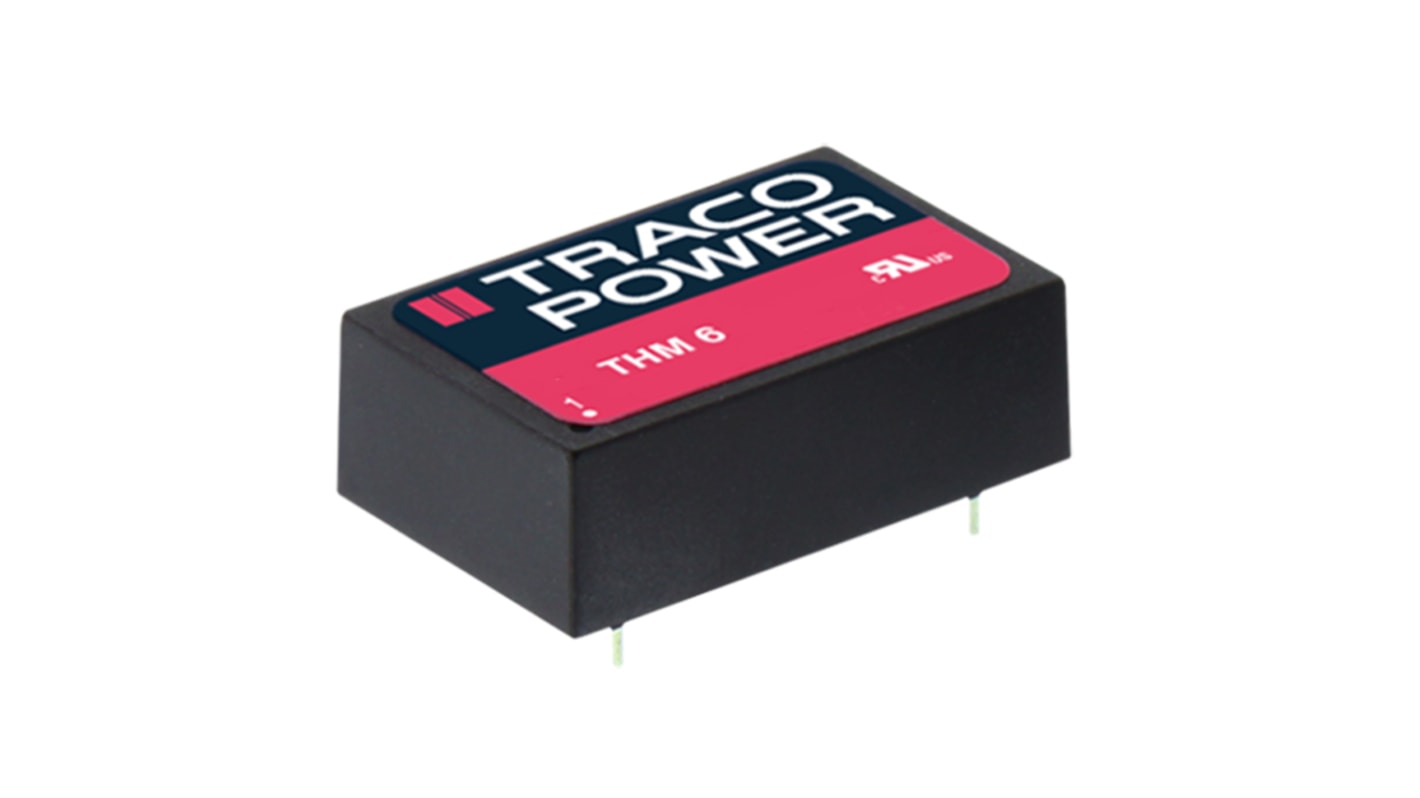

This image is representative of the product range

Get a bulk buy discount

Add 2 more to save 2%

View bulk pricing options

Subtotal (1 tube of 10 units)*

$622.12

(exc. GST)

$684.33

(inc. GST)

FREE delivery for orders over $80.00 ex GST

Temporarily out of stock

Shipping from 20 April 2027

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Tube(s)	Per Tube	Per unit*	Saving
1 - 1	$622.12	$62.212	-
2 - 3	$608.44	$60.844	2%
4 +	$595.39	$59.539	4%

*price indicative

RS Stock No.:: 135-0561
Mfr. Part No.:: THM 6-1211
Brand:: TRACO POWER

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	TRACO POWER
	Output Voltage 1	5V dc
	Product Type	DC/DC Converter
	Maximum Input Voltage	18V dc
	Minimum Input Voltage	9V
	Output Current 1	1.2A
	Mount Type	PCB
	Input Ratio	2:1
	Number of Outputs	1
	MTBF	4700000h
	Output Voltage Adjustment Range	-10 → 20 %
	Ripple and Noise	50mV Pk-Pk
	Isolation Voltage	5kV ac
	Maximum Output Power	6W
	Package Type	DIP
	Series	THM 6
	Width	20.3mm
	Standards/Approvals	REACH, IEC, ANSI, RoHS, ISO, EN, UL
	Weight	14g
	Depth	10.2mm
	Length	31.8mm
	Efficiency	86%
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	90°C

	Select all
	Brand TRACO POWER
	Output Voltage 1 5V dc
	Product Type DC/DC Converter
	Maximum Input Voltage 18V dc
	Minimum Input Voltage 9V
	Output Current 1 1.2A
	Mount Type PCB
	Input Ratio 2:1
	Number of Outputs 1
	MTBF 4700000h
	Output Voltage Adjustment Range -10 → 20 %
	Ripple and Noise 50mV Pk-Pk
	Isolation Voltage 5kV ac
	Maximum Output Power 6W
	Package Type DIP
	Series THM 6
	Width 20.3mm
	Standards/Approvals REACH, IEC, ANSI, RoHS, ISO, EN, UL
	Weight 14g
	Depth 10.2mm
	Length 31.8mm
	Efficiency 86%
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 90°C

TRACOPOWER THM 6 Series DC-DC Converter, 5V DC Voltage Rating, 6W Power Rating - THM 6-1211

This DC-DC converter is a reliable power supply solution, specifically designed for medical and industrial applications. With a Compact DIP-24 package, it operates within an input voltage range of 9 to 18V DC, delivering a steady output voltage of 5V DC at 1.2A. Ideal for PCB mounting, this high-efficiency DC-DC converter boasts a robust isolation system to ensure safe and reliable performance.

Features & Benefits

• Reinforced isolation rated for 5000VAC protects against electrical hazards

• Wide operating temperature range guarantees performance in extreme conditions

• Low leakage current of less than 2 00B5 (μ) A enhances safety for sensitivity

• High efficiency of 86% maximises energy utilisation

• Compliance with IEC 60601 standards ensures suitability for medical devices

• Built-in short circuit protection provides reliable operation during fault conditions

Applications

• Used for powering medical devices with strict safety requirements

• Ideal for electronics in transportation and control systems

• Suitable for automation technologies for reliable power delivery

• Employed in measurement equipment necessitating stable voltage outputs

What input voltage specifications are important for usage?

Operating within an input voltage range of 9 to 18V DC is essential for optimal performance, with a nominal input voltage of 12V DC preferred for stability.

How does the converter handle electrical disruptions?

It features internal short circuit protection which automatically recovers in case of fault conditions, ensuring continuous operation and preventing damage.

What is the significance of the isolation voltage rating?

The 5000VAC isolation voltage rating safeguards both the device and users by preventing any unintended current flow, Crucial for medical applications.

What kind of compliance does this power supply meet?

It adheres to several safety and performance standards, including IEC 60601 for medical devices and ISO 14971 for risk management, ensuring reliability in sensitive environments.

Is the converter suitable for high-temperature environments?

Yes, it operates effectively within a temperature range of -40°C to +90°C, making it suitable for various industrial applications including those subject to heat stress.
