TRACOPOWER THM 6 DC/DC Converter, 5V dc/ 1.2 A, 18V dc Input, 9V Input, PCB, 90 °C Max Temp -40 °C Min Temp DIP

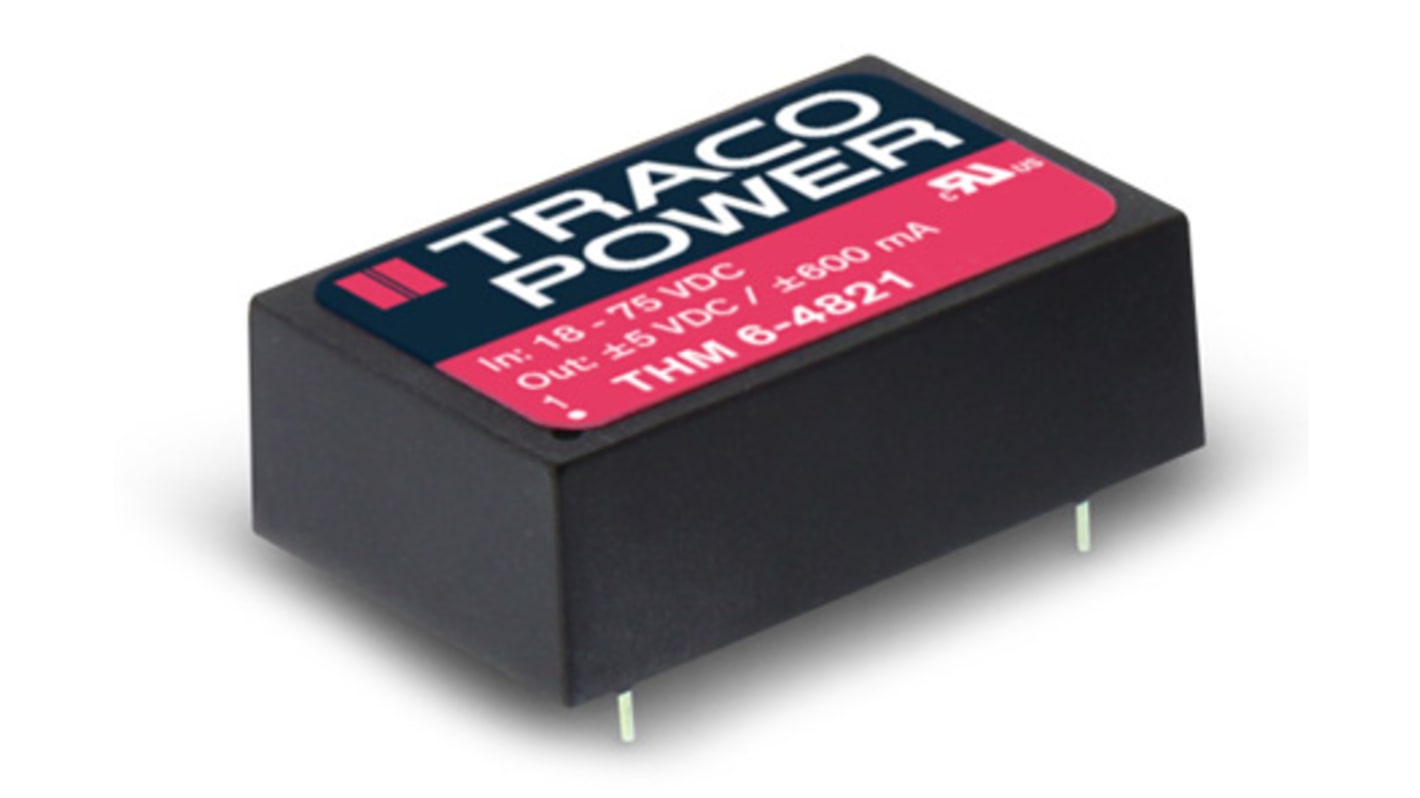

This image is representative of the product range

View all DC-DC Converters
Bulk discount available
View bulk pricing options

Subtotal (1 unit)*

$72.97

(exc. GST)

$80.27

(inc. GST)

Add to Basket
Select or type quantity
In Stock
  • Plus 10 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 2$72.97
3 - 4$71.14
5 +$70.15

*price indicative

RS Stock No.:
135-0792
Mfr. Part No.:
THM 6-1211
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Product Type

DC/DC Converter

Output Voltage 1

5V dc

Maximum Input Voltage

18V dc

Minimum Input Voltage

9V

Output Current 1

1.2A

Mount Type

PCB

Input Ratio

2:1

Number of Outputs

1

MTBF

4700000h

Output Voltage Adjustment Range

-10 to 20 %

Ripple and Noise

50mV Pk-Pk

Isolation Voltage

5kV ac

Package Type

DIP

Length

31.8mm

Depth

10.2mm

Standards/Approvals

REACH, IEC, ANSI, RoHS, ISO, EN, UL

Series

THM 6

Weight

14g

Width

20.3mm

Efficiency

86%

Maximum Operating Temperature

90°C

Minimum Operating Temperature

-40°C

TRACOPOWER THM 6 Series DC-DC Converter, 5V DC Voltage Rating, 6W Power Rating - THM 6-1211


This DC-DC converter is a reliable power supply solution, specifically designed for medical and industrial applications. With a Compact DIP-24 package, it operates within an input voltage range of 9 to 18V DC, delivering a steady output voltage of 5V DC at 1.2A. Ideal for PCB mounting, this high-efficiency DC-DC converter boasts a robust isolation system to ensure safe and reliable performance.

Features & Benefits


• Reinforced isolation rated for 5000VAC protects against electrical hazards

• Wide operating temperature range guarantees performance in extreme conditions

• Low leakage current of less than 2 00B5 (μ) A enhances safety for sensitivity

• High efficiency of 86% maximises energy utilisation

• Compliance with IEC 60601 standards ensures suitability for medical devices

• Built-in short circuit protection provides reliable operation during fault conditions

Applications


• Used for powering medical devices with strict safety requirements

• Ideal for electronics in transportation and control systems

• Suitable for automation technologies for reliable power delivery

• Employed in measurement equipment necessitating stable voltage outputs

What input voltage specifications are important for usage?


Operating within an input voltage range of 9 to 18V DC is essential for optimal performance, with a nominal input voltage of 12V DC preferred for stability.

How does the converter handle electrical disruptions?


It features internal short circuit protection which automatically recovers in case of fault conditions, ensuring continuous operation and preventing damage.

What is the significance of the isolation voltage rating?


The 5000VAC isolation voltage rating safeguards both the device and users by preventing any unintended current flow, Crucial for medical applications.

What kind of compliance does this power supply meet?


It adheres to several safety and performance standards, including IEC 60601 for medical devices and ISO 14971 for risk management, ensuring reliability in sensitive environments.

Is the converter suitable for high-temperature environments?


Yes, it operates effectively within a temperature range of -40°C to +90°C, making it suitable for various industrial applications including those subject to heat stress.
