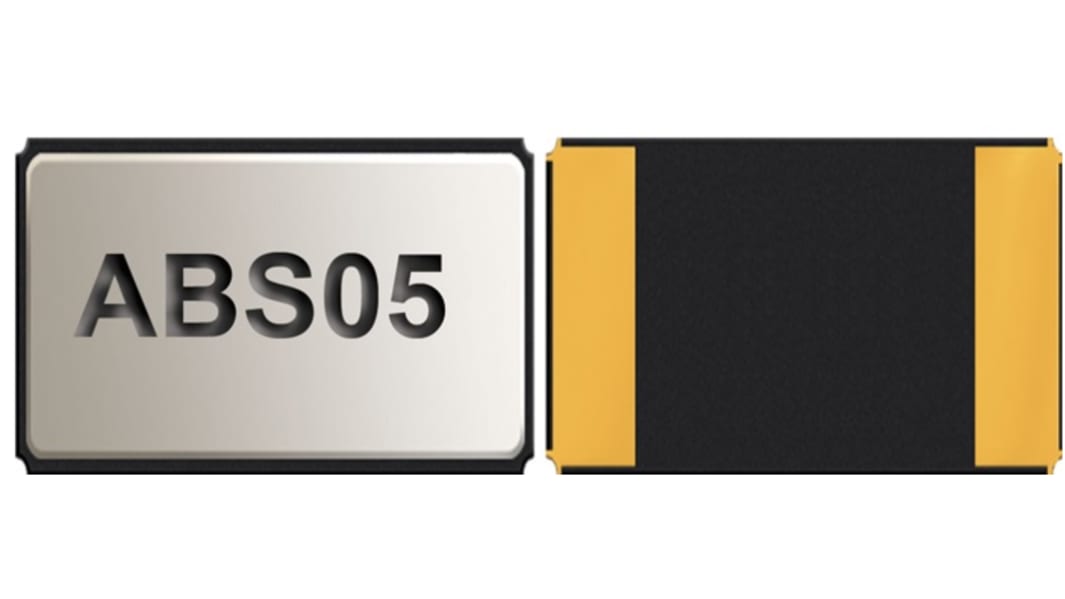

Abracon 32.768MHz Crystal Unit SMD 2-Pin 1.6 x 1 x 0.5mm
- RS Stock No.:
- 241-3046
- Mfr. Part No.:
- ABS05-32.768KHZ-9-T
- Brand:
- Abracon
Available for back order.
Price (ex. GST) Each (On a Reel of 3000)
$0.838
(exc. GST)
$0.922
(inc. GST)
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 - 12000 | $0.838 | $2,514.00 |
| 15000 + | $0.754 | $2,262.00 |
*price indicative
- RS Stock No.:
- 241-3046
- Mfr. Part No.:
- ABS05-32.768KHZ-9-T
- Brand:
- Abracon
Technical data sheets
Legislation and Compliance
Product Details
The Abracon 32.768kHz SMD low profile crystal is used in Wireless Modules, Internet of Things (IoT), Bluetooth / Bluetooth Low Energy (BLE), Commercial & Industrial Applications, Low Power MCU’s, SoC’s, Transceivers, Communication & Measuring Equipment.
Small form factor Tuning Fork Crystal (1.60 x 1.00 x 0.50 mm package)
Low profile
Available with standard ±20 ppm set-tolerance
Extended temperature -40°C to +85°C for industrial applications
Low profile
Available with standard ±20 ppm set-tolerance
Extended temperature -40°C to +85°C for industrial applications
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Standard Frequency | 32.768MHz |
| Mounting Type | Surface Mount |
| Load Capacitance | 9pF |
| Package Type | SMD |
| Pin Count | 2 |
| Dimensions | 1.6 x 1 x 0.5mm |
