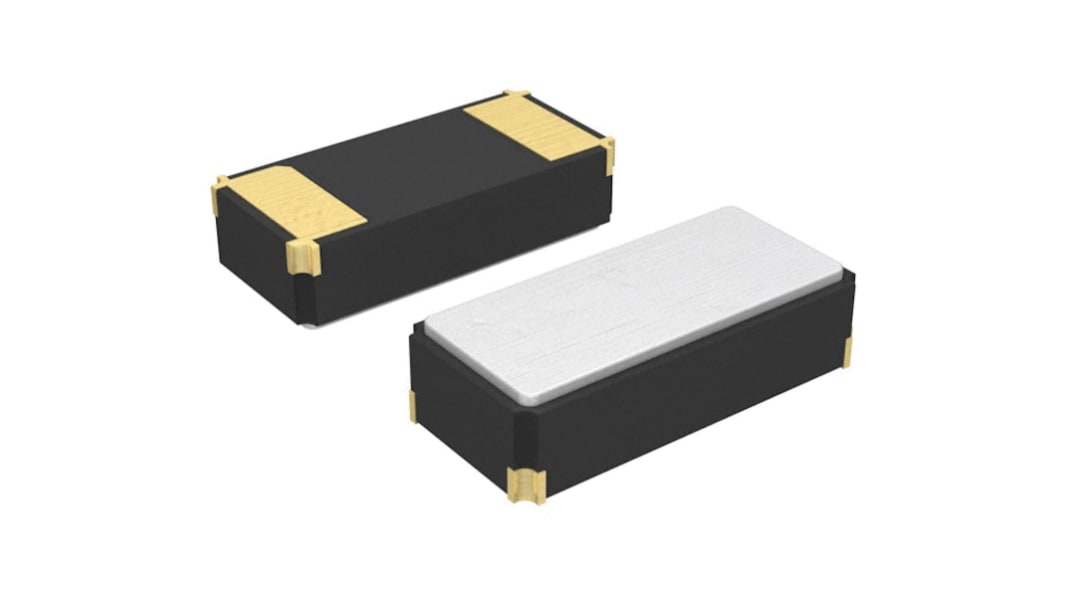

Abracon 32.768kHz Crystal Unit ±20ppm SMD 2-Pin 3.2 x 1.5 x 0.9mm
- RS Stock No.:
- 171-2308
- Mfr. Part No.:
- ABS07-32.768KHZ-9-T
- Brand:
- Abracon
12270 In Global stock for delivery within 10 working day(s)
Price (ex. GST) Each (On a Reel of 3000)
$0.768
(exc. GST)
$0.845
(inc. GST)
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 - 12000 | $0.768 | $2,304.00 |
| 15000 + | $0.742 | $2,226.00 |
*price indicative
- RS Stock No.:
- 171-2308
- Mfr. Part No.:
- ABS07-32.768KHZ-9-T
- Brand:
- Abracon
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- SG
Product Details
Plastic package with embedded heat resistant crystal in cylinder package
Extended temperature -40°C to +85°C for industrial applications
Low frequency
Commercial & Industrial applications
Wireless communications
PDA and Palm Pilots
Extended temperature -40°C to +85°C for industrial applications
Low frequency
Commercial & Industrial applications
Wireless communications
PDA and Palm Pilots
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Standard Frequency | 32.768kHz |
| Mounting Type | Surface Mount |
| Load Capacitance | 9pF |
| Package Type | SMD |
| Pin Count | 2 |
| Length | 3.2mm |
| Width | 1.5mm |
| Height | 0.9mm |
| Dimensions | 3.2 x 1.5 x 0.9mm |
| Frequency Tolerance | ±20ppm |
| Series Resistance | 70kΩ |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
