- RS Stock No.:
- 339-8906
- Mfr. Part No.:
- YAR 204-2F
- Brand:
- SKF
16 In Global stock for delivery within 10 working day(s)
26 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$42.56
(exc. GST)
$46.82
(inc. GST)
Units | Per unit |
1 - 5 | $42.56 |
6 - 11 | $42.09 |
12 + | $41.46 |
- RS Stock No.:
- 339-8906
- Mfr. Part No.:
- YAR 204-2F
- Brand:
- SKF
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

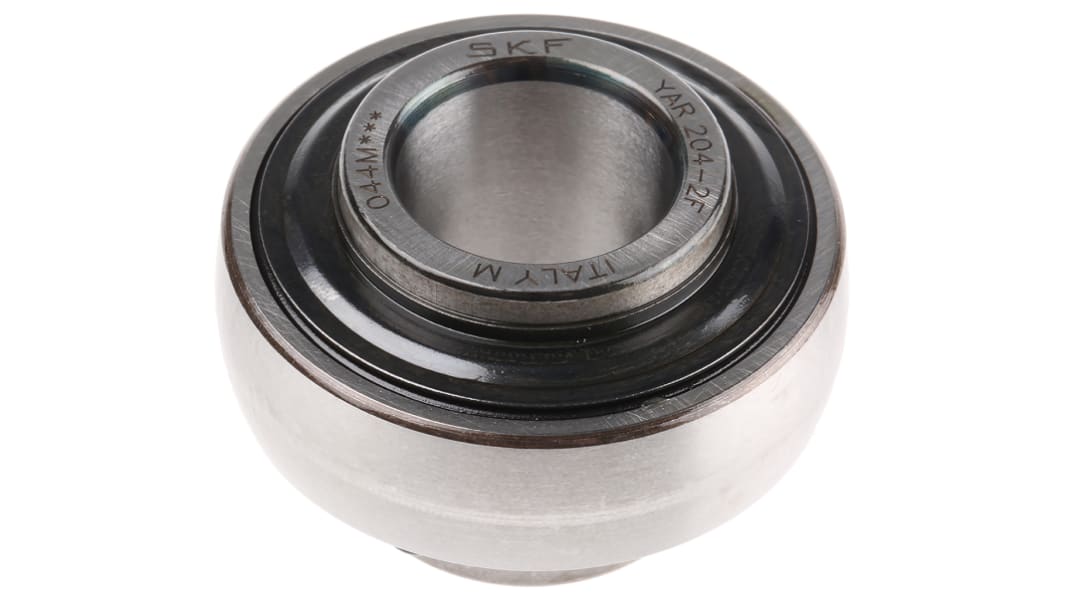

SKF Set-Screw Lock Bearing Insert, 20mm ID, 47mm OD - YAR 204-2F
Ensure smooth operation of your machine shafts by installing this insert bearing from SKF. It's efficient when used in chain systems operating with a high radial load as it helps reduce friction. The wide 31mm inner ring protrudes on one side to balance the ball movement and provide additional shaft support. You can make use of this bearing in heavy industrial settings as it can withstand a dynamic load rating of 12,700N in moving machinery. Insert this bearing in commercial production equipment for reliable operation in the manufacturing process.
Static load rating of 6550N keeps shaft grounded in stationary or low-speed equipment
Easy to insert and secure via simple set-screw lock mechanism
Lengthy 8500r/min (rotations per minute) limiting speed for relaible operation in fast-moving machines
Extended inner ring for time-saving mounting on a shaft
Easy to insert and secure via simple set-screw lock mechanism
Lengthy 8500r/min (rotations per minute) limiting speed for relaible operation in fast-moving machines
Extended inner ring for time-saving mounting on a shaft
Applications
Food production
Printing press
Construction industry
Material handling
Motor engines
Printing press
Construction industry
Material handling
Motor engines
How do I lubricate this SKF insert bearing?
This bearing has no lubrication hole as it's encased in a self-lubricating seal that doesn't need any additional lubrication. This keeps the bearing suitably greased, even when it's rotating at increased speeds.
Specifications
Attribute | Value |
---|---|
Inside Diameter | 20mm |
Outside Diameter | 47mm |
Static Load Rating | 6550N |
Dynamic Load Rating | 12700N |
