TE Connectivity, 2102737 1.8 mm Pitch High Speed Backplane Connector, Vertical Female, 16 Column, 9 Row, 144 Way
- RS Stock No.:
- 196-3526
- Distrelec Article No.:
- 304-49-633
- Mfr. Part No.:
- 2102737-1
- Brand:
- TE Connectivity

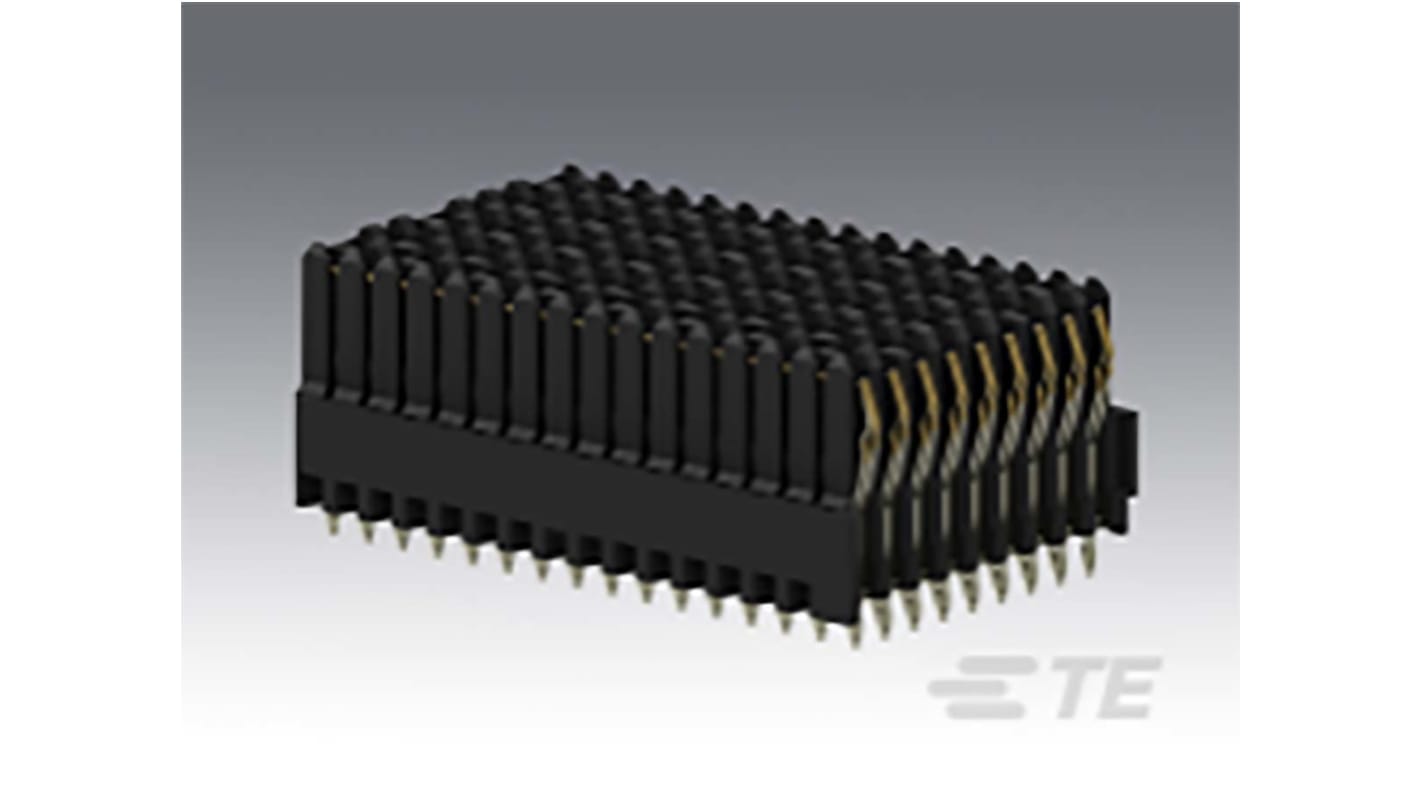

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 tube of 16 units)*
$1,413.456
(exc. GST)
$1,554.80
(inc. GST)
FREE delivery for orders over $80.00 ex GST
Temporarily out of stock
- Shipping from 10 August 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 16 - 16 | $88.341 | $1,413.46 |
| 32 - 48 | $87.432 | $1,398.91 |
| 64 + | $84.808 | $1,356.93 |
*price indicative
- RS Stock No.:
- 196-3526
- Distrelec Article No.:
- 304-49-633
- Mfr. Part No.:
- 2102737-1
- Brand:
- TE Connectivity
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Backplane Connector Type | High Speed | |
| Product Type | Backplane Connector | |
| Current | 1.5A | |
| Number of Contacts | 144 | |
| Number of Columns | 16 | |
| Orientation | Vertical | |
| Number of Rows | 9 | |
| Connector Gender | Female | |
| Housing Material | Liquid Crystal Polymer | |
| Pitch | 1.8mm | |
| Contact Material | Phosphor Bronze | |
| Mount Type | Board | |
| Contact Plating | Tin, Gold Plated | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 125°C | |
| Contact Gender | Female | |
| Standards/Approvals | No | |
| Series | 2102737 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Backplane Connector Type High Speed | ||
Product Type Backplane Connector | ||
Current 1.5A | ||
Number of Contacts 144 | ||
Number of Columns 16 | ||
Orientation Vertical | ||
Number of Rows 9 | ||
Connector Gender Female | ||
Housing Material Liquid Crystal Polymer | ||
Pitch 1.8mm | ||
Contact Material Phosphor Bronze | ||
Mount Type Board | ||
Contact Plating Tin, Gold Plated | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 125°C | ||
Contact Gender Female | ||
Standards/Approvals No | ||
Series 2102737 | ||
Non Compliant
- COO (Country of Origin):
- US
TE’s MULTIGIG RT 2-R ruggedized, light weight, high speed board-to-board interconnect features the modularity and flexibility of the MULTIGIG RT 2 connector, with a new quad-redundant contact structure designed for high vibration levels.
Quad-redundant contact system supports high levels of shock/vibration
Supports Ethernet, Fibre Channel, InfiniBand applications, PCIe and Serial RapidIO high speed protocols
Modular, lightweight connector system
Robust “pinless” interface
Differential, single-ended and power
Ruggedized guide hardware available
Supports 0.8 inch card slot pitches
Can be combined with high power modules (VITA 62), RF modules (VITA 67) and Optical modules (VITA 66)
Applications
Ground Defense
Missile Defense
Electronic Systems / C4ISR
Space
Commercial and Military Aerospace
