MPN

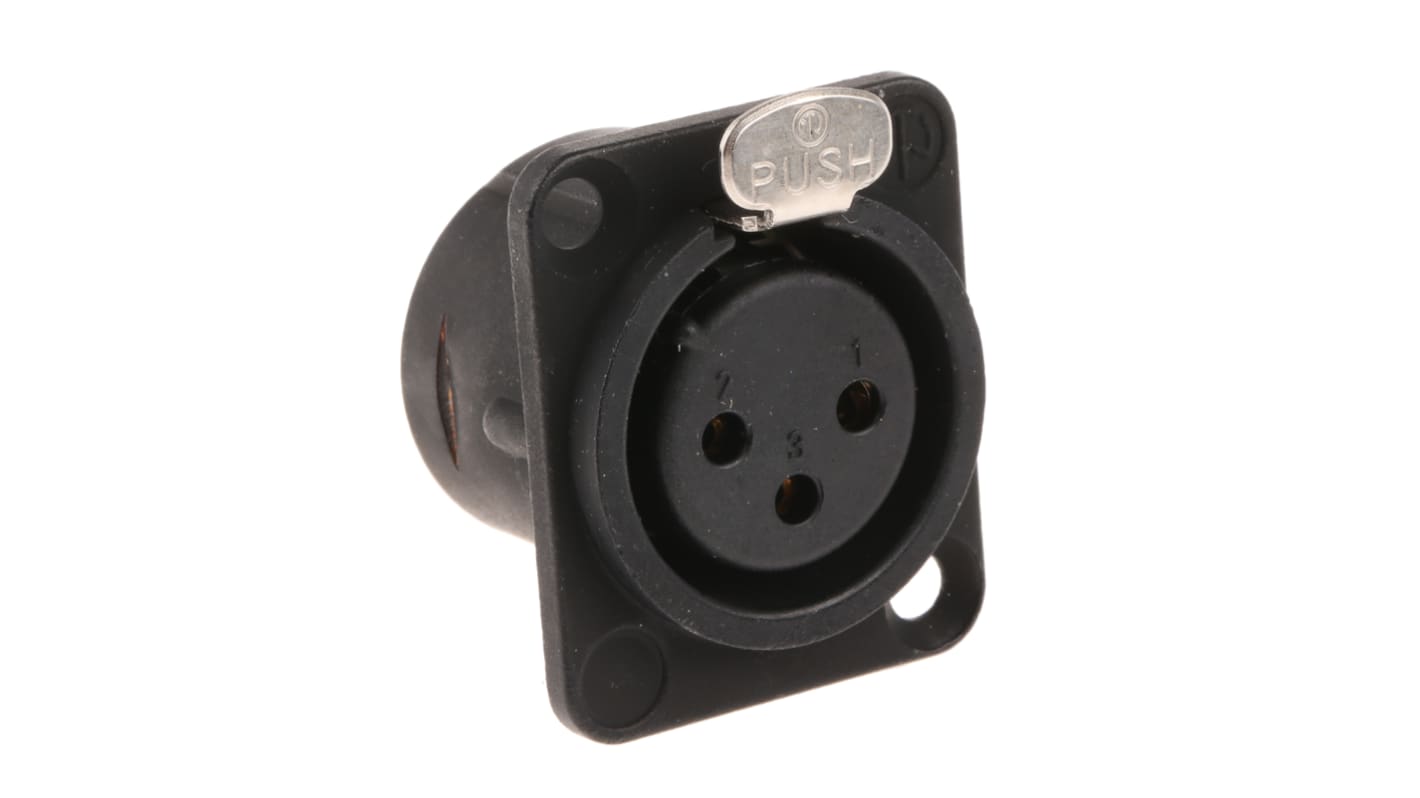

Neutrik Panel XLR Connector, Straight, 50V Female, 3 Way, Gold over Nickel Plating

RS Stock No.:: 719-1872
Distrelec Article No.:: 142-33-060
Mfr. Part No.:: NC3FD-L-B-1
Brand:: Neutrik

Neutrik Panel XLR Connector, Straight, 50V Female, 3 Way, Gold over Nickel Plating

Bulk discount available

View bulk pricing options

Subtotal (1 unit)*

$12.06

(exc. GST)

$13.27

(inc. GST)

FREE delivery for orders over $80.00 ex GST

Last RS stock

Final 29 unit(s), ready to ship

Units	Per unit
1 - 14	$12.06
15 - 49	$11.76
50 +	$11.12

*price indicative

RS Stock No.:: 719-1872
Distrelec Article No.:: 142-33-060
Mfr. Part No.:: NC3FD-L-B-1
Brand:: Neutrik

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Neutrik
	Product Type	XLR Connector
	Number of Contacts	3
	Current	16A
	Mount Type	Panel
	Orientation	Straight
	Connector Gender	Female
	Colour	Metallic Black
	Contact Plating	Gold over Nickel
	Housing Material	Zinc
	Minimum Operating Temperature	-30°C
	Termination Type	Solder
	Voltage	50V
	Contact Gender	Female
	Contact Material	Bronze
	Maximum Operating Temperature	80°C
	Standards/Approvals	No

	Select all
	Brand Neutrik
	Product Type XLR Connector
	Number of Contacts 3
	Current 16A
	Mount Type Panel
	Orientation Straight
	Connector Gender Female
	Colour Metallic Black
	Contact Plating Gold over Nickel
	Housing Material Zinc
	Minimum Operating Temperature -30°C
	Termination Type Solder
	Voltage 50V
	Contact Gender Female
	Contact Material Bronze
	Maximum Operating Temperature 80°C
	Standards/Approvals No

Datasheet

Neutrik XLR Connector

The Neutrik D series female XLR connector has three contacts with gold over nickel plating. It has a current rating is 16A and the voltage rating is 50V. This panel-mount XLR connector can be mounted in either front or rear of a panel. With a simple screw mount frame, this XLR connector is easy to install and features a locking mechanism that ensures a reliable mating.

Features and Benefits

Black metal shell offers RF protection

Delivers balanced microphone and line-level signals over long distances

Robust "D" metal shell

Solder cups for easy termination

Standardized D sized 24mm panel cut out

Housing material is zinc

Operating temperature ranging between -30°C and 80°C

Certifications

UL approved
