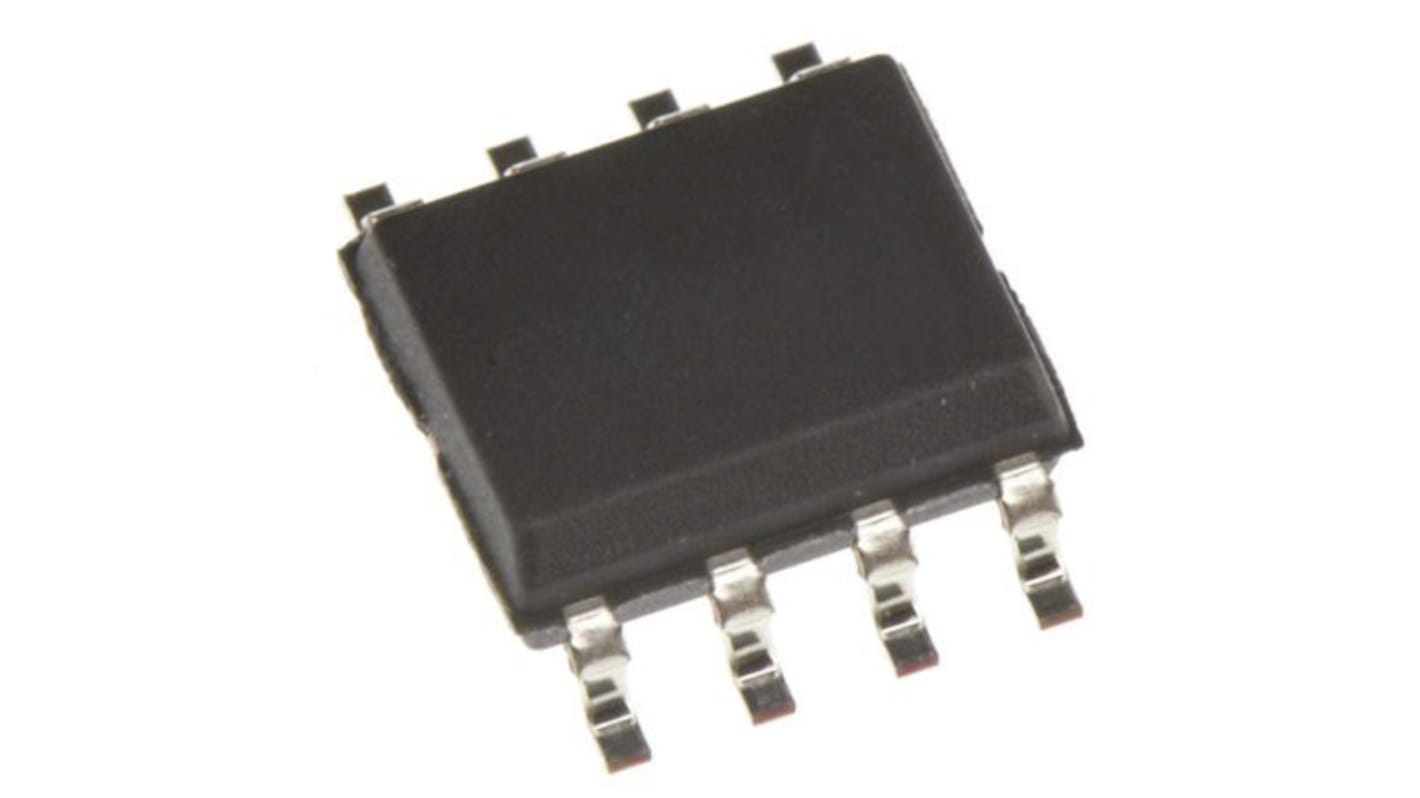

Maxim Integrated Voltage Supervisor 8-Pin SOIC, DS1708ESA+
- RS Stock No.:
- 190-4832
- Mfr. Part No.:
- DS1708ESA+
- Brand:
- Maxim Integrated
700 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (In a Tube of 100)
$6.431
(exc. GST)
$7.074
(inc. GST)
| Units | Per unit | Per Tube* |
| 100 - 400 | $6.431 | $643.10 |
| 500 + | $5.788 | $578.80 |
| *price indicative | ||
- RS Stock No.:
- 190-4832
- Mfr. Part No.:
- DS1708ESA+
- Brand:
- Maxim Integrated
Technical data sheets
Legislation and Compliance
Product Details
Holds microprocessor in check during power transients
Automatically restarts microprocessor after power failure
Monitors pushbutton for external override
Accurate 5%, 10% or 20% resets for 3.3V systems and 5% or 10% resets for 5.0V systems
Eliminates the need for discrete components
20% tolerance compatible with 3.0V systems
Pin compatible with the MAXIM MAX707/MAX708 in 8-pin DIP, 8-pin SO packages
8-pin DIP, 8-pin and μSOP SO and 8-pin μSOP packages available
Industrial temperature range -40°C to +85°C
Automatically restarts microprocessor after power failure
Monitors pushbutton for external override
Accurate 5%, 10% or 20% resets for 3.3V systems and 5% or 10% resets for 5.0V systems
Eliminates the need for discrete components
20% tolerance compatible with 3.0V systems
Pin compatible with the MAXIM MAX707/MAX708 in 8-pin DIP, 8-pin SO packages
8-pin DIP, 8-pin and μSOP SO and 8-pin μSOP packages available
Industrial temperature range -40°C to +85°C
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Number of Supervisors | 1 |
| Power Fail Detection | Yes |
| Output Driver | Active High, Active Low |
| Maximum Reset Active Time | 285ms |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Pin Count | 8 |
| Dimensions | 5 x 4 x 1.5mm |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Supply Voltage | 1.2 V |
| Minimum Operating Temperature | -40 °C |
