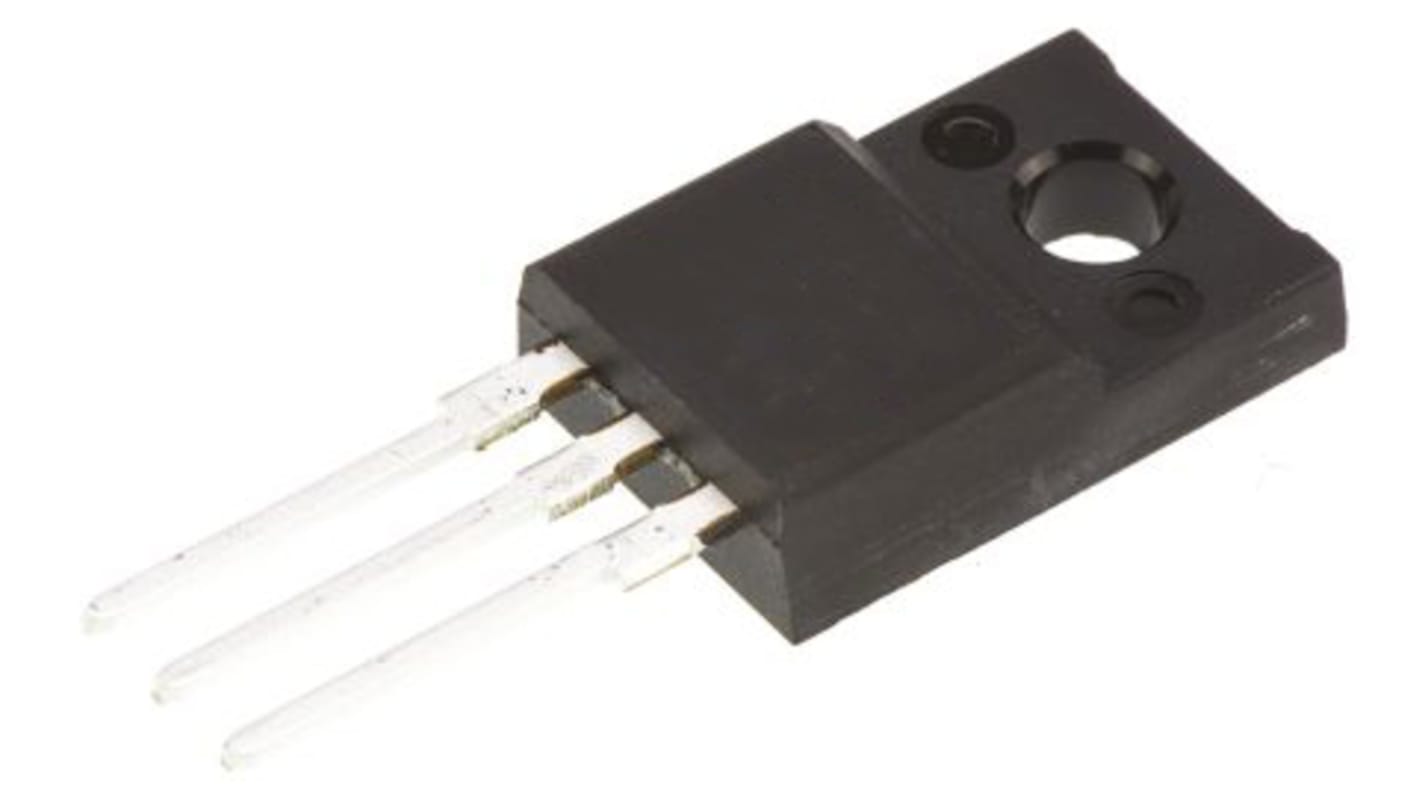

ROHM BA30DD0T, 1 Low Dropout Voltage, Voltage Regulator 2A, 3 V 3-Pin, TO-220FP

View all Voltage Regulators
Bulk discount available

Subtotal (1 pack of 5 units)*

$33.03

(exc. GST)

$36.335

(inc. GST)

Add to Basket
Select or type quantity
Last RS stock
  • Final 40 unit(s), ready to ship from another location
Units
Per unit
Per Pack*
5 - 45$6.606$33.03
50 +$6.486$32.43

*price indicative

RS Stock No.:
171-7783
Mfr. Part No.:
BA30DD0T
Brand:
ROHM
Find similar products by selecting one or more attributes.
Select all

Brand

ROHM

Regulator Type

Low Dropout Voltage

Maximum Output Current

2A

Output Voltage

3 V

Number of Outputs

1

Line Regulation

50 mV

Accuracy

±1%

Load Regulation

200 mV

Mounting Type

Through Hole

Polarity

Positive

Package Type

TO-220FP

Pin Count

3

Output Type

Fixed

Dimensions

10 x 4.5 x 17mm

Minimum Input Voltage

3 V

Maximum Input Voltage

25 V

Height

17mm

Minimum Operating Temperature

-40 °C

Maximum Operating Temperature

+125 °C

Width

4.5mm

Length

10mm

COO (Country of Origin):
JP

ROHM LDO Regulator


The ROHM BA30DD0T series, TO-220FP-3 package low saturation 3-Pin, 3V LDO regulator is a new age device with an output current of 2A. It has a wide output voltage range and package lineup with and without shutdown switches. It has input power supply voltage of 25V maximum.

Features and Benefits


• Built-in over-current protection circuit that prevents the destruction of the IC due to output short circuits
• Built-in thermal shutdown circuit for protecting the IC from damage due to overloading
• Dropout voltage at maximum current is 500mV
• Low saturation voltage type with PNP output
• Operating temperature ranges between -40°C and 125°C
• Output voltage accuracy is ± 1%
• „ Built-in over-voltage protection circuit that prevents the destruction of the IC due to power supply surges

Applications


• Barcode scanner, digital multimeter handy type, digital stethoscope
• Coin processing machines, portable data terminal, meter for medical treatments portable
• Digital multimeter bench type, display for EMS
• Intercom/baby monitor, fingerprint authentication device
