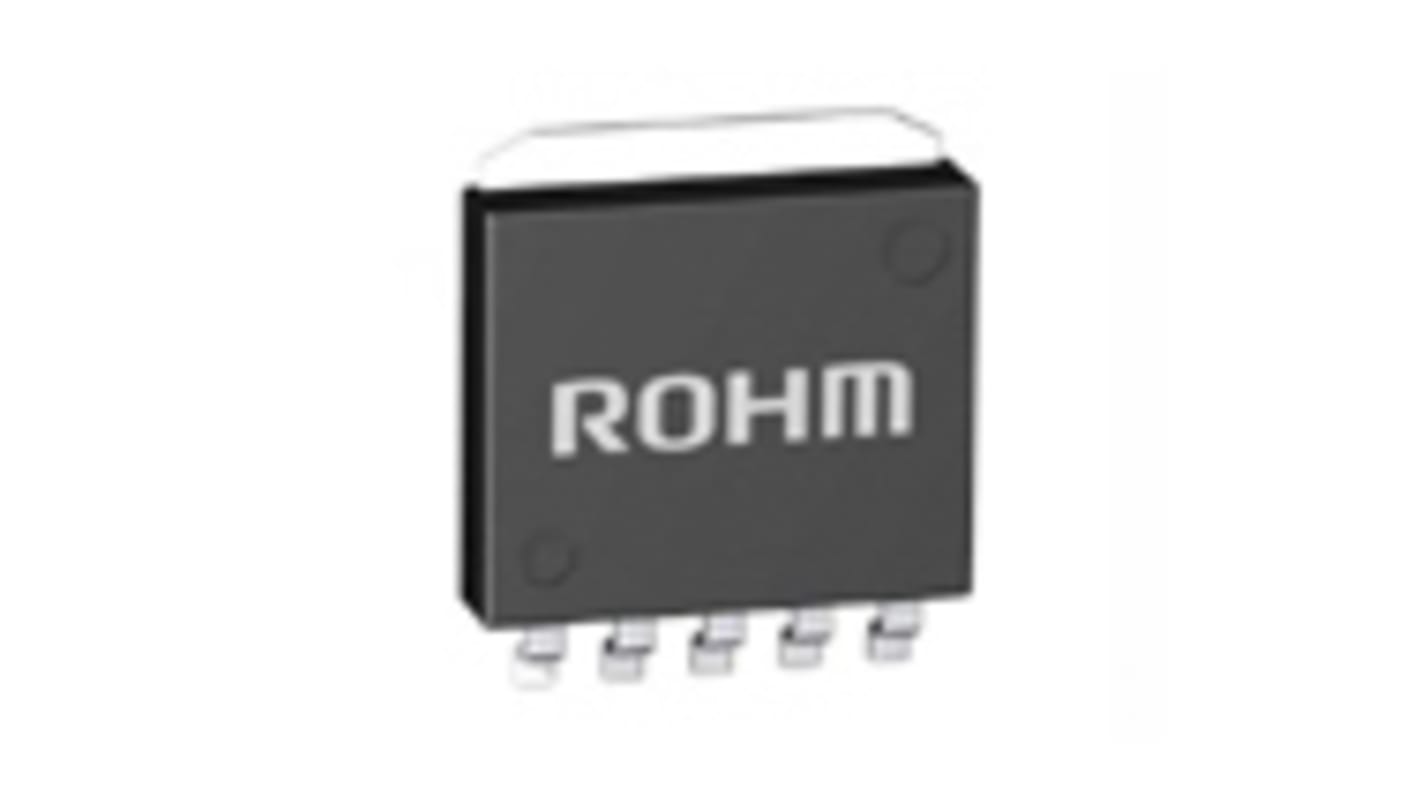

ROHM BAJ2DD0WHFP-TR, 1 Low Dropout Voltage, Voltage Regulator 2A, 12 V 5-Pin, HRP

View all Voltage Regulators
Stock information currently inaccessible
RS Stock No.:
167-7387
Mfr. Part No.:
BAJ2DD0WHFP-TR
Brand:
ROHM
Find similar products by selecting one or more attributes.
Select all

Brand

ROHM

Regulator Type

Low Dropout Voltage

Maximum Output Current

2A

Output Voltage

12 V

Number of Outputs

1

Line Regulation

50 mV

Accuracy

±1%

Load Regulation

200 mV

Polarity

Positive

Mounting Type

Surface Mount

Package Type

HRP

Pin Count

5

Output Type

Fixed

Dimensions

9.395 x 9.017 x 1.905mm

Maximum Operating Temperature

+125 °C

Minimum Input Voltage

3 V

Maximum Input Voltage

25 V

Height

1.91mm

Minimum Operating Temperature

-40 °C

Width

9.02mm

Length

9.4mm

COO (Country of Origin):
JP
ROHM's LDO regulators continue the trend towards increasing miniaturization and greater power efficiency and are optimized for power supplies of all types. The broad lineup includes low saturation fixed output types in 1A/2A/0.3A ratings, models with different output voltages and packages, and units with/without a shutdown switch. In addition, overcurrent, thermal shutdown, and overvoltage protection circuits are integrated to prevent IC destruction due to output shorts, IC overload, and surges on the power supply line, respectively.

Maximum current: 2A
Output voltage accuracy: ±1%
Ultra-low saturation with PNP output
