Texas Instruments TPD2EUSB30ADRTR 2-Element Uni-Directional ESD Protection Array, 45 W, 3-Pin SOT-9X3
- RS Stock No.:
- 812-0187
- Mfr. Part No.:
- TPD2EUSB30ADRTR
- Brand:
- Texas Instruments

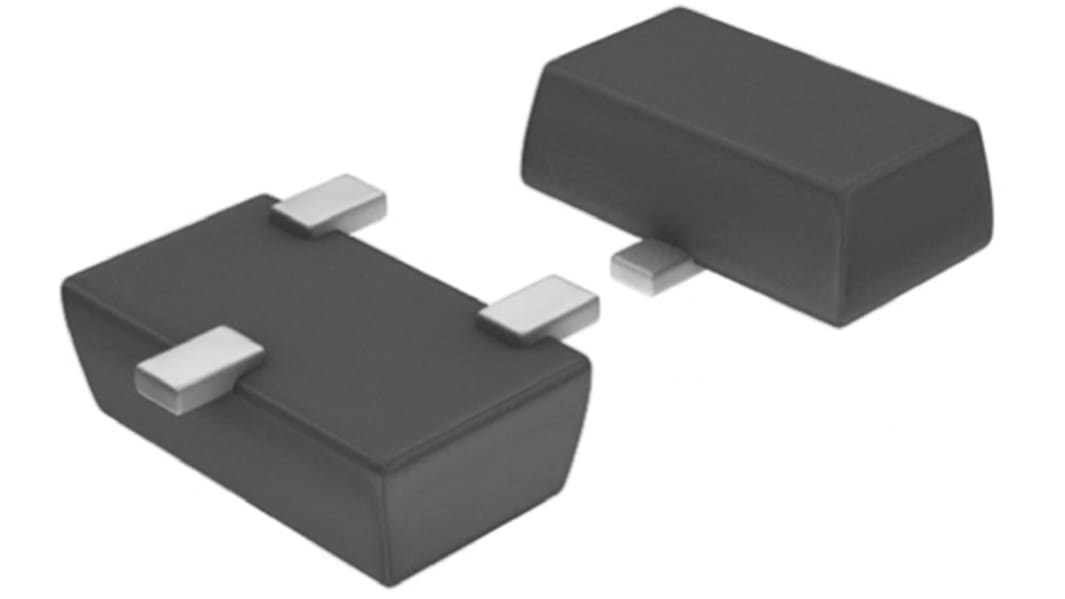

This image is representative of the product range
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 812-0187
- Mfr. Part No.:
- TPD2EUSB30ADRTR
- Brand:
- Texas Instruments
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Product Type | ESD Protection Array | |
| Diode Configuration | Complex Array | |
| Direction Type | Uni-Directional | |
| Minimum Breakdown Voltage Vbr | 7V | |
| Mount Type | Surface | |
| Package Type | SOT-9X3 | |
| Maximum Reverse Stand-off Voltage Vwm | 5.5V | |
| Pin Count | 3 | |
| Peak Pulse Power Dissipation Pppm | 45W | |
| Clamping Voltage VC | 8V | |
| Minimum Operating Temperature | -40°C | |
| ESD Protection | Yes | |
| Maximum Peak Pulse Current Ippm | 5A | |
| Test Current It | 1mA | |
| Number of Elements per Chip | 2 | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Length | 1.05mm | |
| Series | TPD2EUSB30A | |
| Height | 0.45mm | |
| Maximum Reverse Leakage Current | 5.5pA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Product Type ESD Protection Array | ||
Diode Configuration Complex Array | ||
Direction Type Uni-Directional | ||
Minimum Breakdown Voltage Vbr 7V | ||
Mount Type Surface | ||
Package Type SOT-9X3 | ||
Maximum Reverse Stand-off Voltage Vwm 5.5V | ||
Pin Count 3 | ||
Peak Pulse Power Dissipation Pppm 45W | ||
Clamping Voltage VC 8V | ||
Minimum Operating Temperature -40°C | ||
ESD Protection Yes | ||
Maximum Peak Pulse Current Ippm 5A | ||
Test Current It 1mA | ||
Number of Elements per Chip 2 | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
Length 1.05mm | ||
Series TPD2EUSB30A | ||
Height 0.45mm | ||
Maximum Reverse Leakage Current 5.5pA | ||
Automotive Standard No | ||
