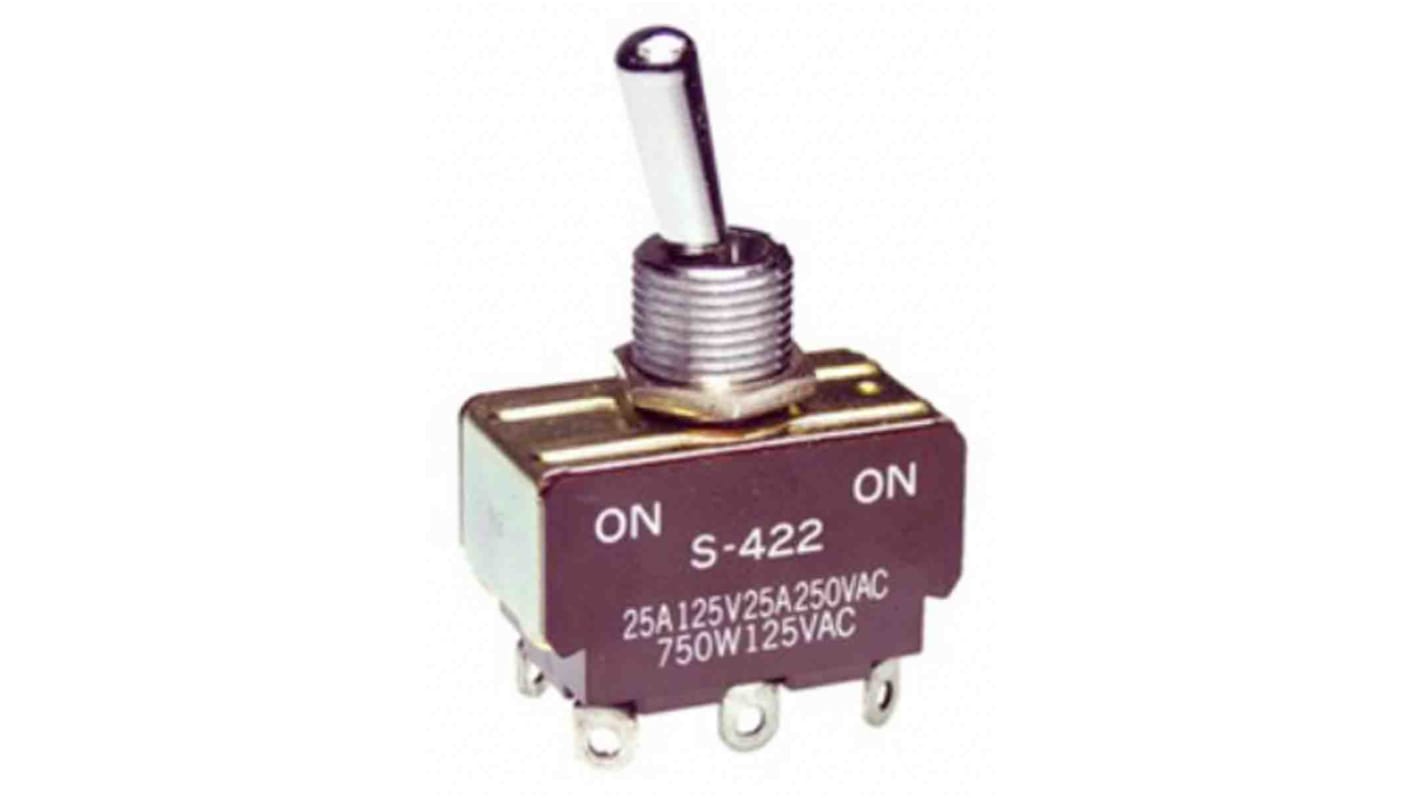

NKK Switches Toggle Switch, Panel Mount, On-On, DPDT, Solder Terminal, 125V ac
- RS Stock No.:
- 195-9253
- Mfr. Part No.:
- S422
- Brand:
- NKK Switches
2 In Global stock for delivery within 5 working day(s)
Added
Price (ex. GST) Each
$30.14
(exc. GST)
$33.15
(inc. GST)
| Units | Per unit |
| 1 + | $30.14 |
- RS Stock No.:
- 195-9253
- Mfr. Part No.:
- S422
- Brand:
- NKK Switches
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- PH
Product Details
The NKK Switches toggle switch has DPDT contacts, and On-On circuit configuration. Terminals are made up brass with tin plating. Its operating temperature range is -10 to +70 °C. This product belongs to S series.
It is RoHS3 compliant
It has sturdy construction with high torque bushings
Medium/High capacity standard toggle switch
It has sturdy construction with high torque bushings
Medium/High capacity standard toggle switch
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | DPDT |
| Switch Operation | On-On |
| Contact Current Rating | 20A (AC) |
| Mounting Type | Panel Mount |
| Terminal Type | Solder |
| Illuminated | No |
| Actuator Length | 17.5mm |
| Actuator Material | Chrome Plated Brass |
| Voltage Rating | 125V ac |
| Contact Resistance | 10mΩ |
| Maximum Operating Temperature | +70°C |
| Operating Temperature Range | -10 → +70°C |
| Mechanical Life | 50000Operations |
| Minimum Operating Temperature | -10°C |
