NKK Switches Toggle Switch, Panel Mount, On-On, SPDT, Solder Terminal, 30 V dc, 125V ac
- RS Stock No.:
- 195-9271
- Mfr. Part No.:
- M2112LFW01/M
- Brand:
- NKK Switches
5 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$25.55
(exc. GST)
$28.11
(inc. GST)
| Units | Per unit |
| 1 - 1 | $25.55 |
| 2 - 2 | $24.91 |
| 3 + | $24.56 |
- RS Stock No.:
- 195-9271
- Mfr. Part No.:
- M2112LFW01/M
- Brand:
- NKK Switches
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

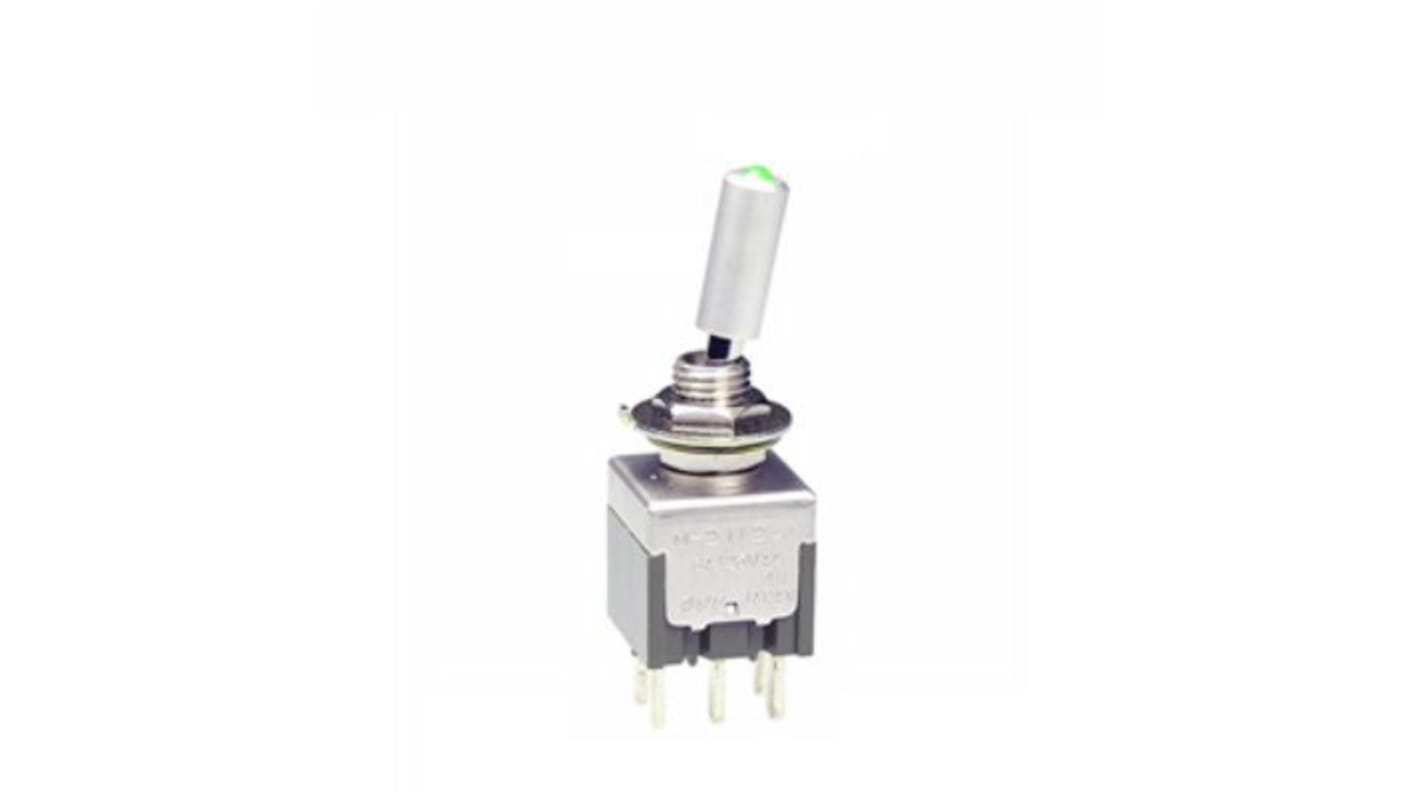

The NKK Switches toggle switch has SPDT contacts, and On-None-On circuit configuration. Terminals are made up of copper with silver plating or gold plating for switch and brass with silver plating or gold plating for lamp terminals. Its operating temperature range is -10 to +55 °C. This product belongs to M2100 series.
It is industry’s first LED illumination at tip of toggle switches.
Single colour LEDs of red, yellow, and green, plus bicolour red/green,
to meet varied design requirements.
LEDs can operate independently from or synchronously with switching operation.
Antijamming feature to protect contacts from damage due to excessive downward force on the toggle.
Single colour LEDs of red, yellow, and green, plus bicolour red/green,
to meet varied design requirements.
LEDs can operate independently from or synchronously with switching operation.
Antijamming feature to protect contacts from damage due to excessive downward force on the toggle.
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SPDT |
| Switch Operation | On-On |
| Contact Current Rating | 4A (DC), 6A (AC) |
| Mounting Type | Panel Mount |
| Terminal Type | Solder |
| Illuminated | Yes |
| Actuator Length | 14.7mm |
| Actuator Material | Nickel Plated Brass |
| Voltage Rating | 30 V dc, 125V ac |
| Contact Resistance | 10mΩ |
| Contact Material | Silver |
| Mechanical Life | 50000Operations |
| Maximum Operating Temperature | +55°C |
| Minimum Operating Temperature | -10°C |
| Operating Temperature Range | -10 → +55°C |
