RS PRO Type J Thermocouple Cable/Wire, 10m, Screened, PVC Mylar Insulation, +105°C Max, 7/0.2mm

RS Stock No.:: 215-4871
Brand:: RS PRO

RS PRO Type J Thermocouple Cable/Wire, 10m, Screened, PVC Mylar Insulation, +105°C Max, 7/0.2mm

Bulk discount available

Subtotal (1 unit)**

$35.63

(exc. GST)

$39.19

(inc. GST)

17 In Global stock for delivery within 10 working day(s)*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $80.00 ex GST

Units	Per unit
1 - 4	$35.63
5 +	$29.32

**price indicative

RS Stock No.:: 215-4871
Brand:: RS PRO

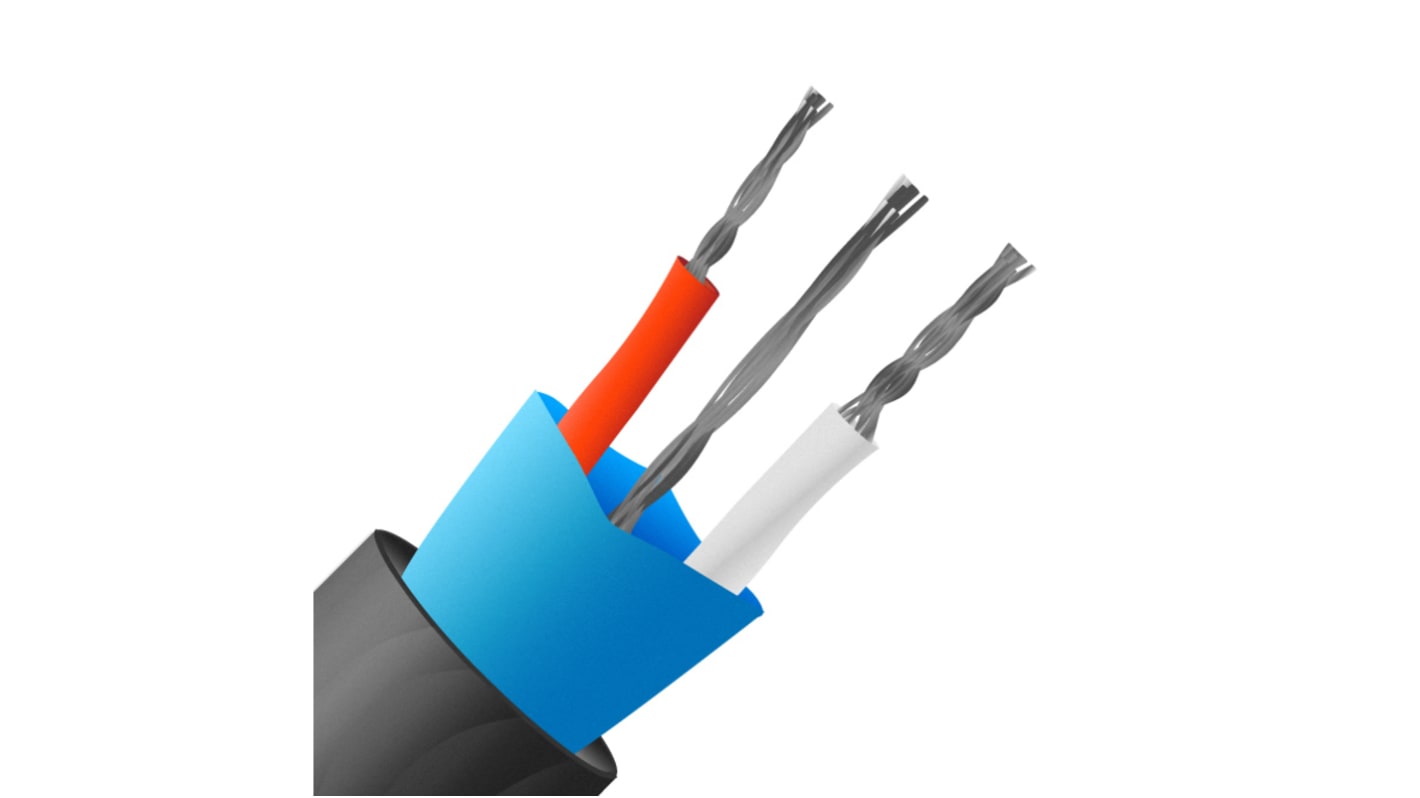

RS PRO PVC Insulated Thermocouple Extension Cable

Introducing the range of RS PRO PVC Insulated Thermocouple Cables, ideal for use as general-purpose extension wire in a range of light-duty environments. The cable consists of twisted cores which are screened with an outer jacket for optimum protection and insulation of the wires, and high reliability, especially when being used for a long period of time in a range of environments.

Features and Benefits:

This range of RS PRO PVC insulated Thermocouple cabling is suitable for use as extension cable in light-duty environments

The cable is PVC insulated with Mylar screen, designed to reduce electrical noise

The extension cable has an excellent temperature range from -10°C up to +105°C and high dielectric strength, making it incredibly versatile

The flexible PVC material offers good resistance to chemicals, oils and fluids, making the cables ideal for industrial applications where the cabling may be exposed to harsh and adverse fluids from machinery and more

In addition to this, PVC is known for being waterproof and self-extinguishing, making it an ideal material for general-purpose cabling applications

Available in a range of variations dependant on requirements

Applications:

Thermocouple extension wires or cabling is an ideal accessory when working with thermocouple installation. This type of cable can add additional flexibility and versatility to an existing thermocouple and are offered in a wide range of constructions from simple twisted pairs to screened cables to suit any combination and application they are needed for. Thermocouple extension cables can often be found in:

Research and development

Transportation

Manufacturing, engineering and production environments

Standards and Certifications:

ANSI MC96.1

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Insulation Material	PVC Mylar
	Length	10m
	Thermocouple Type	J
	Maximum Operating Temperature	+105°C
	Screened/Unscreened	Screened
	Core Strands	7/0.2mm
	Cable Shape	Flat Pair
	Number of Strands	2
	Standards Met	ANSI

	Select all
	Brand RS PRO
	Insulation Material PVC Mylar
	Length 10m
	Thermocouple Type J
	Maximum Operating Temperature +105°C
	Screened/Unscreened Screened
	Core Strands 7/0.2mm
	Cable Shape Flat Pair
	Number of Strands 2
	Standards Met ANSI
