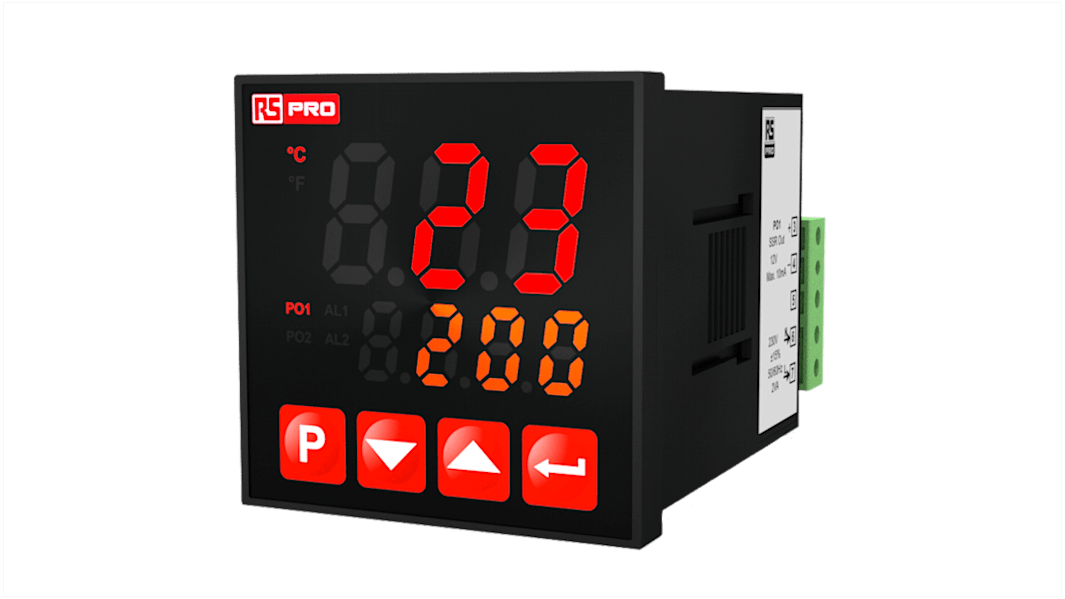

RS PRO Panel Mount PID Temperature Controller, 48 x 48mm 2 Input, 3 Output Relay, SSR, 24 V Supply Voltage PID

RS Stock No.:: 222-8116
Brand:: RS PRO

RS PRO Panel Mount PID Temperature Controller, 48 x 48mm 2 Input, 3 Output Relay, SSR, 24 V Supply Voltage PID

18 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$234.89

(exc. GST)

$258.38

(inc. GST)

Units	Per unit
1 - 4	$234.89
5 +	$193.31

RS Stock No.:: 222-8116
Brand:: RS PRO

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: TR

Product Details

RS PRO PID Temperature Controllers

Introducing a range of high-quality PID temperature control units from the trusted brand RS PRO. These controllers essentially use a control loop feedback that ensures the output required is delivered. By setting the controller you can keep the output constant based on the feedback from a temperature sensor.

Upon inspection, they are simple to set up, easy to use, and accurately control the temperatures of various equipment. Our PID temperature control units are standalone devices typically found in automated processes.

Features and Benefits

3 Digits process (PV) and 4 Digits set (SV) display

Programmable ON/OFF, P, PI, PD, and PID control forms

Adaptation of PID Coefficients to the system with self-tune and auto-tune

Programmable heating or cooling functions for control output

Selectable alarm functions for alarm output

Dimensions: 48 x 48 mm.

Specification

Process Input: TC, RTD

Thermocouple (TC): J, K, R, S, T, and L(IEC584.1) (ITS90)

Thermo-resistance(RTD): Cu-50 and PT-100 (IEC751) (ITS90)

Operating Temperature: 0 °C to +50 °C

Humidity: 90 % max. (none condensing)

Protection Class: IP65 at the front, IP20 at rear

Supply Voltage: 24 V or 100 V to 240 V ac (-%15, +%10) 50/60Hz

Alarm Output: Relay (5A@250V at resistive load)

RS PRO PID Temperature Control Unit Variants - 100 V to 240 V ac

Process O/P: SSR Driver Output (Maximum 10mA, Max. 12V) = RS stock no: 222-8113

Process O/P: Relay (5A@250V at resistive load or SSR Driver Output (Maximum 10mA, Max. 12V) = RS stock no: 222-8114

RS PRO PID Temperature Control Unit Variant -24V

Process O/P: Relay (5A@250V at resistive load or SSR Driver Output (Maximum 10mA, Max. 12V) = RS stock no: 222-8116

Applications

Automation & Control

Manufacturing

Industrial Control

FAQs

What does PID mean?

PID means Proportional Integral Derivative

Approvals

Specifications

Attribute	Value
Output Type	Relay, SSR
Supply Voltage	24 V
Size	48 x 48mm
Number of Inputs	2
Number of Outputs	3
Minimum Operating Temperature	0°C
Maximum Operating Temperature	+50°C
Temperature Range	0 → +50 °C
Control Type	PID Controller
Mounting Type	Panel Mount
Input Type	TC, RTD
Series	ECO
