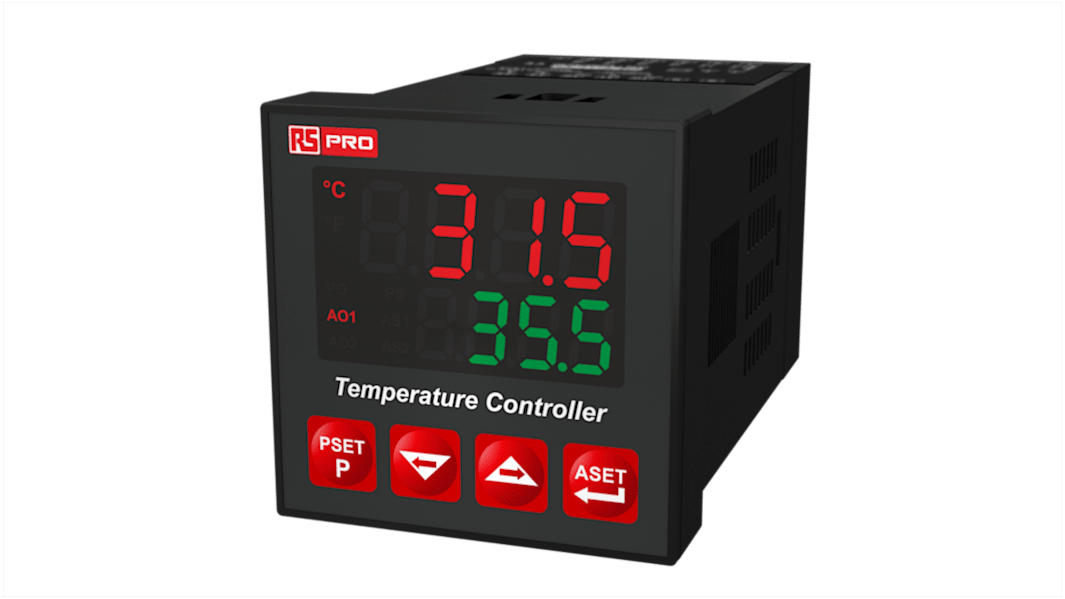

RS PRO Panel Mount PID Temperature Controller, 48 x 48mm 2 Input, 3 Output Relay, SSR, 230 V Supply Voltage ON/OFF, PID

RS Stock No.:: 222-8145
Brand:: RS PRO

RS PRO Panel Mount PID Temperature Controller, 48 x 48mm 2 Input, 3 Output Relay, SSR, 230 V Supply Voltage ON/OFF, PID

79 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$213.30

(exc. GST)

$234.63

(inc. GST)

Units	Per unit
1 +	$213.30

RS Stock No.:: 222-8145
Brand:: RS PRO

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: TR

Product Details

RS PRO Digital Temperature Controllers - ESM 4420 Series

Introducing a range of high-quality digital temperature control units from the trusted brand RS PRO. These universal input temperature controllers are designed to control and measure temperature values. Upon inspection, the units are sturdy, simple to set up, easy to use, and packed with features. Our digital temperature controllers are available with a choice in supply voltage and power, all operating with a high degree of accuracy.

Also known as

Bang-Bang Controllers

Features and Benefits

ESM 4420 Series

4 digits process(PV) and 4 digits process set value(SV) display

Universal process input (TC, RTD)

Configurable ON/OFF, P, PI, PD and PID control forms

Adaptation of PID Coefficients to the system with Self-Tune operation (Step Response Tuning)

Programmable Heating or Cooling Functions for Control Output

Alarm Functions for Alarm Output

Specification

Switching current: 5 A

Accuracy: 0.25% at Thermocouple, resistance thermometer

Ambient temperature: 0°C to +50°C

Storage temperature: -40°C to +85°C

Protection Class: NEMA 4X (IP65 at front, IP20 at rear)

Dimensions: 48 mm x 48 mm

Input

Process Inputs: Universal input TC, RTD

Thermocouple input types: Selectable by parameters J, K, R, S, T (IEC584.1) (ITS90)

Thermo-resistance input type: PT 100 (IEC751) (ITS90)

Output

Process Output: Relay (5A@250Vac. at resistive load) and SSR Driver Output: (Maximum 20mA@12Vdc)

Alarm Output: Relay (5A@250Vac.resistive load)

RS PRO ESM 4420 Series Variants

24 V, RS stock no: 222-8142

100 to 240 V, RS stock no: 222-8141

115 V, RS stock no: 222-8144

230 V, RS stock no: 222-8145

Application

Textiles

Automotive

Machine Production

Approvals

EAC, CE

Specifications

Attribute	Value
Output Type	Relay, SSR
Supply Voltage	230 V
Size	48 x 48mm
Number of Inputs	2
Number of Outputs	3
Minimum Operating Temperature	0°C
Maximum Operating Temperature	+50°C
Temperature Range	0 → +50 °C
Control Type	ON/OFF, PID Controller
Input Type	TC, RTD
Mounting Type	Panel Mount
