Hyperfast recovery time, extremely low Qrr
175 °C maximum operating junction temperature
For PFC CCM operation
APPLICATIONS:
State of the art hyperfast recovery rectifiers designed with optimized performance of forward voltage drop, hyperfast recovery time, and soft recovery. The planar structure and the platinum doped life time control guarantee the best overall performance, ruggedness and reliability characteristics. These devices are intended for use in PFC boost stage in the AC/DC section of SMPS inverters or as freewheeling diodes. Their extremely optimized stored charge and low recovery current minimize the switching losses and reduce overdissipation in the switching element and snubbers.

Select all	Attribute	Value
	Brand	Vishay
	Diode Configuration	Single
	Maximum Forward Current	5A
	Number of Elements per Chip	1
	Mounting Type	Surface Mount
	Maximum Reverse Voltage	600V
	Package Type	TO-252AA
	Pin Count	3 + Tab
	Maximum Diode Capacitance	3.5pF
	Minimum Operating Temperature	-65 °C
	Maximum Operating Temperature	+175 °C
	Length	6.73mm
	Width	6.22mm
	Height	2.26mm
	Dimensions	6.73 x 6.22 x 2.26mm

	Select all
	Brand Vishay
	Diode Configuration Single
	Maximum Forward Current 5A
	Number of Elements per Chip 1
	Mounting Type Surface Mount
	Maximum Reverse Voltage 600V
	Package Type TO-252AA
	Pin Count 3 + Tab
	Maximum Diode Capacitance 3.5pF
	Minimum Operating Temperature -65 °C
	Maximum Operating Temperature +175 °C
	Length 6.73mm
	Width 6.22mm
	Height 2.26mm
	Dimensions 6.73 x 6.22 x 2.26mm

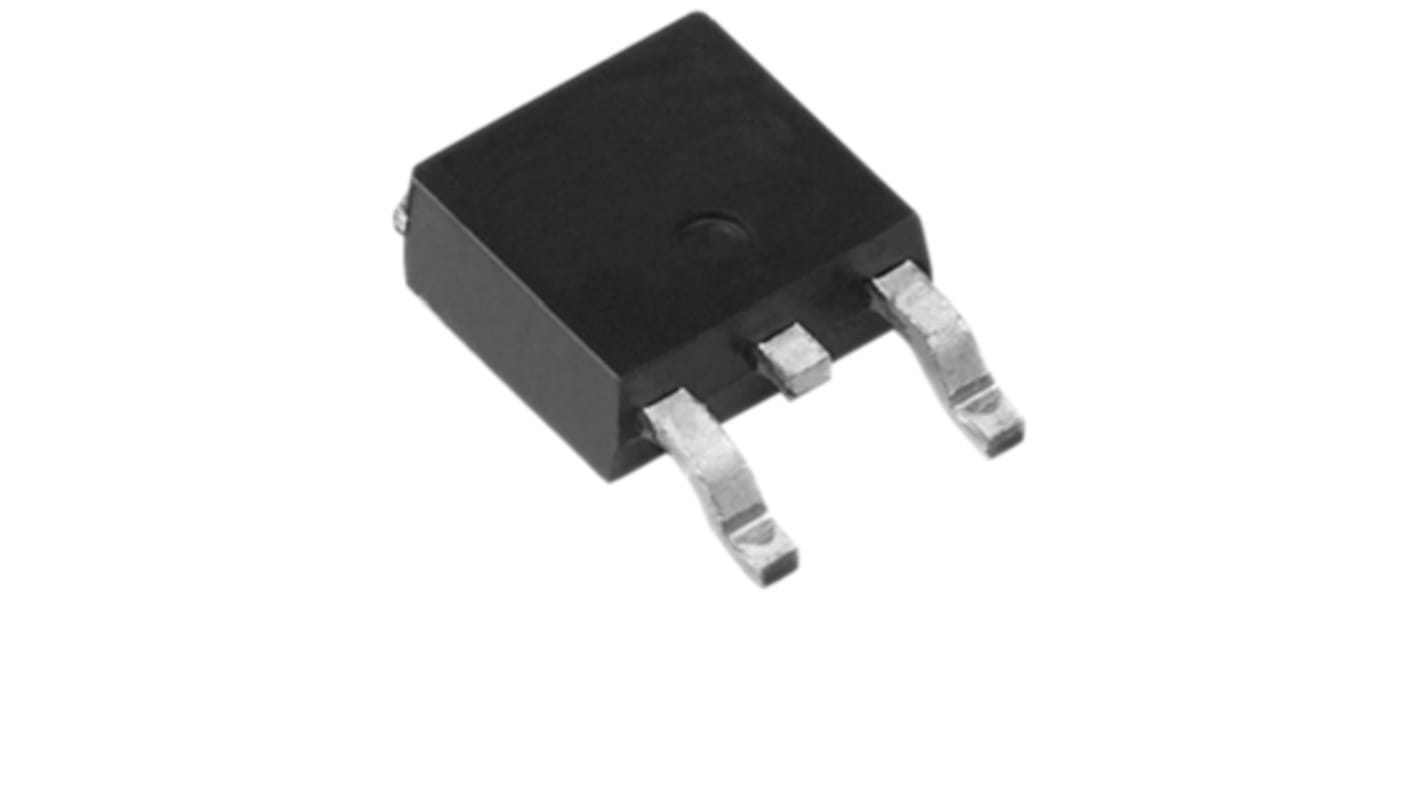

Vishay Switching Diode, 5A 600V, 3 + Tab-Pin TO-252AA VS-5EWX06FN-M3
