Sensata Crydom HDC Series Solid State Relay, 160 A Load, Panel Mount, 150 V dc Load, 32 V dc Control
- RS Stock No.:
- 776-1406
- Distrelec Article No.:
- 300-84-122
- Mfr. Part No.:
- HDC200D160
- Brand:
- Sensata / Crydom

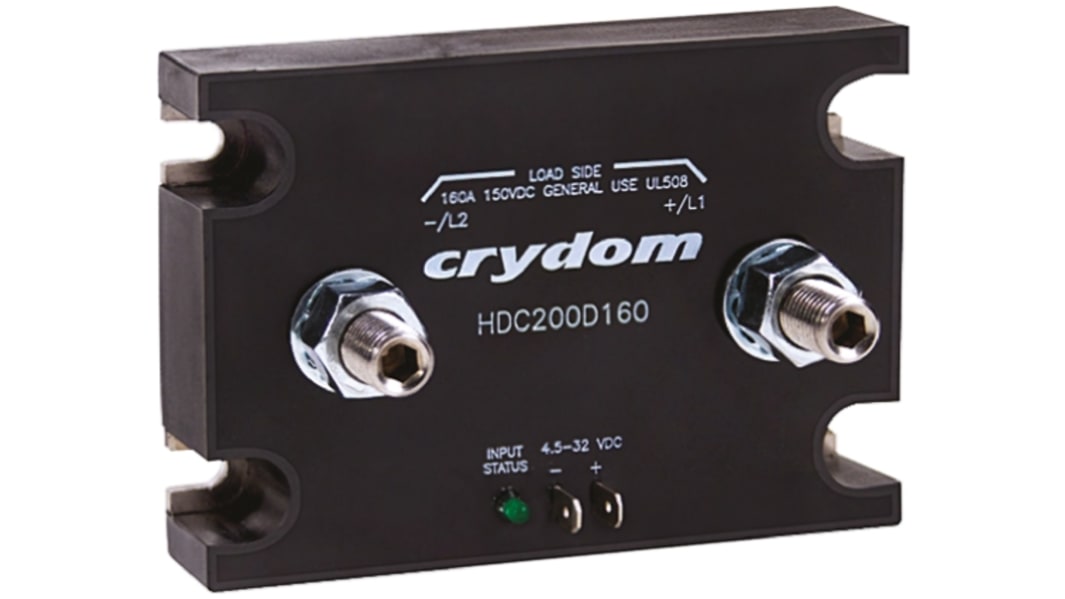

This image is representative of the product range
Subtotal (1 unit)**
$491.54
(exc. GST)
$540.69
(inc. GST)
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over $60.00 ex GST
Units | Per unit |
|---|---|
| 1 + | $491.54 |
**price indicative
- RS Stock No.:
- 776-1406
- Distrelec Article No.:
- 300-84-122
- Mfr. Part No.:
- HDC200D160
- Brand:
- Sensata / Crydom
Select all | Attribute | Value |
|---|---|---|
| Brand | Sensata / Crydom | |
| Maximum Load Current | 160 A | |
| Mounting Type | Panel Mount | |
| Maximum Load Voltage | 150 V dc | |
| Minimum Load Voltage | 7 V dc | |
| Maximum Control Voltage | 32 V dc | |
| Minimum Control Voltage | 4.5 V dc | |
| Switching Type | DC | |
| Control Voltage Range | 4.5 → 32 V dc | |
| Minimum Load Current | 2.5 mA | |
| Terminal Type | Quick Connect | |
| Relay Type | Solid State Relay | |
| Maximum Turn On Time | 12 μs, 92 μs | |
| Load Voltage Range | 7 → 150V dc | |
| Series | HDC | |
| Dimensions | 104 x 20.1 x 73.5mm | |
| Operating Temperature Range | -30 → +80°C | |
| Special Features | LED Status Indicator, Heavy Duty Stud Terminals | |
| Height | 73.5mm | |
| Depth | 20.1mm | |
| Minimum Operating Temperature | -30°C | |
| Off State Leakage Current | 0.2 mA | |
| Length | 104mm | |
| Maximum Operating Temperature | +80°C | |
Select all | ||
|---|---|---|
Brand Sensata / Crydom | ||
Maximum Load Current 160 A | ||
Mounting Type Panel Mount | ||
Maximum Load Voltage 150 V dc | ||
Minimum Load Voltage 7 V dc | ||
Maximum Control Voltage 32 V dc | ||
Minimum Control Voltage 4.5 V dc | ||
Switching Type DC | ||
Control Voltage Range 4.5 → 32 V dc | ||
Minimum Load Current 2.5 mA | ||
Terminal Type Quick Connect | ||
Relay Type Solid State Relay | ||
Maximum Turn On Time 12 μs, 92 μs | ||
Load Voltage Range 7 → 150V dc | ||
Series HDC | ||
Dimensions 104 x 20.1 x 73.5mm | ||
Operating Temperature Range -30 → +80°C | ||
Special Features LED Status Indicator, Heavy Duty Stud Terminals | ||
Height 73.5mm | ||
Depth 20.1mm | ||
Minimum Operating Temperature -30°C | ||
Off State Leakage Current 0.2 mA | ||
Length 104mm | ||
Maximum Operating Temperature +80°C | ||
