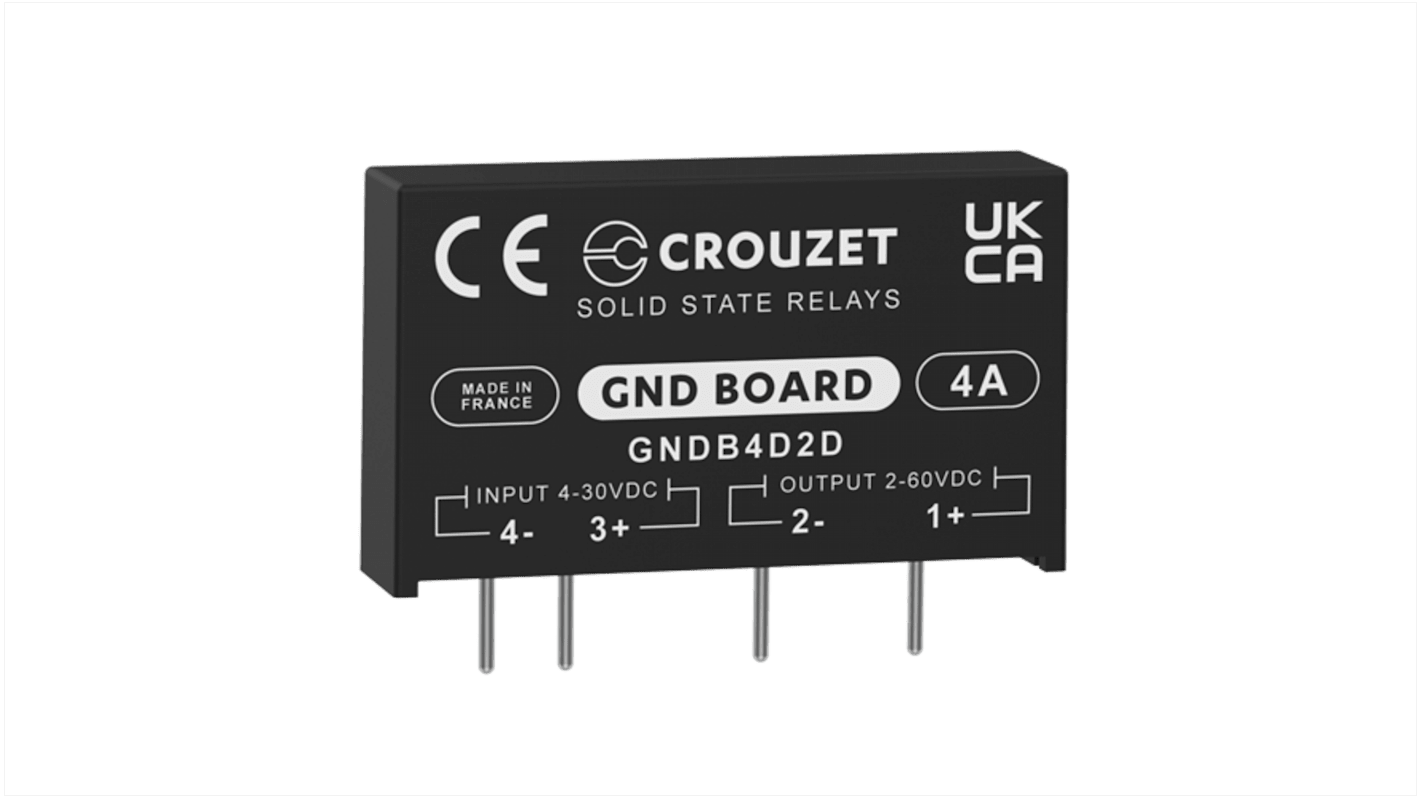

Crouzet GND Board Series Solid State Relay, 4 A Load, PCB Mount, 60 Vrms Load, 30V Control
- RS Stock No.:
- 254-8483
- Distrelec Article No.:
- 303-10-492
- Mfr. Part No.:
- GNDB4D2D
- Brand:
- Crouzet
Subtotal (1 unit)*
$50.52
(exc. GST)
$55.57
(inc. GST)
FREE delivery for orders over $60.00 ex GST
Limited stock
- 56 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | $50.52 |
*price indicative
- RS Stock No.:
- 254-8483
- Distrelec Article No.:
- 303-10-492
- Mfr. Part No.:
- GNDB4D2D
- Brand:
- Crouzet
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Crouzet | |
| Product Type | Solid State Relay | |
| Maximum Load Current | 4A | |
| Mount Type | PCB | |
| Maximum Load Voltage | 60Vrms | |
| Minimum Load Voltage | 2Vrms | |
| Minimum Control Voltage | 4V | |
| Maximum Control Voltage | 30V | |
| Series | GND Board | |
| Terminal Type | Through Hole | |
| Contact Configuration | SPST | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 80°C | |
| Length | 24.4mm | |
| Width | 10.2 mm | |
| Standards/Approvals | RoHS | |
| Height | 13mm | |
| Output Type | Current/Voltage | |
| Select all | ||
|---|---|---|
Brand Crouzet | ||
Product Type Solid State Relay | ||
Maximum Load Current 4A | ||
Mount Type PCB | ||
Maximum Load Voltage 60Vrms | ||
Minimum Load Voltage 2Vrms | ||
Minimum Control Voltage 4V | ||
Maximum Control Voltage 30V | ||
Series GND Board | ||
Terminal Type Through Hole | ||
Contact Configuration SPST | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 80°C | ||
Length 24.4mm | ||
Width 10.2 mm | ||
Standards/Approvals RoHS | ||
Height 13mm | ||
Output Type Current/Voltage | ||
- COO (Country of Origin):
- FR
The Crouzet GNB Series is a Solid State Relays that is designed to be used in almost any application, offering very long life expectancy and are easy to install, easy to use, robust and multipurpose.
Output current of 4 Amps
Classic SIP package for printed circuit boards
Zero Cross and Special Zero Cross Switching
Built-in Output Overvoltage Protection
