Nidec Components Surface Mount Slide Switch SPDT 200mA Slide
- RS Stock No.:
- 196-8128
- Mfr. Part No.:
- CL-SB-12B-11
- Brand:
- Nidec Components
10 In Global stock for delivery within 5 working day(s)
Price (ex. GST) Each (In a Pack of 10)
Was $1.14
You pay
$0.872
(exc. GST)
$0.959
(inc. GST)
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 20 | $0.872 | $8.72 |
| 30 - 40 | $0.858 | $8.58 |
| 50 + | $0.841 | $8.41 |
*price indicative
- RS Stock No.:
- 196-8128
- Mfr. Part No.:
- CL-SB-12B-11
- Brand:
- Nidec Components
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

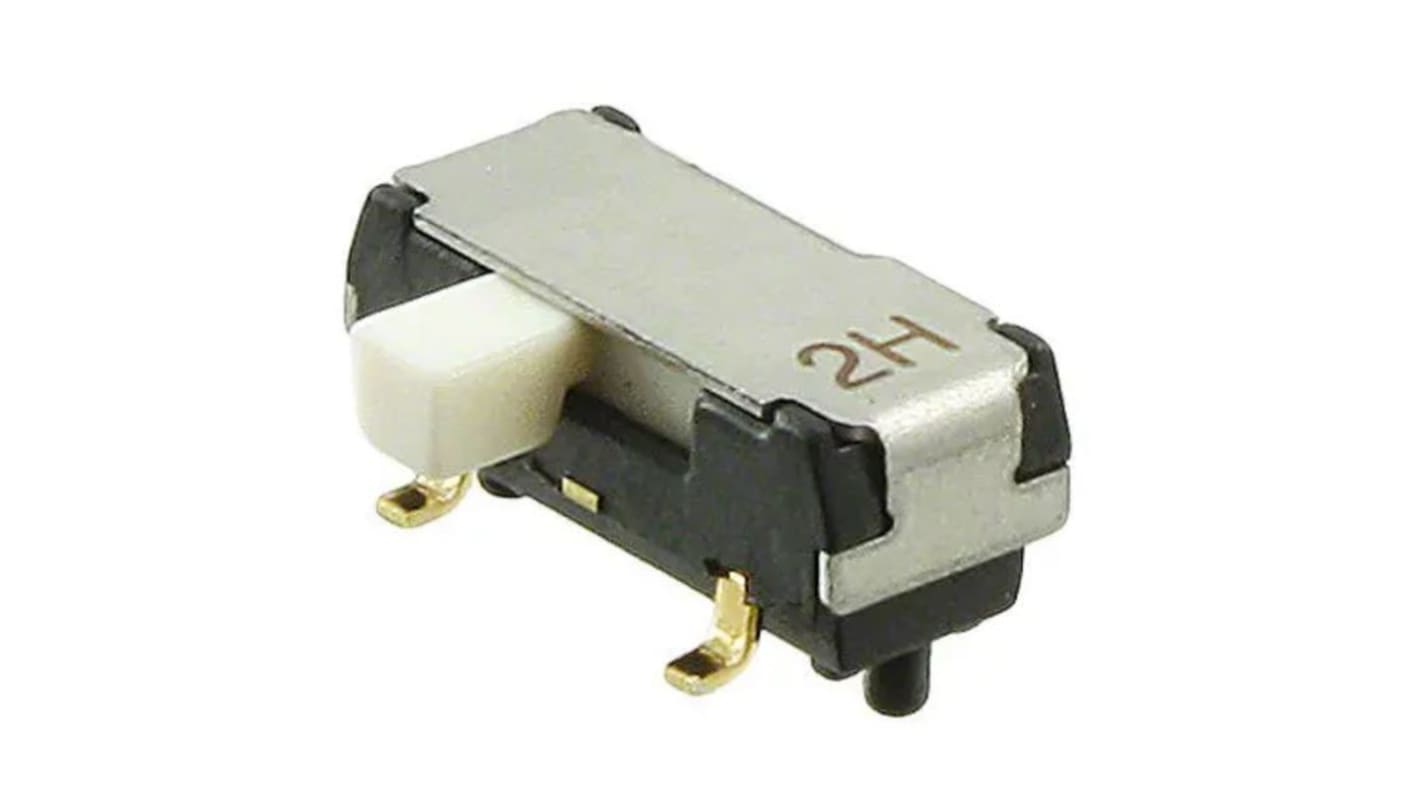

Copal Electronics CL-SB-12B-11 is a SPDT 2-position slide switch having DC current rating of 2000mA. The contact material is Copper whereas the contact finish is Silver. Its polyamide (PA),nylon actuator is 2mm in length. It has a wide variety like circuit composition, operating direction, terminal shape J-hook, Gull wing, through hole pins. CL-SB-12B-11 SPDT slide switch adopted twin-contact mechanism. These switches are ROHS compliant. CL-SB-12B-11 SPDT slide switches consists of 500 pieces per reel which weighs 5 grams.
On-On switch function with 10,000 electrical life cycles with an operating force of 153gf
Standardization of the silver as well as gold contacts
Uses a heat-resistant resin to support reflow soldering mounting
The minimum insulation resistance is 100MΩ and maximum contact resistance is 50mΩ
Switch Travel Time is 200mm
Standardization of the silver as well as gold contacts
Uses a heat-resistant resin to support reflow soldering mounting
The minimum insulation resistance is 100MΩ and maximum contact resistance is 50mΩ
Switch Travel Time is 200mm
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SPDT |
| Mounting Type | Surface Mount |
| Contact Current Rating | 200mA |
| Terminal Type | Gull Wing |
| Actuator Type | Slide |
| Length | 8.5mm |
| Width | 5.5mm |
| Depth | 4.3mm |
| Dimensions | 8.5 x 5.5 x 4.3mm |
| Contact Resistance | 50mΩ |
| Voltage Rating | 12V |
| Mechanical Life | 10000Operations |
| Minimum Operating Temperature | -40°C |
| Actuator Material | Polyamide |
| Maximum Operating Temperature | +85°C |
| Contact Material | Silver |
| Operating Temperature Range | -40 → +85°C |
