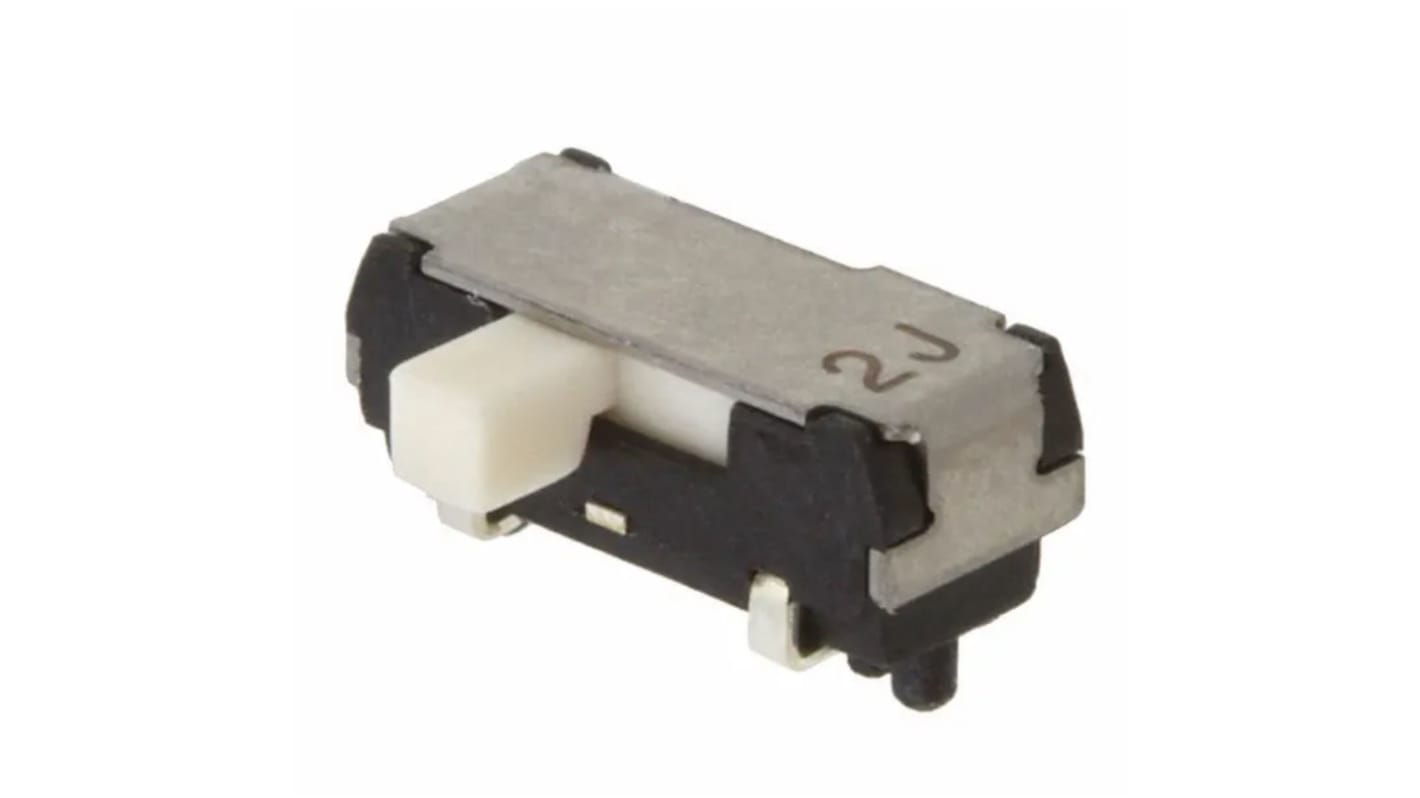

Copal Electronics CL-SB-12A-11 is a SPDT 2-position slide switch having DC current rating of 2000mA. The contact material is Copper whereas the contact finish is Gold. Its polyamide (PA),nylon actuator is 2mm in length. It has a wide variety like circuit composition, operating direction, terminal shape J-hook, Gull wing, through hole pins. CL-SB-12A-11 SPDT slide switch adopted twin-contact mechanism. These switches are ROHS compliant. CL-SB-12A-12 SPDT slide switches consists of 500 pieces per reel which weighs 5 grams.

On-On switch function with 10,000 electrical life cycles with an operating force of 153gf
Standardization of the silver as well as gold contacts
Uses a heat-resistant resin to support reflow soldering mounting
The minimum insulation resistance is 100MΩ and maximum contact resistance is 50mΩ
Switch Travel Time is 200mm

Units	Per unit	Per Pack**
10 - 20	$1.86	$18.60
30 - 40	$1.814	$18.14
50 +	$1.786	$17.86

Select all	Attribute	Value
	Brand	Nidec Components
	Contact Configuration	SPDT
	Mounting Type	Surface Mount
	Contact Current Rating	200mA
	Terminal Type	J-Hook
	Actuator Type	Slide
	Length	8.5mm
	Width	5.5mm
	Depth	4.3mm
	Dimensions	8.5 x 5.5 x 4.3mm
	Contact Resistance	50mΩ
	Voltage Rating	12V
	Mechanical Life	10000Operations
	Minimum Operating Temperature	-40°C
	Operating Temperature Range	-40 → +85°C
	Contact Material	Silver
	Maximum Operating Temperature	+85°C
	Actuator Material	Polyamide

	Select all
	Brand Nidec Components
	Contact Configuration SPDT
	Mounting Type Surface Mount
	Contact Current Rating 200mA
	Terminal Type J-Hook
	Actuator Type Slide
	Length 8.5mm
	Width 5.5mm
	Depth 4.3mm
	Dimensions 8.5 x 5.5 x 4.3mm
	Contact Resistance 50mΩ
	Voltage Rating 12V
	Mechanical Life 10000Operations
	Minimum Operating Temperature -40°C
	Operating Temperature Range -40 → +85°C
	Contact Material Silver
	Maximum Operating Temperature +85°C
	Actuator Material Polyamide

Nidec Components Surface Mount Slide Switch SPDT 200mA Slide
