Nidec Components Surface Slide Switch DPDT 100mA Polyamide
- RS Stock No.:
- 179-6938
- Mfr. Part No.:
- CAS-220A1
- Brand:
- Nidec Components

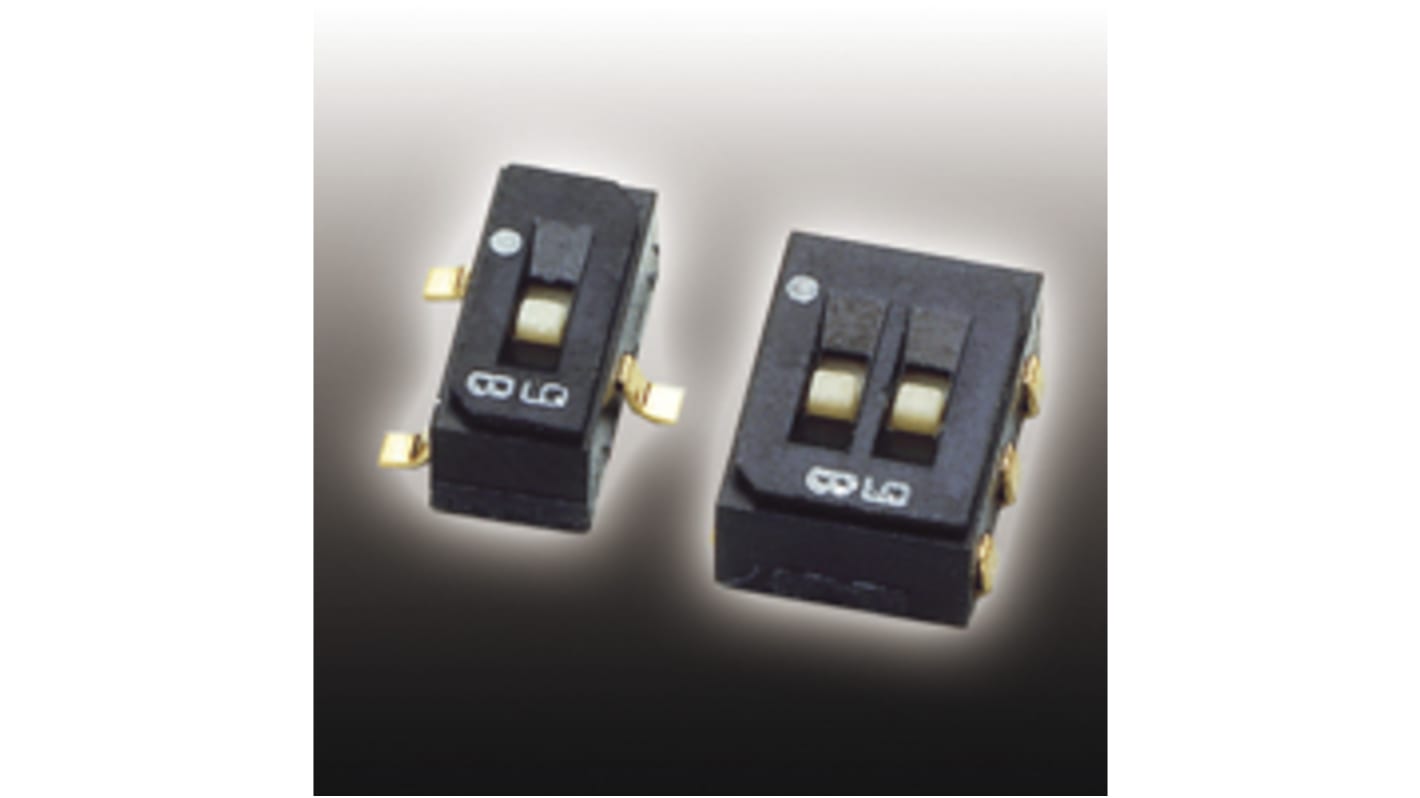

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 5 units)*
$20.06
(exc. GST)
$22.065
(inc. GST)
FREE delivery for orders over $80.00 ex GST
In Stock
- 5 unit(s) ready to ship from another location
- Plus 40 unit(s) shipping from 19 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | $4.012 | $20.06 |
| 25 - 45 | $3.91 | $19.55 |
| 50 + | $3.85 | $19.25 |
*price indicative
- RS Stock No.:
- 179-6938
- Mfr. Part No.:
- CAS-220A1
- Brand:
- Nidec Components
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nidec Components | |
| Contact Configuration | DPDT | |
| Product Type | Slide Switch | |
| Mount Type | Surface | |
| Switch Contact Current | 100mA | |
| Terminal Type | J hook | |
| Illuminated | No | |
| Contact DC Voltage | 50V dc | |
| Switch Configuration | On-On | |
| Standards/Approvals | RoHS, UL | |
| Width | 3.9mm | |
| Length | 5.4mm | |
| Series | CAS | |
| Depth | 2.4mm | |
| Mechanical Life | 2000Cycles | |
| Maximum Operating Temperature | 85°C | |
| Minimum Operating Temperature | -40°C | |
| Actuator Material | Polyamide | |
| Select all | ||
|---|---|---|
Brand Nidec Components | ||
Contact Configuration DPDT | ||
Product Type Slide Switch | ||
Mount Type Surface | ||
Switch Contact Current 100mA | ||
Terminal Type J hook | ||
Illuminated No | ||
Contact DC Voltage 50V dc | ||
Switch Configuration On-On | ||
Standards/Approvals RoHS, UL | ||
Width 3.9mm | ||
Length 5.4mm | ||
Series CAS | ||
Depth 2.4mm | ||
Mechanical Life 2000Cycles | ||
Maximum Operating Temperature 85°C | ||
Minimum Operating Temperature -40°C | ||
Actuator Material Polyamide | ||
- COO (Country of Origin):
- CN
Compatible with most automatic pick & place machinery
Compact and space saving SMD type
Excellent Contact stability by twin Gold-Plated Contact
Low profile Design of 2.5 mm
