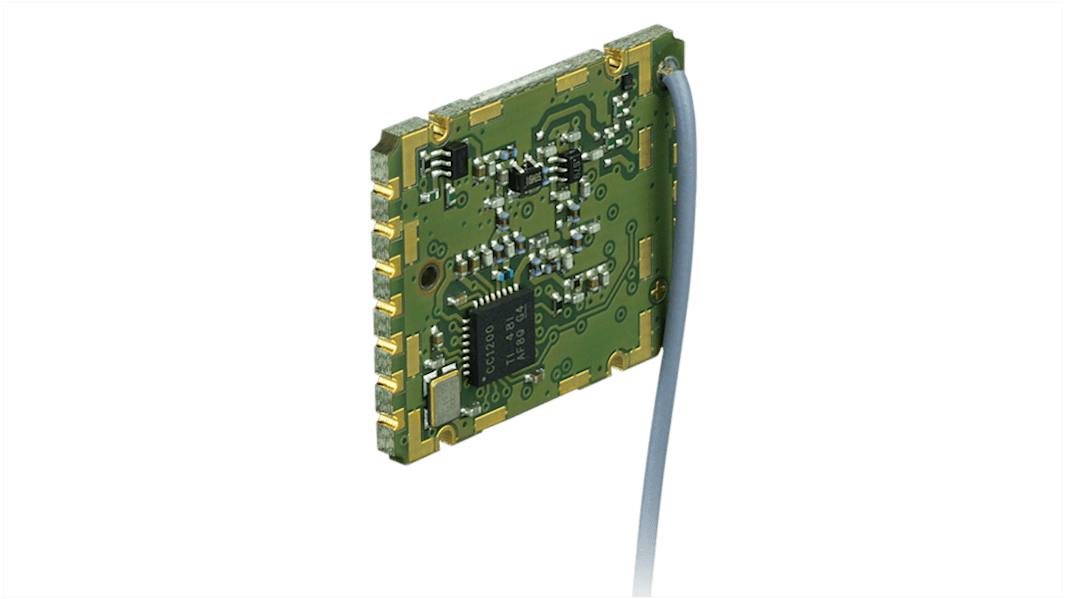

ZF AFZE-1005 RF Receiver Module RF Board 868 MHz 24 V
- RS Stock No.:
- 873-6687
- Mfr. Part No.:
- AFZE-1005
- Brand:
- ZF
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 873-6687
- Mfr. Part No.:
- AFZE-1005
- Brand:
- ZF
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ZF | |
| Product Type | RF Receiver Module RF Board | |
| Sub Type | Receiver | |
| Component Type | Module | |
| Frequency | 868MHz | |
| Receiver Sensitivity | -95dBm | |
| Interface Type | RS232, TTL | |
| Minimum Supply Voltage | 5V | |
| Maximum Supply Voltage | 24V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Width | 30.5 mm | |
| Standards/Approvals | No | |
| Series | AFZE | |
| Length | 77mm | |
| Select all | ||
|---|---|---|
Brand ZF | ||
Product Type RF Receiver Module RF Board | ||
Sub Type Receiver | ||
Component Type Module | ||
Frequency 868MHz | ||
Receiver Sensitivity -95dBm | ||
Interface Type RS232, TTL | ||
Minimum Supply Voltage 5V | ||
Maximum Supply Voltage 24V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Width 30.5 mm | ||
Standards/Approvals No | ||
Series AFZE | ||
Length 77mm | ||
- COO (Country of Origin):
- DE
Energy Harvesting Receiver Board
This receiver module works with Energy Harvesting wireless switches to receive data transfer via RF technology (Rocker – Stock no 8736671 & Snap – Stock no 8736675). The system eliminates the need for complex wire assemblies and increases flexibility for use in previously inaccessible locations. Flexible pairing allows the operation of several receivers with one switch and vice-versa, and the “Unique ID” excludes mutual interference between different RF switches.
• Various output options
• 868 MHz and 915 MHz frequency bands allow global use within different applications
• Network compatible
