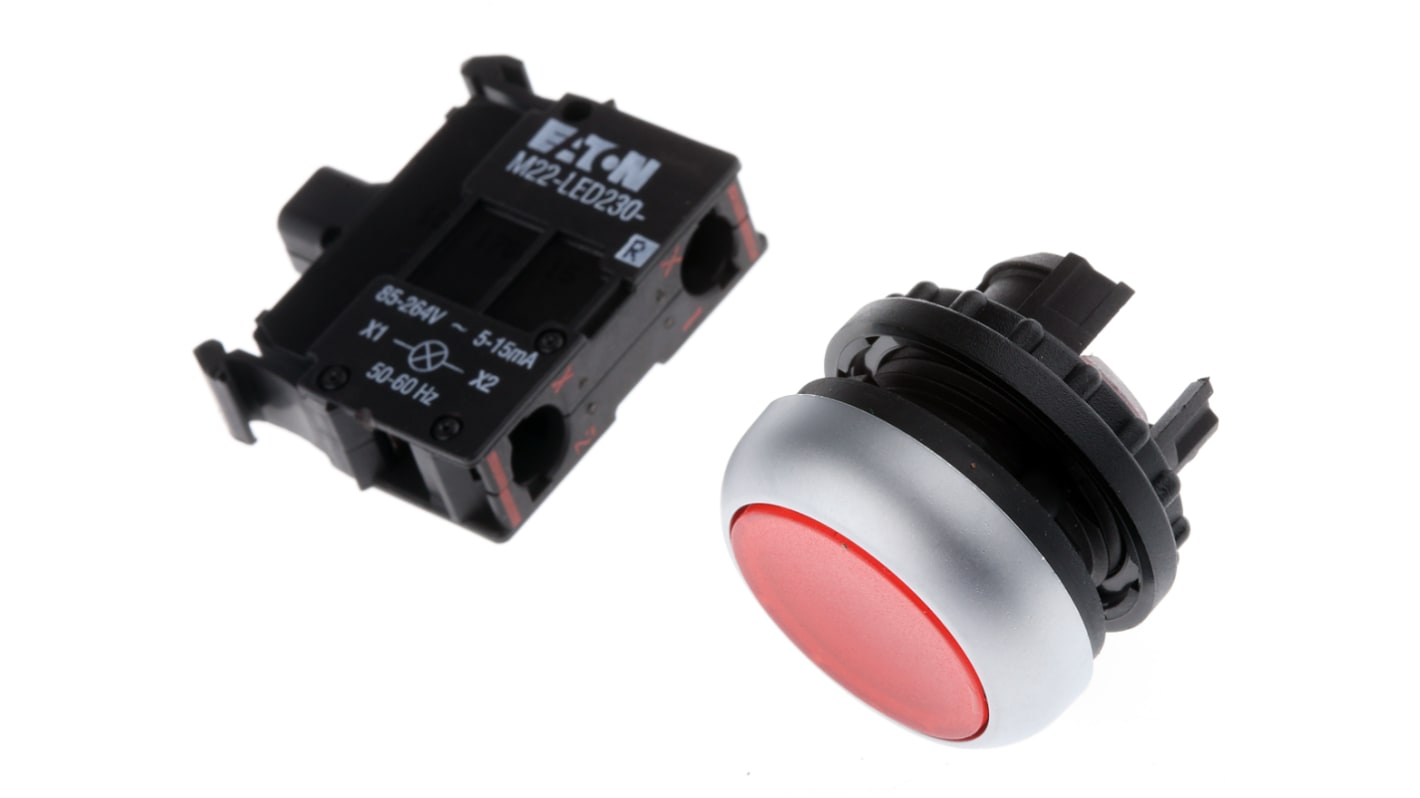

Eaton RMQ Titan M22 Series Red Illuminated Momentary Push Button Head, 22mm Cutout, IP69K
- RS Stock No.:
- 454-8461
- Mfr. Part No.:
- 78639212 M22-DL-R+M22-A+M22-LED230-R
- Brand:
- Eaton
9 In Global stock for delivery within 10 working day(s)
Price (ex. GST) Each
$78.83
(exc. GST)
$86.71
(inc. GST)
| Units | Per unit |
| 1 + | $78.83 |
- RS Stock No.:
- 454-8461
- Mfr. Part No.:
- 78639212 M22-DL-R+M22-A+M22-LED230-R
- Brand:
- Eaton
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Illuminated Pushbutton
The RMQ-Titan M22 series from Eaton offers a wide range of attractive, ergonomically designed illuminated and non-illuminated push-buttons including LED elements, selector switches, key switches, push-pulls, alternate action and twist-to-release operators.
This comprehensive range of pilot devices is engineered to ensure that your machines, systems, and processes keep running smoothly and offers a wide variety of applications and processes. Designed for optimal functionality with a high degree of protection this range offers a wide range of solutions for your business
This comprehensive range of pilot devices is engineered to ensure that your machines, systems, and processes keep running smoothly and offers a wide variety of applications and processes. Designed for optimal functionality with a high degree of protection this range offers a wide range of solutions for your business
Choice of colours complete with fixing adapter and LED element
Two voltages available
22mm pushbutton assembly
Two voltages available
22mm pushbutton assembly
Eaton Fixing Adapter M22-A
Forming part of Eaton's M22 range is this fixing adaptor, also referred to as a mounting adaptor or mounting clamp. This adaptor is front mounting for 3 contact LED elements.
Note
Switch body supplied separately.
Standards
IEC/EN60947.
Approvals
UL, CSA.
Eaton RMQ Titan
Note
Eaton formerly known as Moeller
Specifications
Attribute | Value |
|---|---|
| Series | RMQ Titan M22 |
| Cutout Diameter | 22mm |
| Push Button Colour | Red |
| Push Button Actuation | Momentary |
| Push Button Style | Round |
| Push Button Material | Plastic |
| IP Rating | IP69K |
| Push Button Diameter | 29.7mm |
| Illuminated | Yes |
| Terminal Type | Screw |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +70°C |
