OEP Surface Pulse Transformer 1:1:1 Turns Ratio, 3 mH Prim. Inductance, 0.65Ω Prim. Resistance
- RS Stock No.:
- 667-5940
- Mfr. Part No.:
- PT6SM
- Brand:
- OEP
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
$10.63
(exc. GST)
$11.69
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- 126 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
- RS Stock No.:
- 667-5940
- Mfr. Part No.:
- PT6SM
- Brand:
- OEP
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.

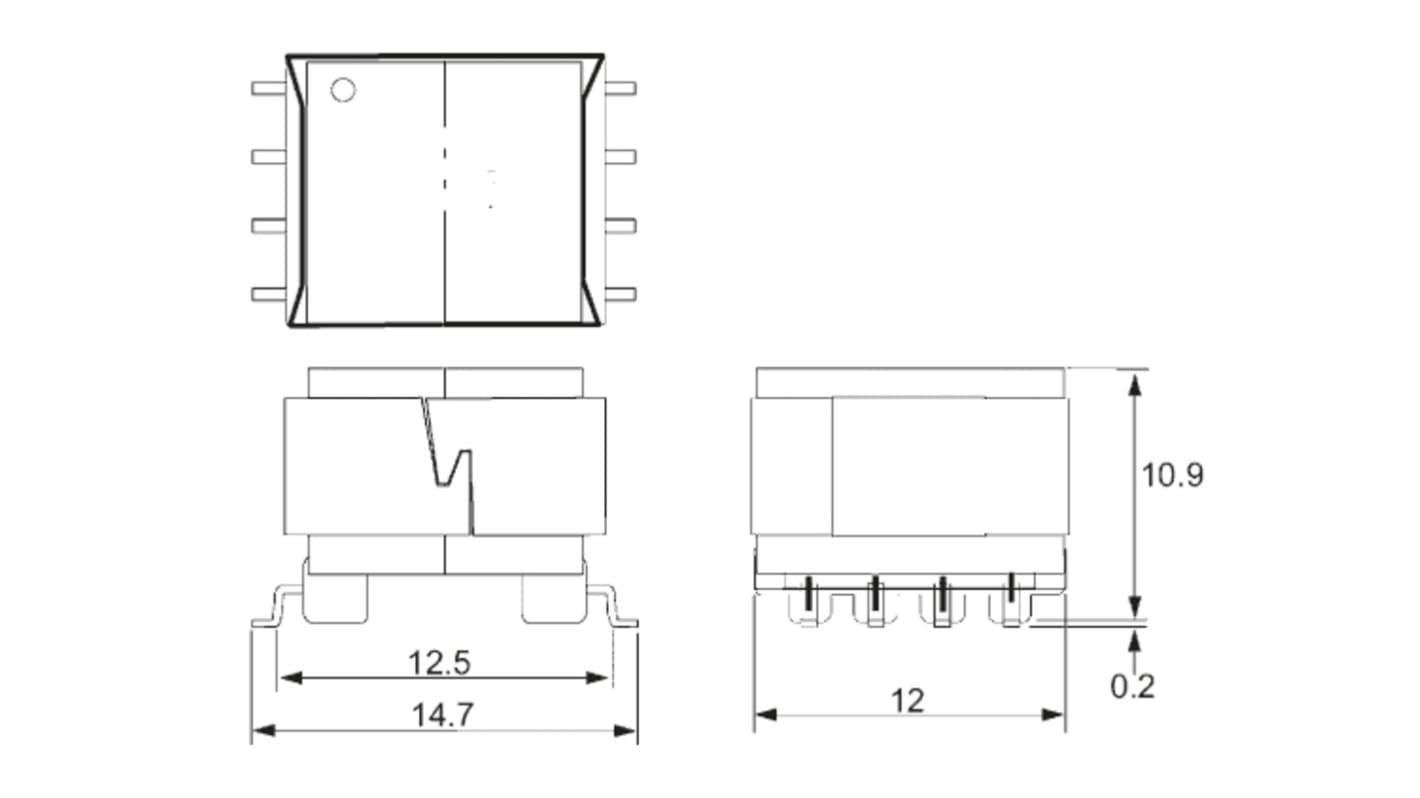

Select all | Attribute | Value |
|---|---|---|
| Brand | OEP | |
| Primary Inductance | 3mH | |
| Product Type | Pulse Transformer | |
| Primary DC Resistance | 0.65Ω | |
| Secondary DC Resistance | 0.55Ω | |
| Turns Ratio | 1:1:1 | |
| Mount Type | Surface | |
| Leakage Inductance | 1.8μH | |
| Series | PT6SM | |
| Width | 17mm | |
| Depth | 11.95mm | |
| Standards/Approvals | UL 94 V-0 | |
| Length | 13.1mm | |
| Isolation Voltage | 1.5kVrms | |
| Select all | ||
|---|---|---|
Brand OEP | ||
Primary Inductance 3mH | ||
Product Type Pulse Transformer | ||
Primary DC Resistance 0.65Ω | ||
Secondary DC Resistance 0.55Ω | ||
Turns Ratio 1:1:1 | ||
Mount Type Surface | ||
Leakage Inductance 1.8μH | ||
Series PT6SM | ||
Width 17mm | ||
Depth 11.95mm | ||
Standards/Approvals UL 94 V-0 | ||
Length 13.1mm | ||
Isolation Voltage 1.5kVrms | ||
Open & Encapsulated PCB Mount HF Pulse Transformers
Open or encapsulated PCB mounting transformers, designed for wide band and general pulse applications, in particular thyristor and triac control systems, where they provide isolation between firing circuit and load.
