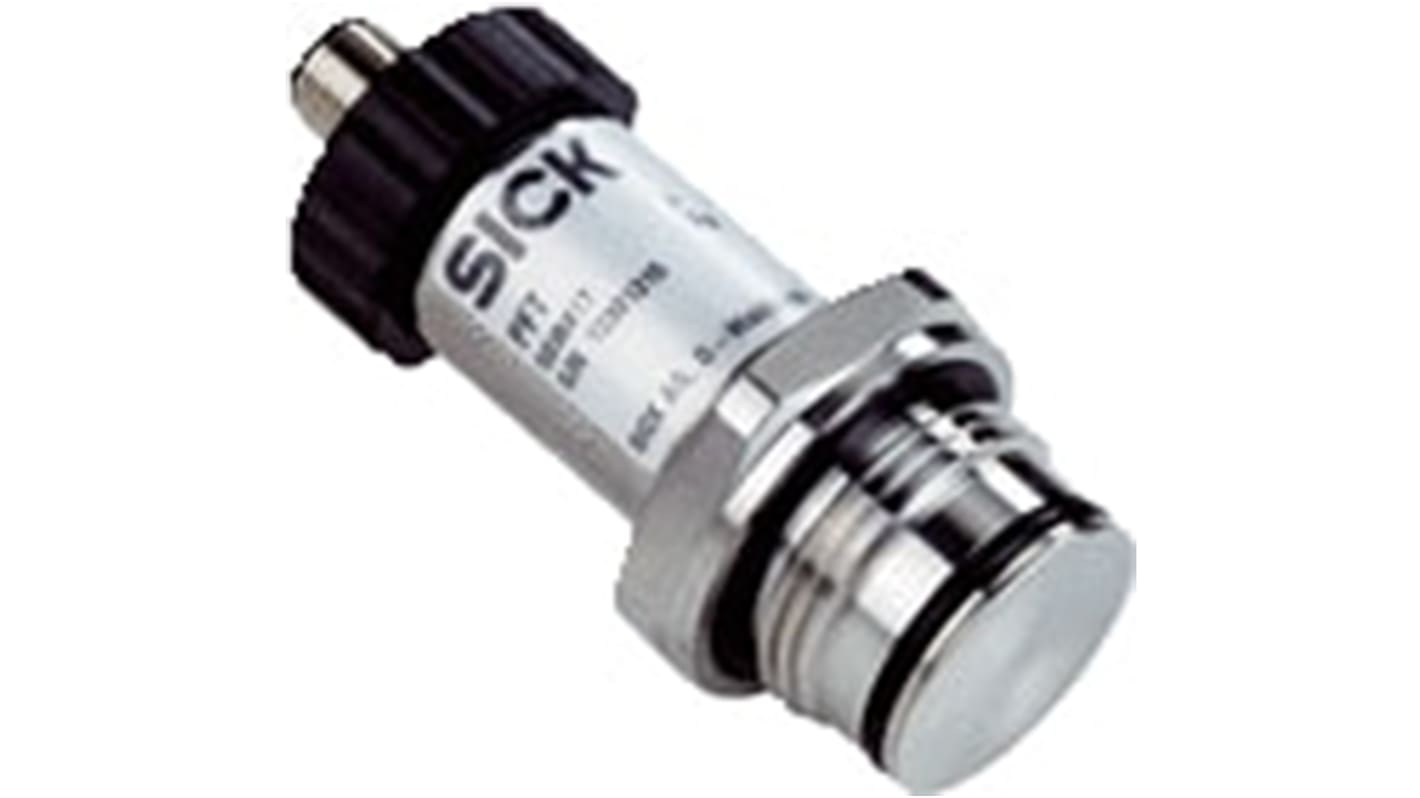

SICK PFT Series Pressure Sensor, 2-Wire mA, 4 to 20 mA Output 0 bar 0.1 bar, Gauge Reading
- RS Stock No.:
- 175-5064
- Mfr. Part No.:
- PFT-FRBX10SF10SSAMSSZ
- Brand:
- SICK
Subtotal (1 unit)*
$1,101.50
(exc. GST)
$1,211.65
(inc. GST)
FREE delivery for orders over $80.00 ex GST
Stocked by manufacturer
- Ready to ship from 24 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | $1,101.50 |
*price indicative
- RS Stock No.:
- 175-5064
- Mfr. Part No.:
- PFT-FRBX10SF10SSAMSSZ
- Brand:
- SICK
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SICK | |
| Product Type | Pressure Sensor | |
| Maximum Pressure Measurement | 0.1bar | |
| Pressure Reading Type | Gauge | |
| Minimum Pressure Measurement | 0bar | |
| Accuracy | 0.5 % | |
| Output Type | 2-Wire mA, 4 to 20 mA | |
| Media Measured | Liquid, Gas | |
| Minimum Supply Voltage | 10V | |
| Response Time | 1ms | |
| Series | PFT | |
| Maximum Supply Voltage | 30V | |
| Housing Material | 1.4571 Stainless Steel | |
| Standards/Approvals | CE Certified | |
| Maximum Operating Temperature | 80°C | |
| Minimum Operating Temperature | -20°C | |
| IP Rating | IP67 | |
| Mount Type | Screw | |
| Select all | ||
|---|---|---|
Brand SICK | ||
Product Type Pressure Sensor | ||
Maximum Pressure Measurement 0.1bar | ||
Pressure Reading Type Gauge | ||
Minimum Pressure Measurement 0bar | ||
Accuracy 0.5 % | ||
Output Type 2-Wire mA, 4 to 20 mA | ||
Media Measured Liquid, Gas | ||
Minimum Supply Voltage 10V | ||
Response Time 1ms | ||
Series PFT | ||
Maximum Supply Voltage 30V | ||
Housing Material 1.4571 Stainless Steel | ||
Standards/Approvals CE Certified | ||
Maximum Operating Temperature 80°C | ||
Minimum Operating Temperature -20°C | ||
IP Rating IP67 | ||
Mount Type Screw | ||
- COO (Country of Origin):
- DE
The PFT is distinguished by its high-quality measurement technology. The device is well suited to solve demanding measurement tasks in industrial applications. The pressure transmitter PFT is designed for pressure measurement in liquid and gaseous media. The PFT targets industrial applications such as in machine and plant engineering, in machine tool systems, in hydraulic and pneumatic systems, for pressure control systems and for pumps and compressors. Starting from a smallest measurement range of 0…0.1 bar, there is a large number of measurement ranges available up to 600 bar.
Wide application range
High accuracy across wide temperature range
Large number of configurations possible to meet customer requirements
Trouble-free as no moving parts: No mechanical wear, fatigueproof, maintenance-free
Insensitive against corrosive media through hermetically sealed stainless steel membrane
Quick and simple installation
