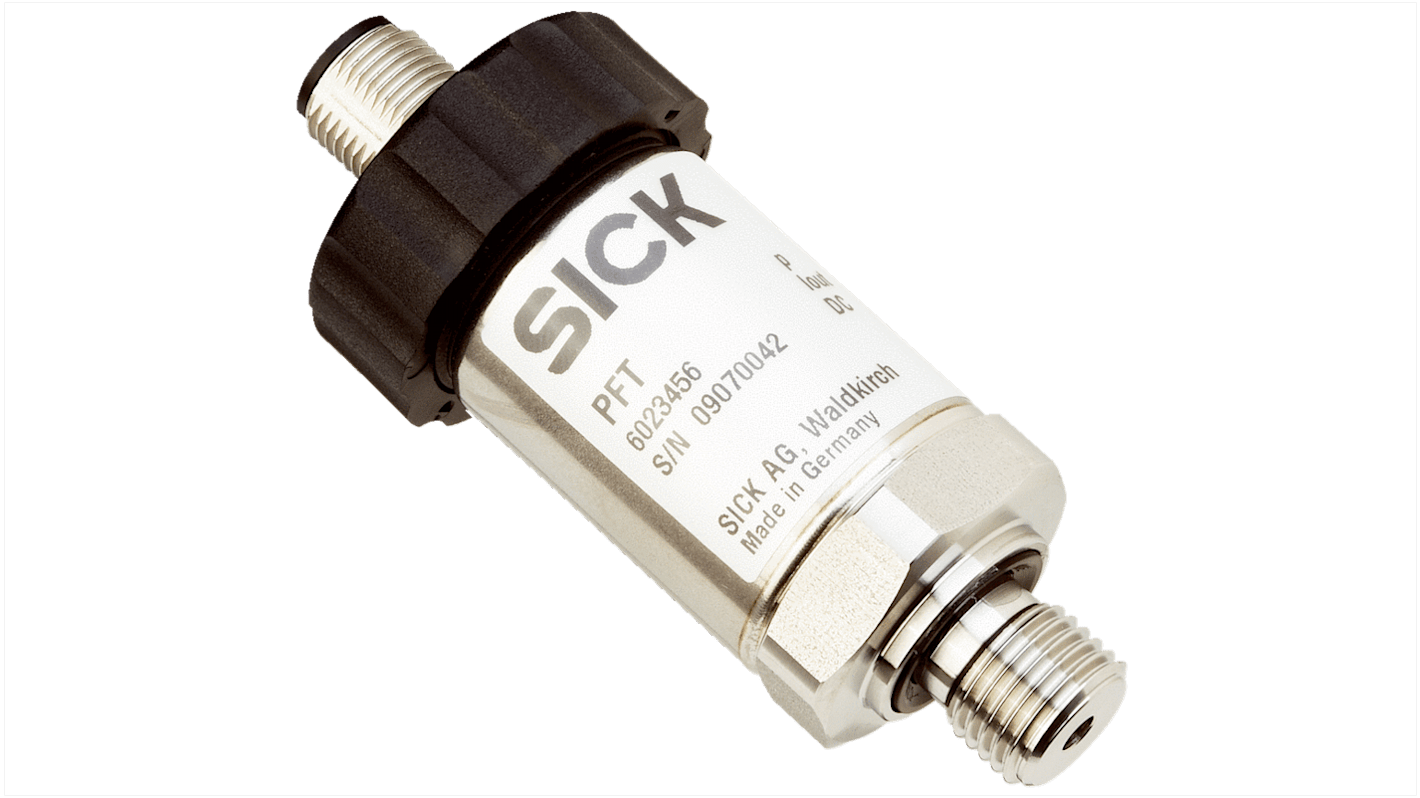

Sick PFT Series Pressure Sensor, 0bar Min, 0.25bar Max, Current Output, Relative Reading

Measuring ranges from 0 mbar ... 100 mbar up to 0 bar ... 600 bar
Relative, absolute, and ± measuring ranges
Also available with flush-mounted membrane
Process temperature up to 150 °C (optional)
Large number of commonly used process connections
High shock and vibration resistance
Accuracy 0.5% or 0.25%
Output signal 4 mA ... 20 mA, 0 V ... 5 V or 0 V ... 10 V
Zero and span adjustable
Round connector M12 x 1, angled plug (DIN 175301-803 A) or cable connection

Reliable and highly accurate measurement technology
Wide application range
No mechanical wear, fatigue-proof, maintenance-free as no moving parts
Simple and cost-saving installation
Optimal solution for individual requirements due to very versatile configurability

The PFT electronic pressure transmitter is used for the precision measurement of pressures in liquids and gases. Distinguished by its high-quality measurement technology, the device is well suited to solve demanding measurement tasks in industrial applications. Designs with extended temperature range, enhanced measurement accuracy, or flush-mounted membrane open up a wide range of applications. Its vast configurability ensures the PFT can perfectly suit the most diverse customer requirements.

Level monitoring
Pressure monitoring of abrasive media in silicon cutting machine
Oxygen injection and consumption of a lance at a basic oxygen furnace
Detection of hydraulic pressure in the hot rolling process
Monitoring of pressure and temperature in red sludge conveyor system
Monitoring of pressure and temperature in crystallization container
