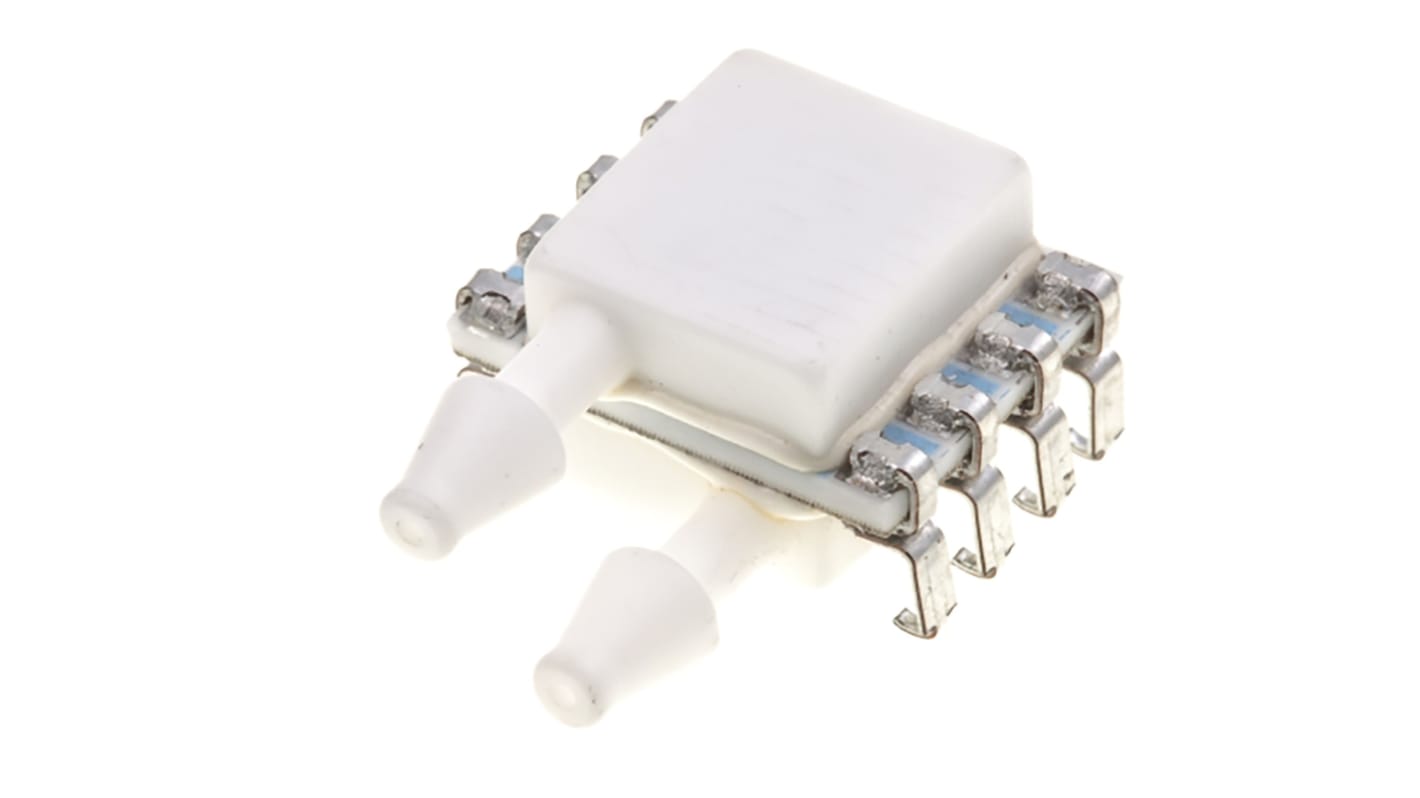

TE Connectivity Pressure TransducerPCB 8 Dual Sideport

View all Pressure Sensor ICs
Bulk discount available

Subtotal (1 tray of 10 units)*

$1,489.39

(exc. GST)

$1,638.33

(inc. GST)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tray*
10 - 10$148.939$1,489.39
20 - 20$121.452$1,214.52
30 +$120.067$1,200.67

*price indicative

RS Stock No.:
268-3667
Mfr. Part No.:
4525DO-DS5AI015DP
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Product Type

Pressure Transducer

Maximum Overload Pressure

300psi

Sensor Type

Differential Pressure Sensor

Mount Type

PCB

Package Type

Dual Sideport

Pin Count

8

Minimum Supply Voltage

3.3V

Maximum Operating Pressure

15 psi

Accuracy

-0.25 to 0.25 % SPAN

Maximum Supply Voltage

5.5V

Maximum Operating Temperature

105°C

Length

12.7mm

Width

17.4 mm

Height

7.2mm

Series

MS4525DO

Standards/Approvals

REACH, RoHS

Minimum Operating Pressure

0psi

Automotive Standard

No

Minimum Operating Temperature

-25°C

COO (Country of Origin):
CN
The TE Connectivity transducer is built using the latest CMOS sensor conditioning circuitry to create a low cost, high performance digital output pressure and temperature transducer designed to meet the strictest requirements from OEM customers. It is fully calibrated and temperature compensated with a total error band of less than 1.0 % over the compensated range. The sensor operates from single supply of either 3.3 or 5 VDC and requires a single external component for proper operation.

PSI Pressure Ranges

PCB Mountable

Digital Output

Barbed Pressure Ports
