TE Connectivity Pressure TransducerPCB 8 Dual Sideport

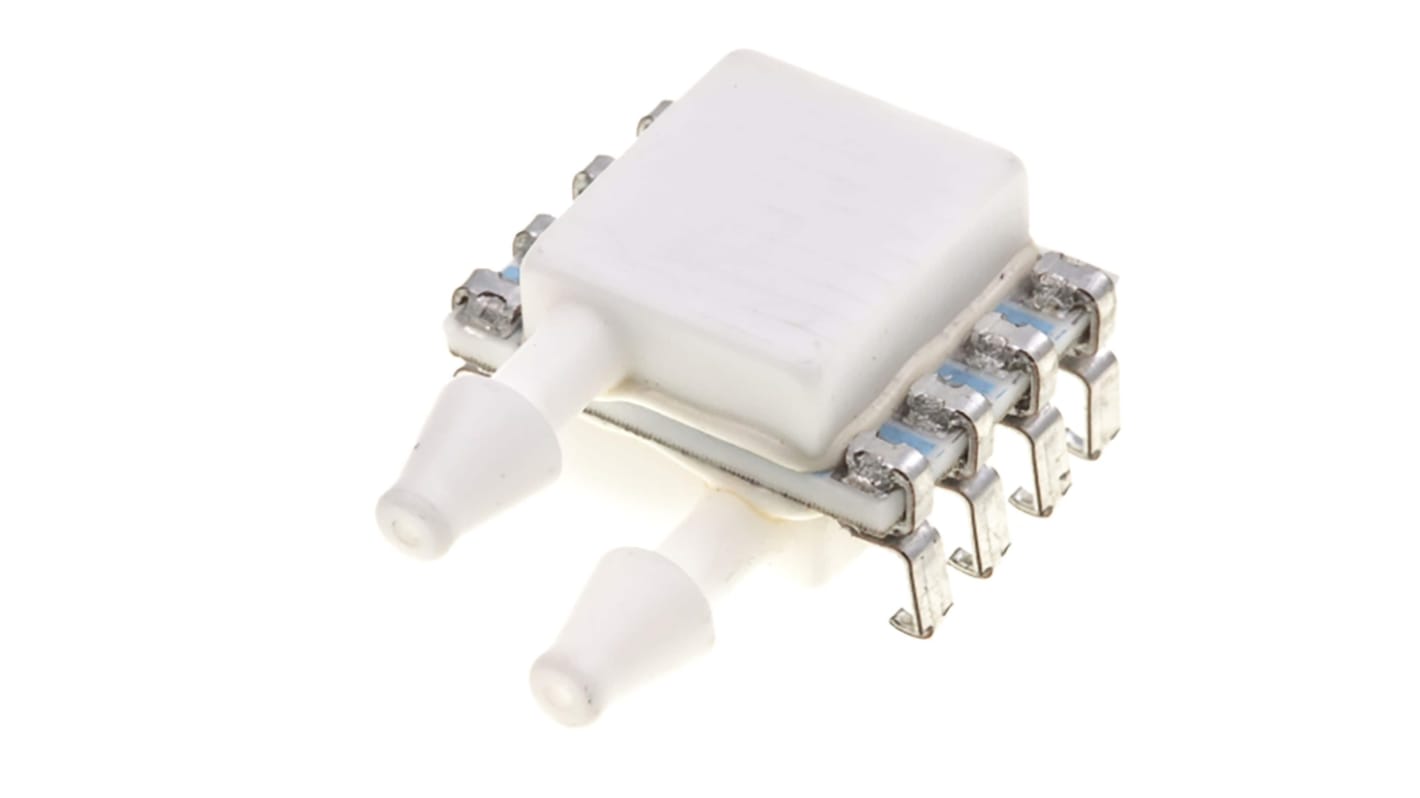

This image is representative of the product range

View all Pressure Sensor ICs
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
268-3665
Mfr. Part No.:
4515DO-DS3BK004DP
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Maximum Overload Pressure

300psi

Product Type

Pressure Transducer

Sensor Type

Differential Pressure Sensor

Mount Type

PCB

Package Type

Dual Sideport

Pin Count

8

Maximum Operating Pressure

4 in/H2O

Maximum Supply Voltage

3.3V

Accuracy

±0.25 %

Maximum Operating Temperature

85°C

Width

17.4 mm

Length

12.7mm

Height

7.2mm

Series

4515DO

Standards/Approvals

RoHS, REACH

Automotive Standard

No

Minimum Operating Temperature

-10°C

COO (Country of Origin):
CN
The TE Connectivity transducer is built using the latest CMOS sensor conditioning circuitry to create a low cost, high performance digital output pressure and temperature transducer designed to meet the strictest requirements from OEM customers. It is fully calibrated and temperature compensated with a total error band of less than 1.0 % over the compensated range. The sensor operates from single supply of either 3.3 or 5 VDC and requires a single external component for proper operation.

Inches H2O Pressure Ranges

PCB Mountable

Digital Output

Barbed Pressure Ports
