TE Connectivity Pressure SensorPCB 8 Dual Sideport
- RS Stock No.:
- 239-1725
- Mfr. Part No.:
- 4525DO-DS3BK001DPL
- Brand:
- TE Connectivity

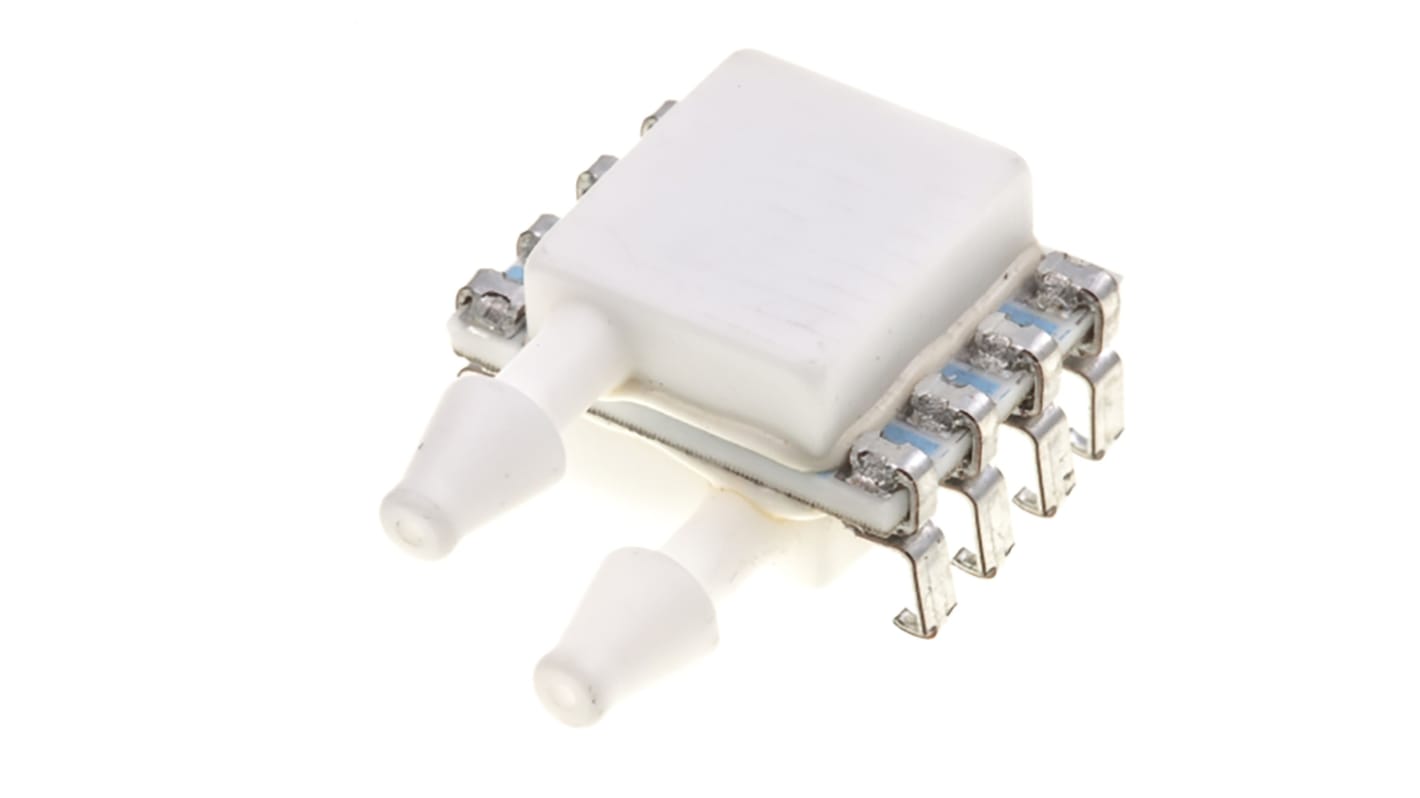

This image is representative of the product range
Bulk discount available
Subtotal (1 unit)*
$114.00
(exc. GST)
$125.40
(inc. GST)
FREE delivery for orders over $60.00 ex GST
Last RS stock
- Final 16 unit(s), ready to ship from another location
Units | Per unit |
|---|---|
| 1 - 4 | $114.00 |
| 5 - 9 | $110.58 |
| 10 + | $107.27 |
*price indicative
- RS Stock No.:
- 239-1725
- Mfr. Part No.:
- 4525DO-DS3BK001DPL
- Brand:
- TE Connectivity
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Maximum Overload Pressure | 300psi | |
| Product Type | Pressure Sensor | |
| Sensor Type | Differential Pressure Sensor | |
| Mount Type | PCB | |
| Package Type | Dual Sideport | |
| Pin Count | 8 | |
| Minimum Supply Voltage | 3.3V | |
| Maximum Operating Pressure | 150 psi | |
| Accuracy | ±0.25 % | |
| Maximum Supply Voltage | 3.3V | |
| Port Type | Dual Side | |
| Maximum Operating Temperature | 105°C | |
| Width | 9.9 mm | |
| Standards/Approvals | EN 61000-4-2 | |
| Length | 12.5mm | |
| Series | MS4525DO | |
| Height | 9.9mm | |
| Minimum Operating Pressure | 1psi | |
| Automotive Standard | No | |
| Minimum Operating Temperature | -25°C | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Maximum Overload Pressure 300psi | ||
Product Type Pressure Sensor | ||
Sensor Type Differential Pressure Sensor | ||
Mount Type PCB | ||
Package Type Dual Sideport | ||
Pin Count 8 | ||
Minimum Supply Voltage 3.3V | ||
Maximum Operating Pressure 150 psi | ||
Accuracy ±0.25 % | ||
Maximum Supply Voltage 3.3V | ||
Port Type Dual Side | ||
Maximum Operating Temperature 105°C | ||
Width 9.9 mm | ||
Standards/Approvals EN 61000-4-2 | ||
Length 12.5mm | ||
Series MS4525DO | ||
Height 9.9mm | ||
Minimum Operating Pressure 1psi | ||
Automotive Standard No | ||
Minimum Operating Temperature -25°C | ||
- COO (Country of Origin):
- CN
The TE Connectivity Pressure Sensor IC is a small, ceramic based, PCB mounted pressure transducer from TE Connectivity. The transducer is built using our proprietary UltraStable™ process and the latest CMOS sensor conditioning circuitry to create a low cost, high performance digital output pressure (14bit) and temperature (11bit) transducer designed to meet the strictest requirements from OEM customers.
PSI Pressure Ranges
PCB Mountable
Digital Output
Barbed Pressure Ports
