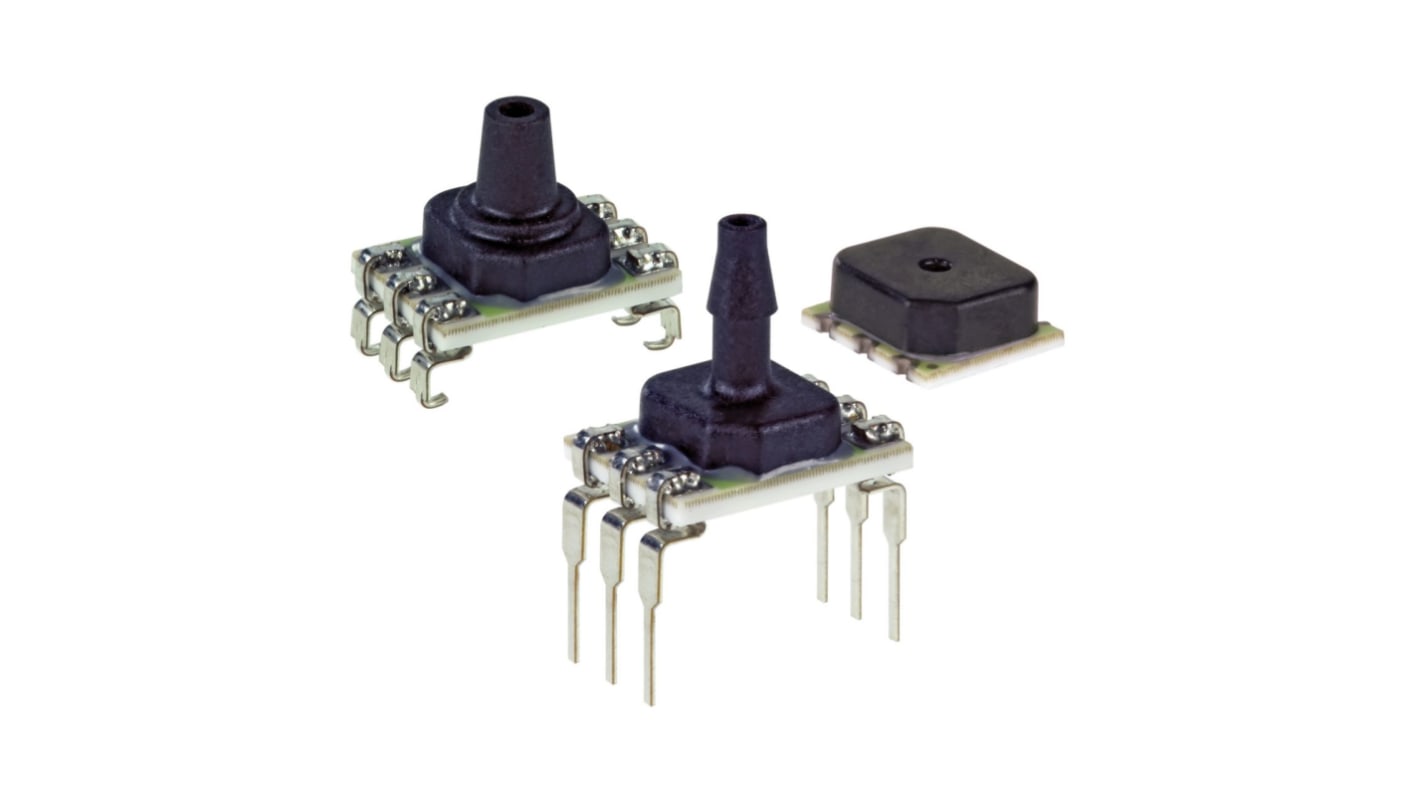

Honeywell ABPMRRV600MG2A3 Piezoresistive Pressure SensorSurface 6 SMT
- RS Stock No.:
- 226-9616
- Mfr. Part No.:
- ABPMRRV600MG2A3
- Brand:
- Honeywell
Bulk discount available
Subtotal (1 unit)*
$73.01
(exc. GST)
$80.31
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- Plus 96 unit(s) shipping from 02 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | $73.01 |
| 10 - 24 | $71.69 |
| 25 - 49 | $70.38 |
| 50 + | $69.10 |
*price indicative
- RS Stock No.:
- 226-9616
- Mfr. Part No.:
- ABPMRRV600MG2A3
- Brand:
- Honeywell
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Honeywell | |
| Sensor Type | Differential Pressure Sensor | |
| Maximum Overload Pressure | 200kPa | |
| Product Type | Piezoresistive Pressure Sensor | |
| Mount Type | Surface | |
| Package Type | SMT | |
| Pin Count | 6 | |
| Minimum Supply Voltage | -0.3V | |
| Maximum Operating Pressure | 60 kPa | |
| Port Type | Dual Radial Barbed | |
| Accuracy | ±0.25 % | |
| Maximum Supply Voltage | 5V | |
| Maximum Operating Temperature | 85°C | |
| Height | 10.63mm | |
| Standards/Approvals | RoHS | |
| Series | ABP | |
| Width | 6.3 mm | |
| Length | 7.3mm | |
| Minimum Operating Pressure | 0mbar | |
| Automotive Standard | No | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand Honeywell | ||
Sensor Type Differential Pressure Sensor | ||
Maximum Overload Pressure 200kPa | ||
Product Type Piezoresistive Pressure Sensor | ||
Mount Type Surface | ||
Package Type SMT | ||
Pin Count 6 | ||
Minimum Supply Voltage -0.3V | ||
Maximum Operating Pressure 60 kPa | ||
Port Type Dual Radial Barbed | ||
Accuracy ±0.25 % | ||
Maximum Supply Voltage 5V | ||
Maximum Operating Temperature 85°C | ||
Height 10.63mm | ||
Standards/Approvals RoHS | ||
Series ABP | ||
Width 6.3 mm | ||
Length 7.3mm | ||
Minimum Operating Pressure 0mbar | ||
Automotive Standard No | ||
Minimum Operating Temperature -40°C | ||
The Honeywell ABP Series are piezoresistive silicon pressure sensors offering a ratiometric analog or digital output for reading pressure over the specified full scale pressure span and temperature range. They are calibrated and temperature compensated for sensor offset, sensitivity, temperature effects and accuracy errors which include non linearity, repeatability and hysteresis using an on board Application Specific Integrated Circuit that is ASIC.
Measures gauge and differential pressures
High burst pressures
REACH and RoHS compliant
Meets moisture Sensitivity Level 1 requirements
