STMicroelectronics MEMS Pressure SensorSurface 10 HLGA-10L

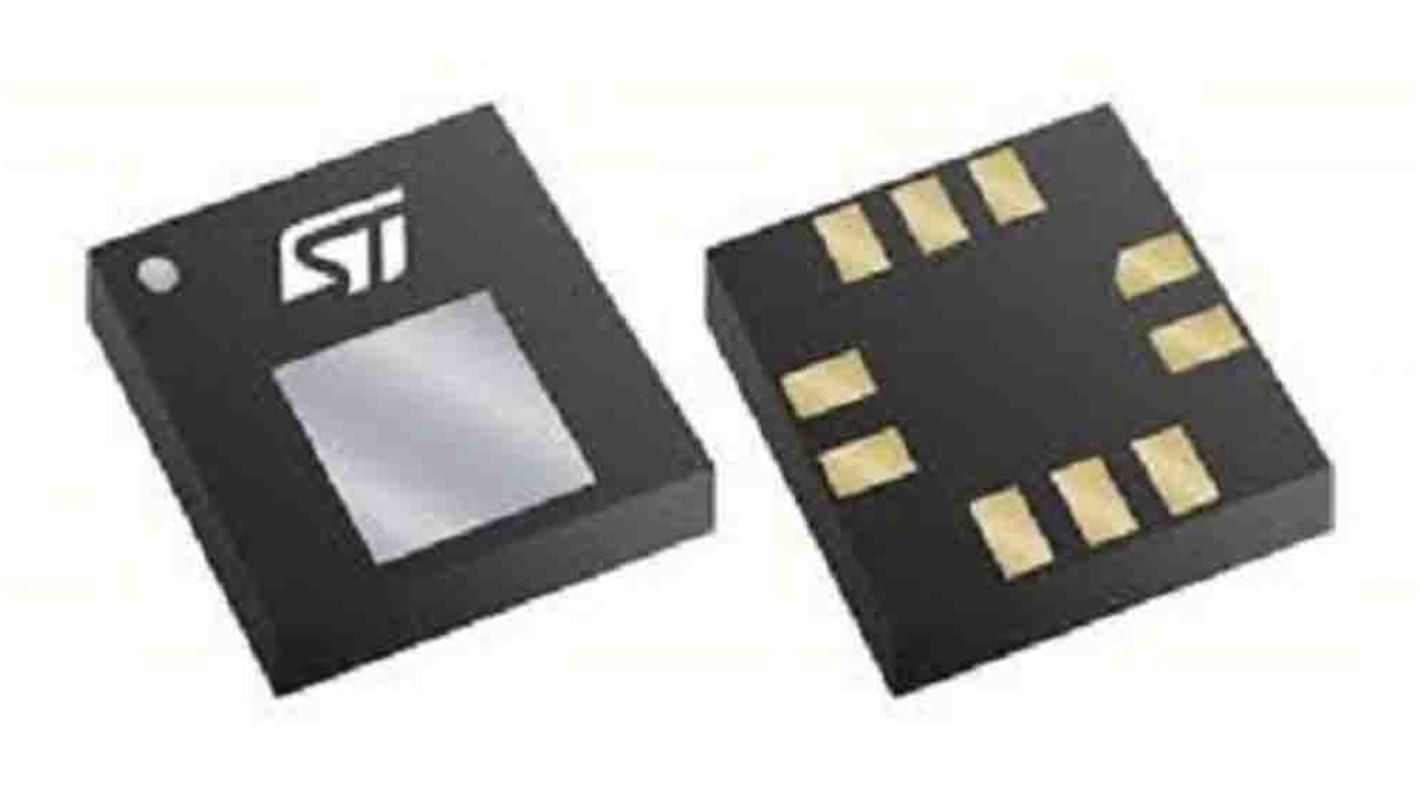

This image is representative of the product range

View all Pressure Sensor ICs
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
212-2086
Mfr. Part No.:
LPS22CHTR
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Sensor Type

MEMS

Product Type

MEMS Pressure Sensor

Maximum Overload Pressure

2000kPa

Mount Type

Surface

Package Type

HLGA-10L

Pin Count

10

Minimum Supply Voltage

1.7V

Maximum Operating Pressure

1.26 kPa

Maximum Supply Voltage

3.6V

Accuracy

±0.1 hPa

Maximum Operating Temperature

125°C

Standards/Approvals

No

Length

2mm

Series

LPS22CHTR

Height

0.8mm

Width

2 mm

Minimum Operating Pressure

260hPa

Automotive Standard

No

Minimum Operating Temperature

-40°C

Minimum Output Voltage

0.2V

MEMS pressure sensor


The STMicroelectronics LPS22CH is an ultra-compact piezo resistive absolute pressure sensor which function as a digital output barometer. The device comprises a sensing element and an IC interface which communicates through I²C or SPI from the sensing element to the application. The LPS22CH is available in a full-mold, holed LGA package (HLGA).

Current consumption down to 4 μA

Low pressure sensor noise 0.75 Pa

Relative pressure accuracy 10 Pa

Embedded temperature compensation

24-bit pressure data output
