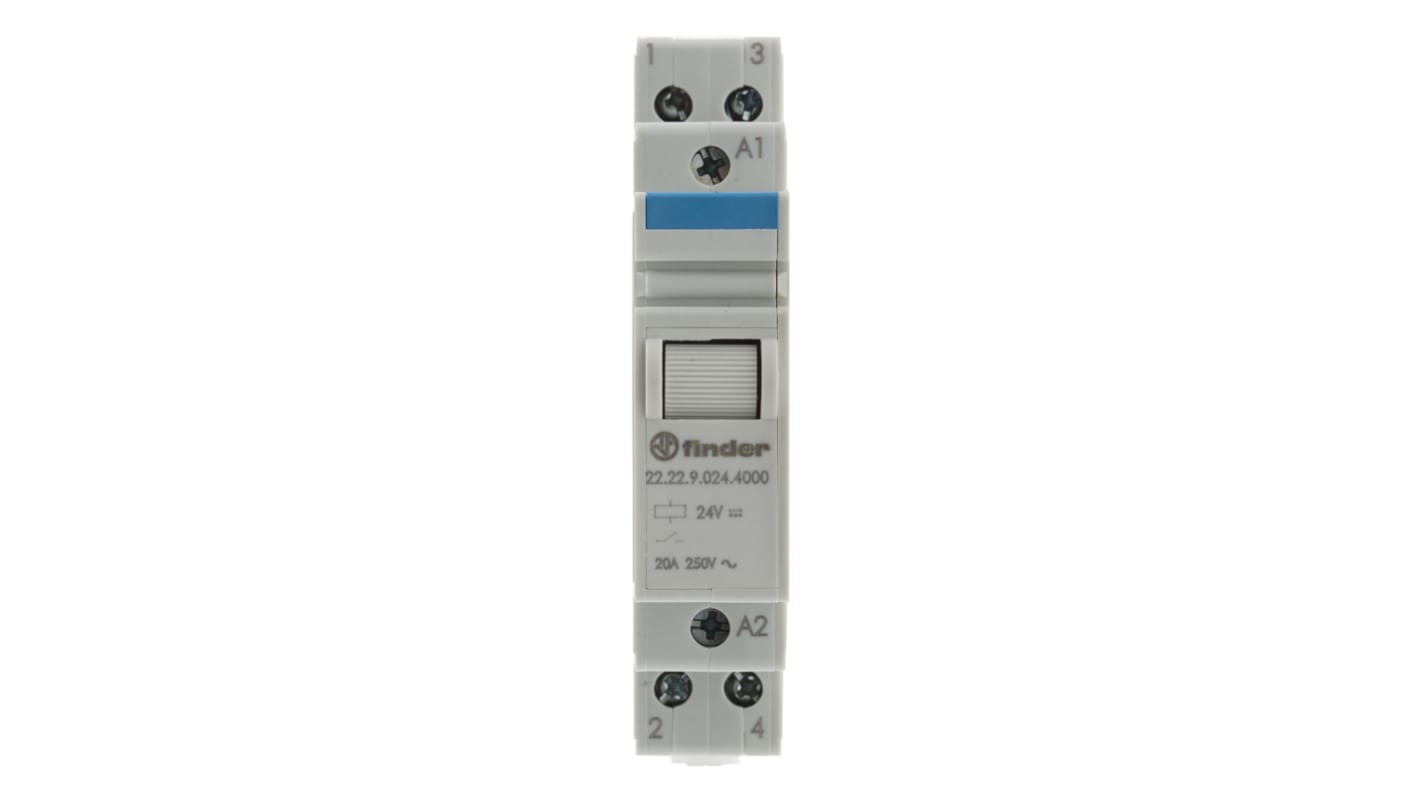

Finder DIN Rail Power Relay, 24V dc Coil, 20A Switching Current, DPST

RS Stock No.:: 511-1149
Mfr. Part No.:: 22.22.9.024.4000
Brand:: Finder

Finder DIN Rail Power Relay, 24V dc Coil, 20A Switching Current, DPST

15 In AU stock for next working day delivery

6 In Global stock for delivery within 5 working day(s)

Added

Price (ex. GST) Each

$62.60

(exc. GST)

$68.86

(inc. GST)

Units	Per unit
1 - 5	$62.60
6 - 11	$61.34
12 +	$59.96

RS Stock No.:: 511-1149
Mfr. Part No.:: 22.22.9.024.4000
Brand:: Finder

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: FR

Product Details

Finder Monostable Din Relay

The Finder 22 series DIN rail mount non-latching relay has contact configuration of DPNO. It is actuated with a 24VDC coil and 20A switching current. This relay is equipped with 20A, 250VAC Cadmium-free contacts rated at 5000VAC1. The relay has a nominal lamp load rating of 1000W for incandescent and 360W for compensated fluorescent.

Features and Benefits

17.4 mm wide
35 mm rail mount
Coil power is 1.25W
Coil resistance is 460ohm
Identification label
Insulation between coil and contacts(1.2/50μ) is 4KV
Manual test button
Mechanical life 500 x103 cycles
Operating temperature ranging between -40°C and 40°C
Screw terminal type

Applications

Air conditioning
Heating
Lighting

Certifications

CE certified
GOST
IP20 rated
EN 60715

Specifications

Attribute	Value
Coil Voltage	24V dc
Contact Configuration	DPST
Mounting Type	DIN Rail
Switching Current	20A
Number of Poles	2
Latching	No
Terminal Type	Screw
Maximum Switching Voltage AC	250V ac
Coil Resistance	460 Ω
Coil Power	1.25W
Height	84mm
Depth	58.4mm
Maximum Operating Temperature	+40°C
Isolation Coil To Contact	4kV
Minimum Operating Temperature	-40°C
Series	22 Series
Contact Material	Silver Alloy
Maximum Switching Power AC	5 kVA
