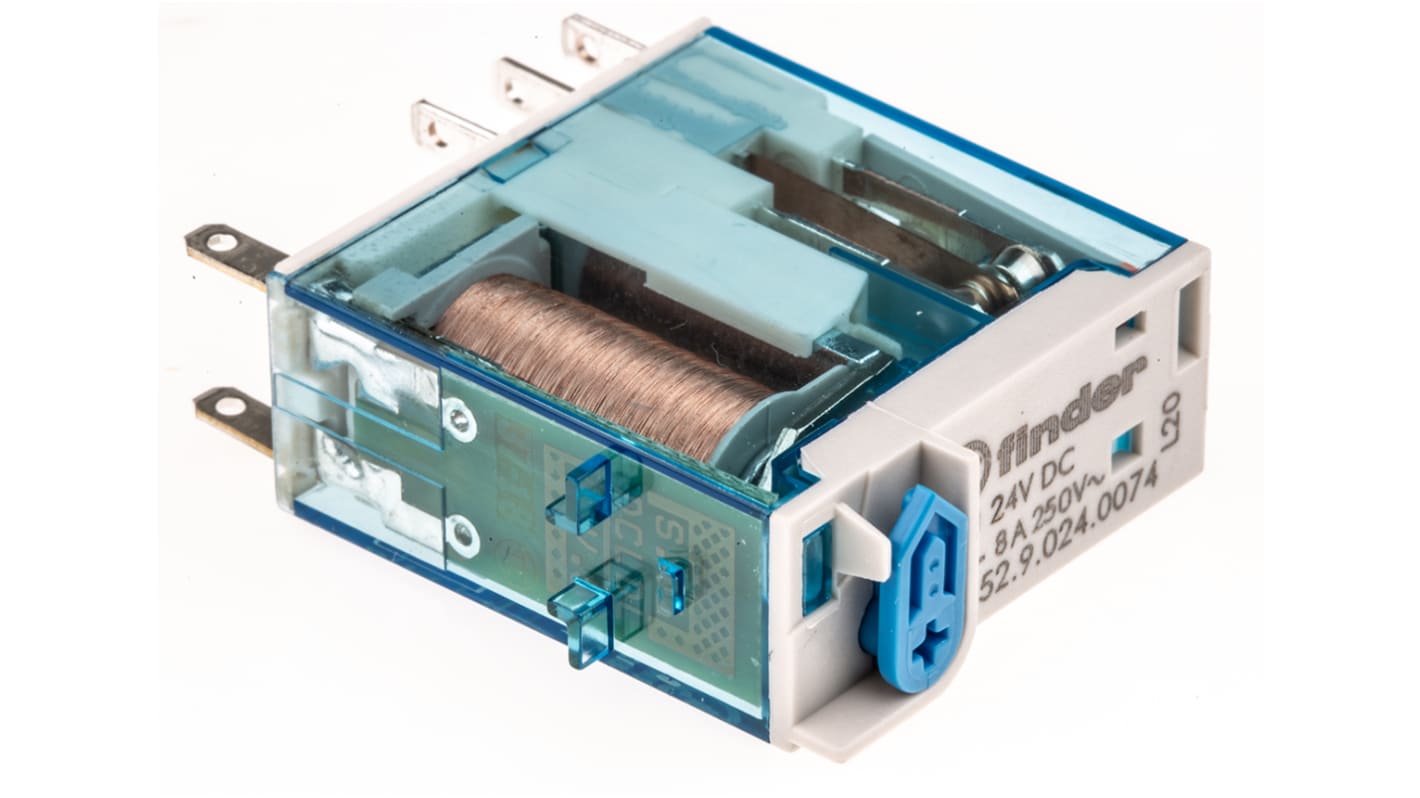

Finder Relay, 24V dc Coil, 8A Switching Current, DPDT

View all Power Relays
Get a bulk buy discount

Add 25 more to save -

View bulk pricing options

Subtotal (1 unit)*

$25.93

(exc. GST)

$28.52

(inc. GST)

Add to Basket
Select or type quantity
In Stock
  • 662 unit(s) ready to ship
  • Plus 1,101 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
Saving
1 - 24$25.93-
25 - 49$25.68-
50 +$25.192%

*price indicative

RS Stock No.:
534-5336
Distrelec Article No.:
304-00-911
Mfr. Part No.:
46.52.9.024.0074
Brand:
Finder
Find similar products by selecting one or more attributes.
Select all

Brand

Finder

Product Type

Relay

Coil Voltage

24V dc

Contact Configuration

DPDT

Series

46

Terminal Type

PCB Pin

Switching Current

8A

Switching AC Voltage

440V ac

Switching Power

2kVA

Minimum Operating Temperature

-40°C

Coil Resistance

1.2kΩ

Maximum Operating Temperature

70°C

Width

12.4mm

Height

32.8mm

Standards/Approvals

EAC, CE

Length

29mm

Coil Power

500mW

Contact Material

Silver Alloy

Finder Series 46 Power Relay, DPDT Contact Configuration, 24V DC Coil Voltage - 46.52.9.024.0074


This power relay is designed for effective switching in automation and control applications. Featuring a coil voltage of 24V DC and a double pole double throw (DPDT) configuration, it is compatible with various electrical systems. Its performance characteristics make it an essential component in industrial environments requiring durability and precision.

Features & Benefits


• 24V DC coil allows for versatile operation across different systems

• DPDT configuration facilitates intricate switching arrangements

• Maximum switching voltage of 440V AC provides system flexibility

• Silver alloy contacts enhance conductivity and durability

• Screw terminal connections ensure secure wiring

• High insulation resistance of 6kV promotes safe operation

Applications


• Utilised for automation in control panels

• Suitable for the operation of elevators and lifts

• Designed for use in bottling plants

• Integrated into systems for road and tunnel lighting

• Applied in hoists and cranes to ensure safe lifting operations

What is the maximum current this can handle?


It supports a switching current of 8A, making it suitable for numerous industrial applications.

How does coil resistance impact performance?


The coil resistance of 1200Ω ensures efficient operation at the specified coil voltage.

Can it be mounted directly onto a PCB?


Yes, this relay can be connected directly via PCB mount for convenient installation.

What is the suitability of this relay for high voltage applications?


It is designed for a maximum switching voltage of 440V AC, making it suitable for high voltage tasks.

Is this relay compatible with automation systems?


Yes, its design makes it ideal for integration into various automation systems and industrial machinery.

Approvals

UL recognised
