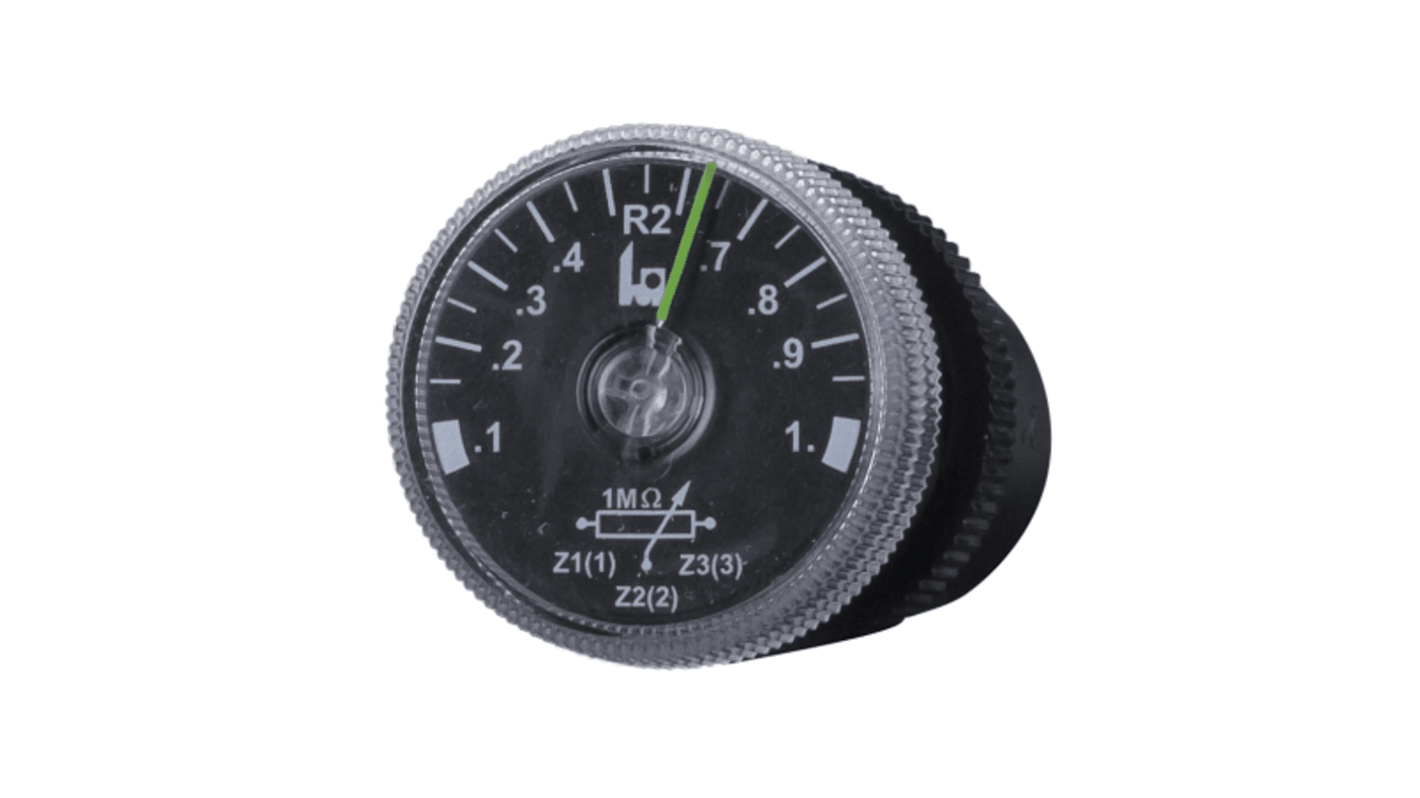

1MΩ Rotary Potentiometer DIN Rail

The Tele remote potentiometer is designed for front panel mounting, allowing adjustment of time values from a distance. It features a self-extinguishing plastic housing with an IP rating of IP64 on the front side, ensuring protection against dust and water ingress. The front panel mounting diameter is 22.5mm, and it can be mounted in any position. The shockproof terminal connection, compliant with VBG 4 standards, has an IP rating of IP10.

Maximum tightening torque 1 Nm
Terminal capacity as it accommodates 1 x 0.5 to 1.0 mm² cables with or without multicore cable ends
