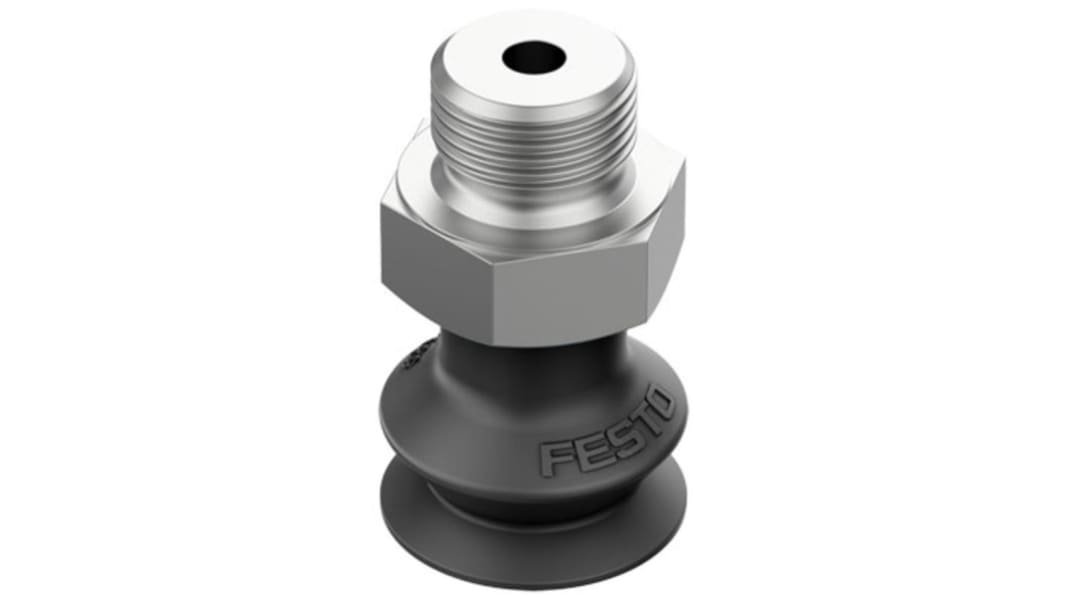

Festo 15mm Bellows NBR Suction Cup VASB-15-1/8-NBR
- RS Stock No.:
- 203-8218
- Mfr. Part No.:
- VASB-15-1/8-NBR
- Brand:
- Festo
10 In Global stock for delivery within 10 working day(s)
Price (ex. GST) Each
$30.02
(exc. GST)
$33.02
(inc. GST)
Units | Per unit |
---|---|
1 + | $30.02 |
- RS Stock No.:
- 203-8218
- Mfr. Part No.:
- VASB-15-1/8-NBR
- Brand:
- Festo
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Festo Bellows NBR Suction Cup, 15 mm, 7.9 N Holding Force - VASB Series - VASB-15-1/8-NBR
Do you need a safe and secure way to lift, hold or transport heavy, awkward or delicate items? Use these bellows suction cups from Festo. They're ideal for handling domed, round and pliable workpieces without causing damage. They attach with minimum pressure and can absorb any alignment problems or uneven surfaces. The nitrile butadiene rubber (NBR) cup material is hardwearing and resistant to oil and chemicals, meaning you can be sure it's long-lasting. These suction cups have a designated holding force of 7.9 Newtons (N) and a diameter of 15 mm, so they can pick up heavy loads.
• Effective suction diameter of 12 mm
• Bellows pad type
• Ambient temperature range of -20°C to +80°C
• G 1/8 mounting thread
• G 1/8 vacuum connection
• Black in colour
• Bellows pad type
• Ambient temperature range of -20°C to +80°C
• G 1/8 mounting thread
• G 1/8 vacuum connection
• Black in colour
Range Information
• Festo's VASB series suction cups offer outstanding functionality and quality
• A wide range to suit applications with various temperature ranges and workpiece surfaces
• A choice of 11 suction cup diameters
• A choice of round or bellows suction cup design with 1.5 convolutions
• Available in three materials (nitrile rubber, polyurethane and silicone) for use in a wide variety of applications
• A wide range to suit applications with various temperature ranges and workpiece surfaces
• A choice of 11 suction cup diameters
• A choice of round or bellows suction cup design with 1.5 convolutions
• Available in three materials (nitrile rubber, polyurethane and silicone) for use in a wide variety of applications
The Festo's suction cup is used with sealing ring which has nominal size 4 mm with suction cup diameter is 100 mm. It has position of connection on top and assembled in any position.
Ambient temperature -40 to 200 °C
Specifications
Attribute | Value |
---|---|
Pad Diameter | 15mm |
Pad Type | Bellows |
Pad Material | NBR |
Manufacturer Series | VASB |
Holding Force | 7.9N |
