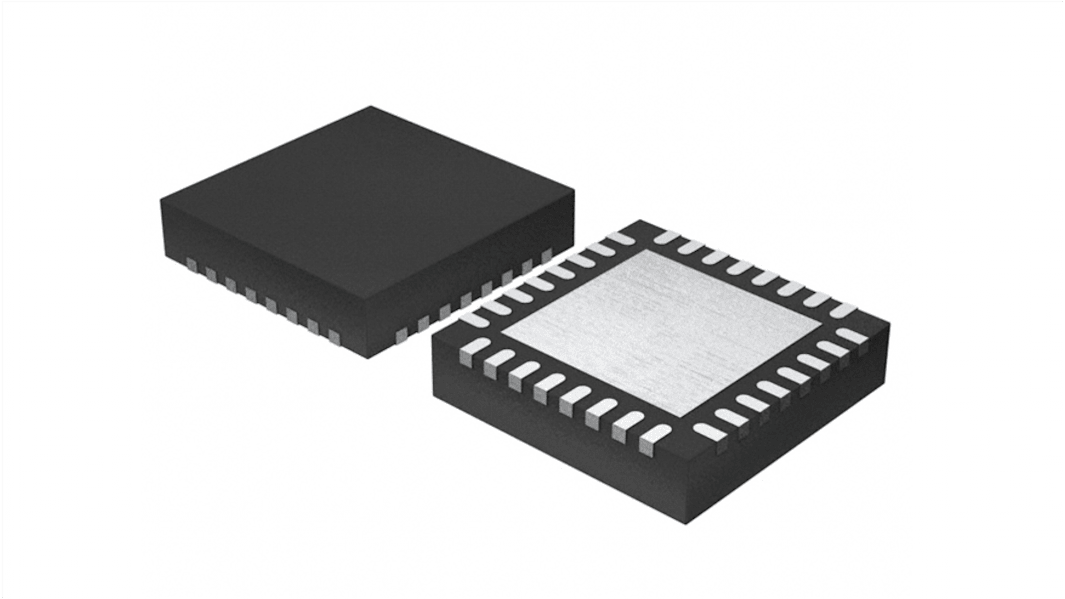

ROHM BM64070MUV-E2, BLDC Motor Driver IC
- RS Stock No.:
- 246-3849
- Mfr. Part No.:
- BM64070MUV-E2
- Brand:
- ROHM
50 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$10.19
(exc. GST)
$11.21
(inc. GST)
| Units | Per unit |
| 1 - 49 | $10.19 |
| 50 - 99 | $9.94 |
| 100 - 249 | $9.70 |
| 250 - 999 | $9.46 |
| 1000 + | $9.23 |
- RS Stock No.:
- 246-3849
- Mfr. Part No.:
- BM64070MUV-E2
- Brand:
- ROHM
Technical data sheets
Legislation and Compliance
Product Details
The ROHM BM series is pre-driver IC which is used for three-phase brushless motor driver which operated at input voltage range of 28 V to 77 V and available in VQFN040V6060 package. This pre driver IC used in fan motor and other general consumer equipment applications.
Speed control on PWM duty input
External output FET Nch+Nch
Built-in boost voltage circuit
Sensor-less sine wave drive
Automatic lead angle control
Dead time setting
Current limit function
Power save function
Direction of rotation setting
Short brake cont
External output FET Nch+Nch
Built-in boost voltage circuit
Sensor-less sine wave drive
Automatic lead angle control
Dead time setting
Current limit function
Power save function
Direction of rotation setting
Short brake cont
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Motor Type | BLDC |
| Output Configuration | PWM |
| Configuration | 3 Phase |
| Maximum Output Current | 20mA |
| Maximum Supply Voltage | 77 V |
